Epson EH-TW9200 User Manual

Introduction
9

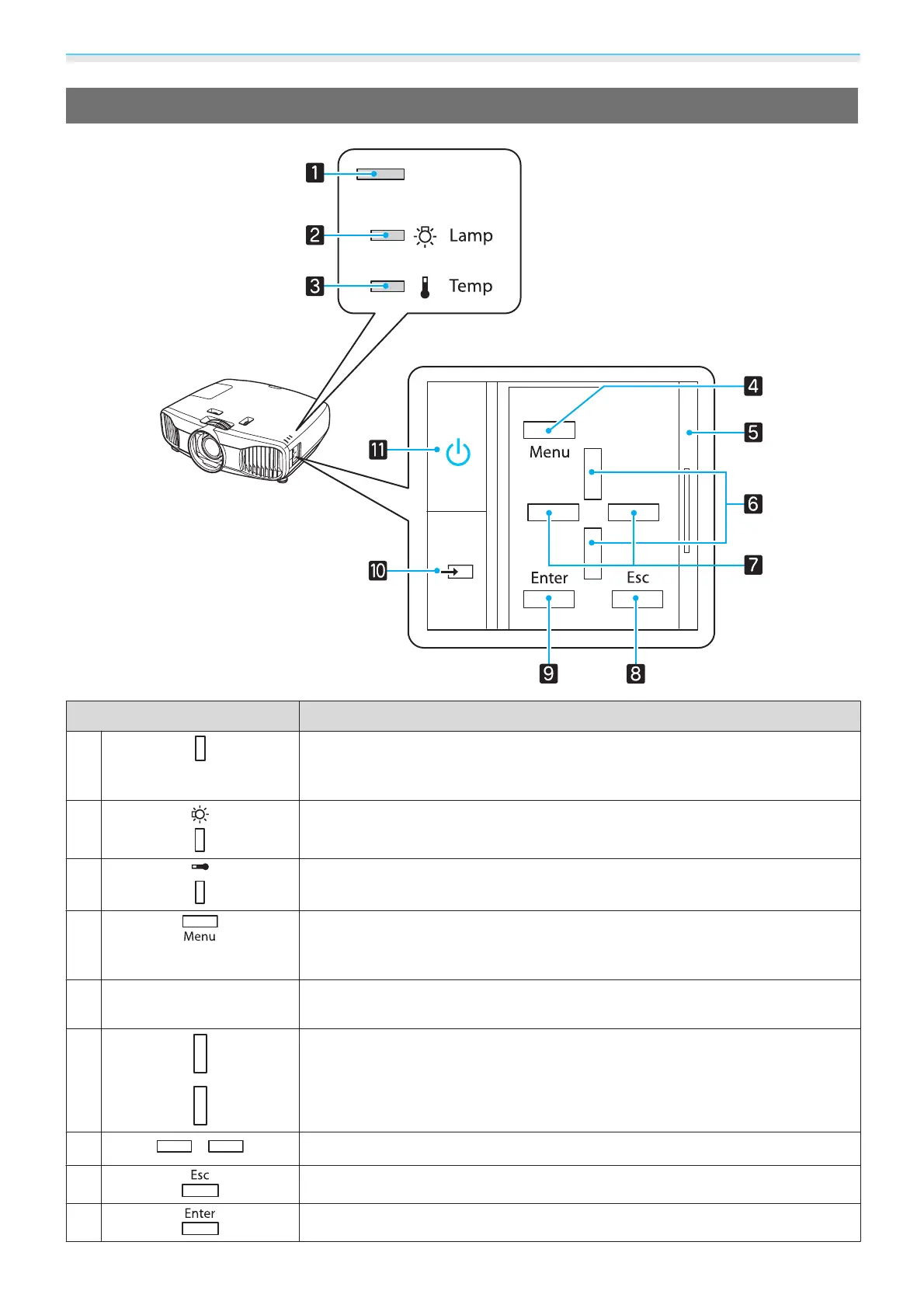

Control Panel
Buttons/Indicators Function
a
Flashes to indicate warm-up in progress or cool-down in progress. Shows the
projector's status through a combination of other indicators lit and flashing.
s p.77
b
Flashes orange when it is time to replace the lamp. Shows the projector's errors
through a combination of other indicators lit and flashing.
s p.77
c
Flashes orange if the internal temperature is too high. Shows the projector's
errors through a combination of other indicators lit and flashing.
s p.77
d
Displays and closes the Configuration menu.
On the Configuration menu, you can make adjustments and settings for Signal,
Image, Input Signal, and so on.
s p.65
e
Control panel cover
Cover for the control panel. When you want to use the control panel, grip the
knob and slide the cover open.
f
Selects the adjustment value for the keystone correction and for menu items.
s p.29
g
Selects adjustment values for menu items. s p.65
h
Returns to the previous menu level when a menu is displayed. s p.65
i
Selects functions and settings when a menu is displayed. s p.65

Epson EH-TW9200 Specifications

Display

projection system	3LCD Technology, RGB liquid crystal shutter
resolution	Full HD 1080p, 1920 x 1080, 16:9
color light output	2, 400 lumen
white light output	2, 400 lumen
contrast ratio	600, 000 : 1

Optical

projection ratio	1.34 - 2.87:1
zoom factor	1 - 2.1
projection size	30 inches - 300 inches
projection distance wide	0.9 m - 9 m (100 inch screen)
projection distance tele	1.9 m - 19.2 m (100 inch screen)
focal distance	22.5 mm - 47.2 mm

Power and Energy

lamp power	230 W, 176 W (economy mode)
energy use	334 W, 270 W (economy)
lamp durability	4, 000 h, 5, 000 h (economy mode)

Weight and Dimensions

product dimensions	466 x 140 x 395 mm (Width x Depth x Height)
product weight	8.4 kg
carton dimensions	575 x 510 x 350 mm
