Epson EH-TW9200 User Manual

Basic Operations
27

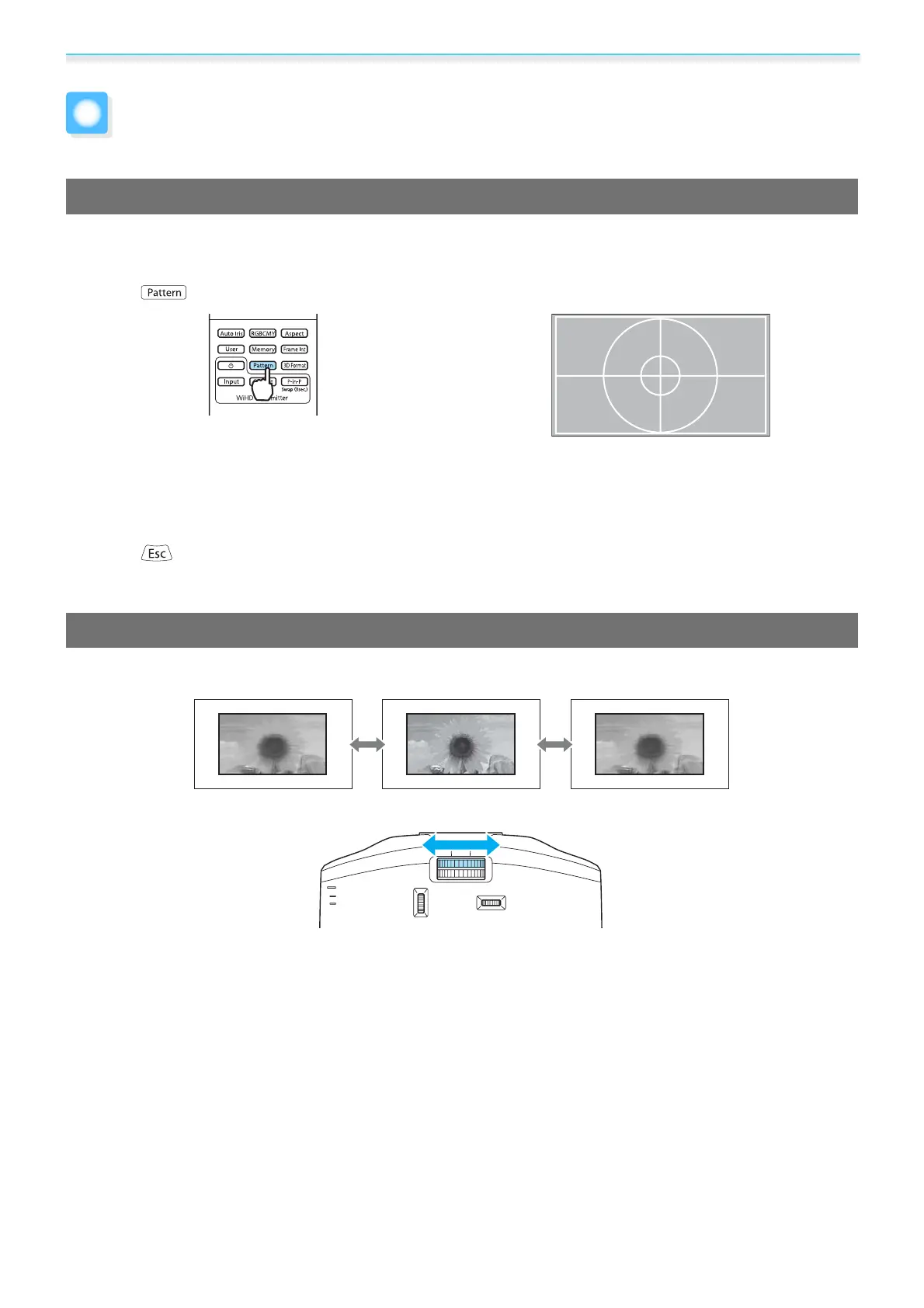

Adjusting the Projected Screen
Displaying the Test Pattern
When adjusting the zoom/focus or the projection position just after setting up the projector, you can display
a test pattern instead of connecting video equipment.
Press the
button on the remote control to display the test pattern.
You can adjust the display position and so on by using this test pattern.
For EH-TW9200W/EH-TW9200, you can also select patterns that display R (red), G (green), and B (blue)
individually, as well as the pattern for adjusting the display position. You can use it as a pattern to perform
color adjustment when an image signal is being input.
Press the
button to end the test pattern display.
For EH-TW9200W/EH-TW9200, you can also end by selecting Exit.
Adjusting the Focus
Turn the focus ring to adjust the focus.

Epson EH-TW9200 Specifications

Display

projection system	3LCD Technology, RGB liquid crystal shutter
resolution	Full HD 1080p, 1920 x 1080, 16:9
color light output	2, 400 lumen
white light output	2, 400 lumen
contrast ratio	600, 000 : 1

Optical

projection ratio	1.34 - 2.87:1
zoom factor	1 - 2.1
projection size	30 inches - 300 inches
projection distance wide	0.9 m - 9 m (100 inch screen)
projection distance tele	1.9 m - 19.2 m (100 inch screen)
focal distance	22.5 mm - 47.2 mm

Power and Energy

lamp power	230 W, 176 W (economy mode)
energy use	334 W, 270 W (economy)
lamp durability	4, 000 h, 5, 000 h (economy mode)

Weight and Dimensions

product dimensions	466 x 140 x 395 mm (Width x Depth x Height)
product weight	8.4 kg
carton dimensions	575 x 510 x 350 mm
