Part Names and Functions
User’s Guide

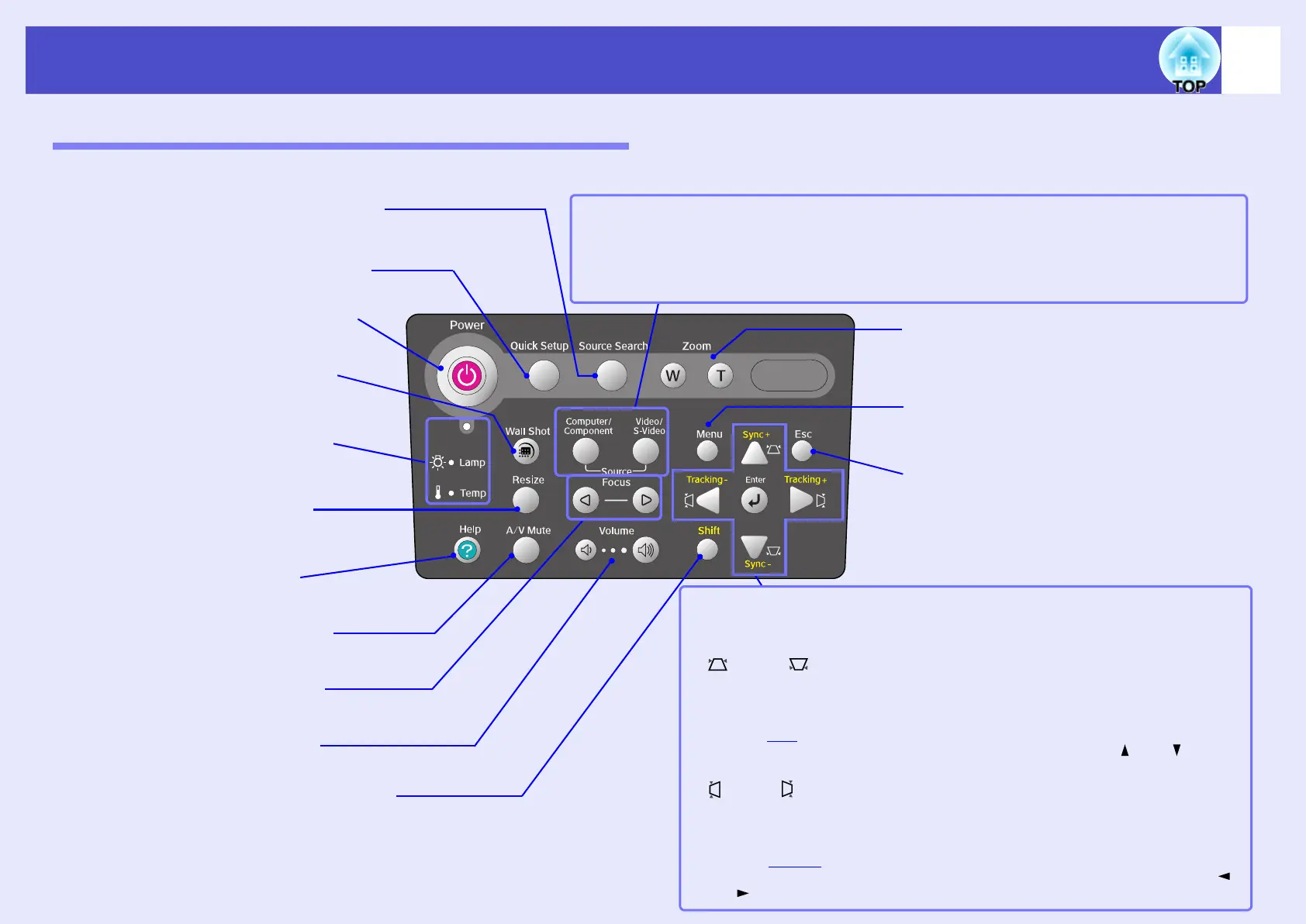

Control Panel
Buttons with no description are the same as the remote control buttons. Refer to the remote control descriptions for details.
• [Enter] button sp.74, p.88, p.94
Operates in the same way as the [Enter] button on the remote control when a
configuration menu or help screen is displayed.
• [ ] and [ ] buttons sp.70, p.72, p.76, p.88, p.94
Use these buttons for vertical keystone correction and correction using Quick
Corner.
If you press one of these buttons while holding down the [Shift] button, you can
adjust the sync
g of computer analogue images.When pressed while a configuration
menu or help menu is being displayed, these buttons function as [ ] and [ ] (up and
down) buttons for selecting items in the menu.
• [ ] and [ ] buttons sp.70, p.72, p.75, p.88
Use these buttons for horizontal keystone correction and correction using Quick
Corner.
If you press one of these buttons while holding down the [Shift] button, you can
adjust the tracking
g of computer analogue images.When pressed while a
configuration menu or help menu is being displayed, these buttons function as [ ]
and [ ] (left and right) buttons for selecting items in the menu.
• [Menu] button sp.87
• [Shift] button sp.64, p.75, p.76
This button has no function by itself, but is used
when adjusting the sync and tracking and when
using the resize function.
• [Resize] button sp.62
• [Volume] button sp.46
• [A/V Mute] button sp.55
• [Esc] button sp.88, p.94
Operates in the same way as the [Esc] button
on the remote control.
• [Power] button sp.34, p.44
• [Wall Shot] button sp.53
• [Source] buttons sp.37
[Computer/Component]button: The input source changes in the order of [Computer1/Component]
port → [Computer2/Component] port → EasyMP (EMP-835 only) each time this button is pressed.
[Video/S-Video] button: The input source changes in the order of [S-Video] port → [Video] port
each time this button is pressed.
• [Help] button sp.94
• [Focus] buttons sp.68
• Status indicators sp.96
• [Quick Setup] button sp.40
• [Source Search] button sp.35
Operates in the same way as the [Search] button on the remote control.
• [Zoom] buttons sp.40
