Part Names and Functions
User’s Guide

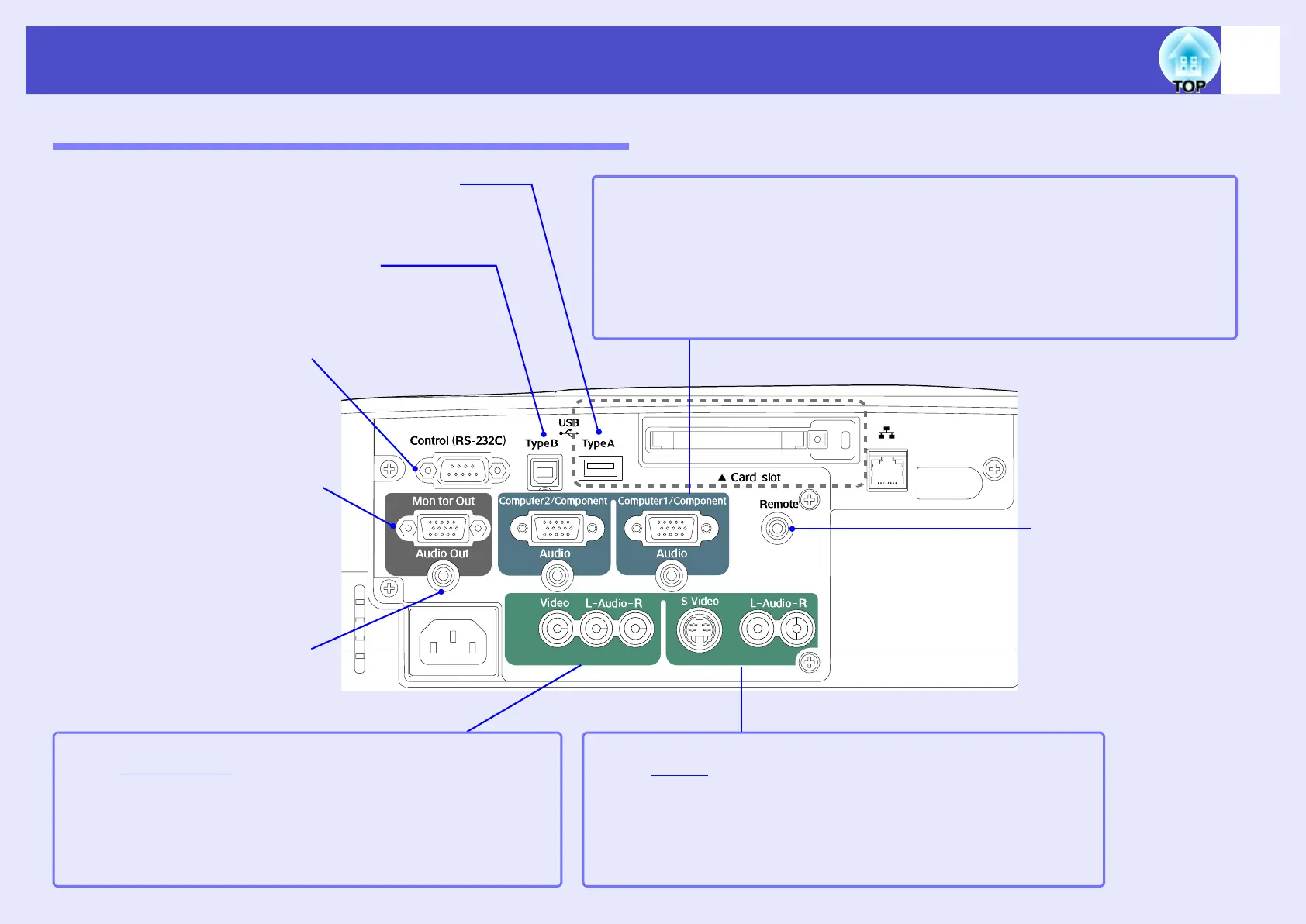

Input/Output Ports
• [USB TypeB] port sp.21, p.133
For an USB cable connection to a computer in order to use
the wireless mouse function when the computer and the
projector are connected using a computer cable.
• [Video] port sp.25
Inputs composite videog signals from a video source.
• [Audio] ports (for [Video] port) sp.28
Input audio signals from the source that is connected to the [Video]
port.
Also input audio signals from the equipment that is connected to the
[Computer2/Component] port if the signal is component video signals.
• [Audio Out] port sp.29
Outputs the audio signals from the
selected source to external speakers.
• [Remote] port
sp.128
Connect the optional
remote control cable set to
input signals from the
remote control.
• [Monitor Out] port sp.23
Outputs analogue-RGB images from a
computer connected by a computer
cable, and RGB-video images from a
video equipment to an external
monitor.
Doesn't support video images and
EasyMP(EMP-835 only).
• [Control (RS-232C)] port
sp.132
Connects the projector to a computer
using an RS-232C cable. This port is
for control use and should not be used
by the customer.
• [USB TypeA] port (EMP-835 only) sp.30
Connects a digital camera or USB support hard disc/
memory to project their image/movie files or scenarios.
• [Computer1/Component] port
[Computer2/Component] port sp.20, p.26, p.27
Input analogue-RGB image signals from a computer and RGB-video signals, component
video signals from video equipment.
• [Audio] port (for [Computer1 (or 2)/Component] port) s p.28
Input audio signals from the equipment that is connected to the [Computer1 (or 2)/
Component] port directly above.
• [S-Video] port sp.26
Inputs S-Videog signals from a video source.
• [Audio] ports (for [S-Video] port) sp.28
Input audio signals from the source that is connected to the [S-Video]
port.
Also input audio signals from the equipment that is connected to the
[Computer1/Component] port if the signal is component video signals.
