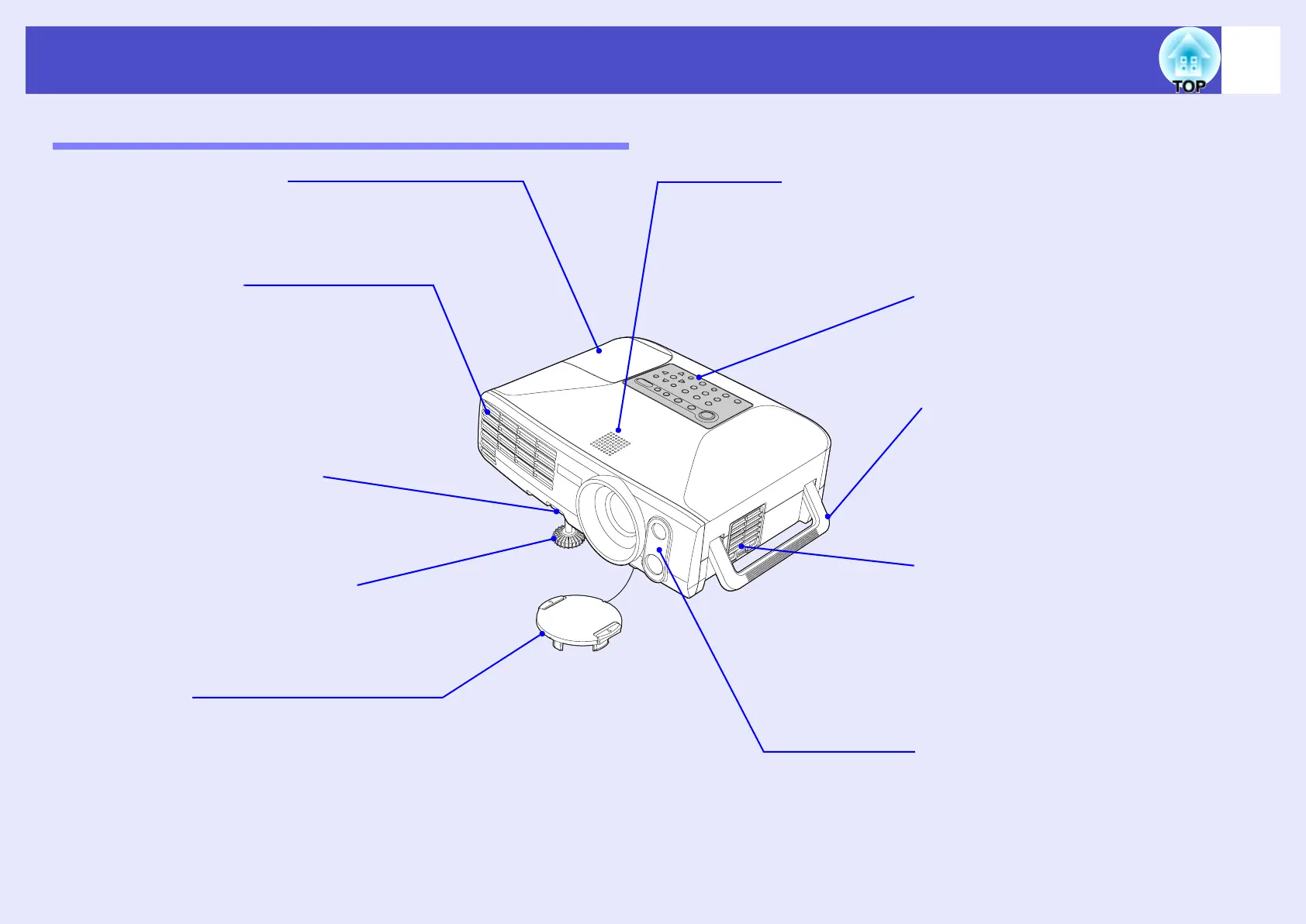

Part Names and Functions
Front/Top/Side
• Front adjustable foot sp.39
Extend and retract to adjust the projection angle
when the projector is placed on a surface such
as a shelf.
• Air filter (Air intake vent)
sp.119, p.124
Prevents dust and other foreign particles from
being drawn into the projector. Clean the air
filter periodically.
• Handle
Use this handle when carrying the
projector.
• Foot adjust lever sp.39
Pull out the foot adjust lever to extend and
retract the front foot.
• Control panel sp.9
• Remote control light-receiving
area/sensor sp.12
This receives remote control signals, and
also detects the state of the projection area
for Auto Quick Corner and Wall Shot
operations.
• Air exhaust vent
Do not place objects that may become
warped or otherwise affected by heat near the
air exhaust vent and do not bring your face or
hands near the air exhaust vent while
projection is in progress.
Caution
• Lens cover
Attach when not using the projector in order to prevent
the lens from becoming dirty or damaged.
• Lamp cover sp.121
Open this cover when replacing the
lamp inside the projector.
• Speaker
