7
Part Names and Functions
User’s Guide

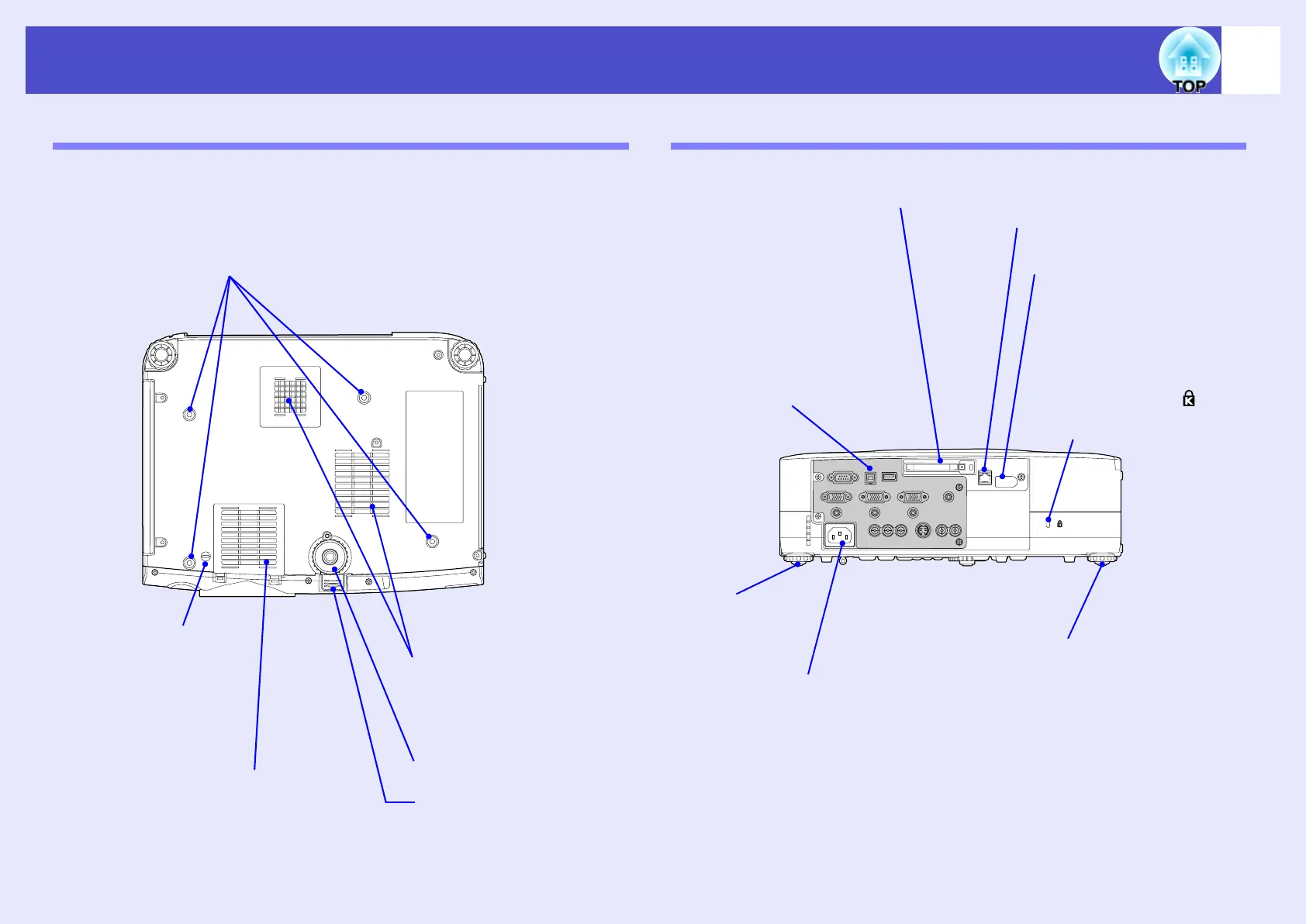

Base Rear
• Suspension bracket fixing points
(4 points) sp.14, p.128
Connect an optional ceiling mount here when
suspending the projector from the ceiling.
• Air filter sp.119, p.124
Prevent dust and other foreign
particles from being drawn into the
projector. Clean the air filter
periodically.
• Air intake vents
sp.119
Clean the air intake vents
periodically.
• Lens cover
cord stopper
Remove when installing
the projector on a ceiling.
Grasp the stopper and
pull it to remove the lens
cover.
• Front adjustable foot
• Foot adjust lever
• Remote control light-
receiving area
sp.12
Receives signals from the
remote control.
• Power inlet sp.33
Connect the power cable here.
• Security lock ( )
sp.130
• Rear adjustable foot
sp.39
Extend and retract to adjust the
projection angle when the
projector is placed on a surface
such as a shelf.
• Rear
adjustable
foot sp.39
• Card slot (EMP-835 only)
sp.16
Insert a wireless LAN card or
memory card in here when
using EasyMP.
• Network port sp.24
Connect a network cable here.
• Input/output ports
sp.10
Use to connect the projector to a
variety of equipment such as a
computer or video equipment.
To Next Page
