Epson ET-2870 Series - Part Names and Functions

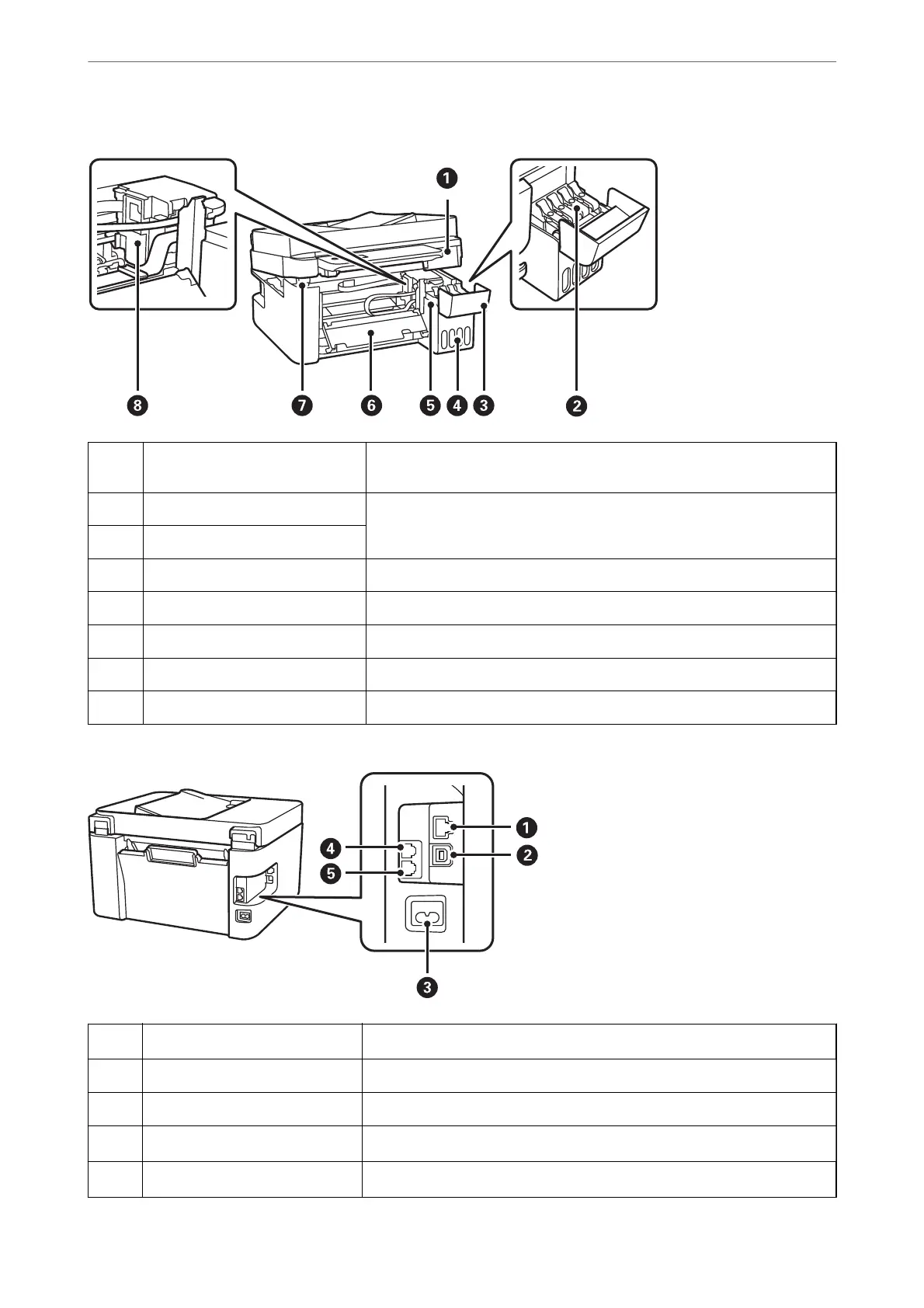

Part Names and Functions
Only for ET-4800 Series/L5310 Series/L5290 Series
A
ADF (Automatic Document
Feeder) cover
Open when removing jammed originals in the ADF.
B
ADF input tray Feeds originals automatically.
C
ADF edge guide Feeds originals straight into the printer. Slide to the edge of the originals.
D
ADF output tray Holds originals ejected from the ADF.
Only for ET-4800 Series/L5310 Series/L5290 Series
A
Rear paper feeder Loads paper.
B
Paper support Supports loaded paper.
C
Edge guide Feeds the paper straight into the printer. Slide to the edges of the paper.
D
Output tray Holds the ejected paper.
E
Stopper Position the stopper to prevent print outs from falling from the output tray.
Only for ET-2870 Series/ET-2820 Series/L3280 Series/L3260 Series
Part Names and Functions > Part Names and Functions
19
