6. Detach the front section of the printer cover.
7.

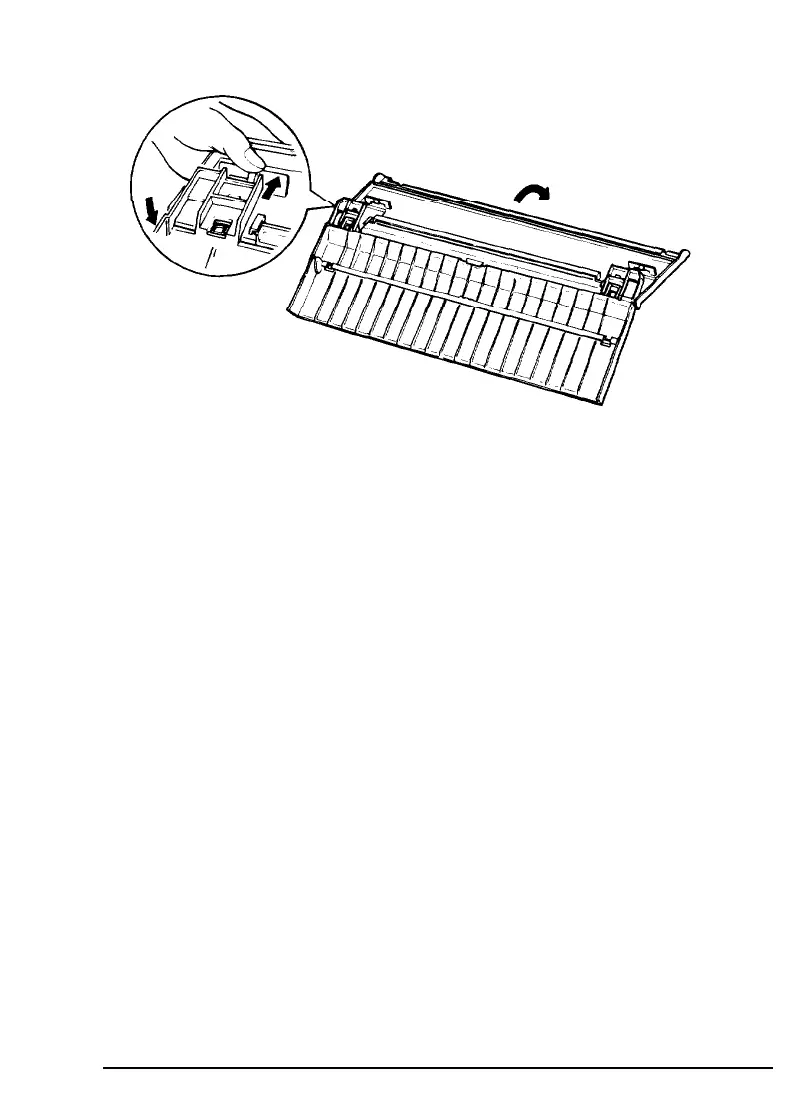

After raising the cut sheet feeder’s paper path guide, attach the front
cover to the printer. Then close the paper path guide.
Setting the sheet feeder mode
To allow your printer to use the cut sheet feeder you need to set DIP
switch 2-2 to on. If you need more information on how to do this, see
the section on setting DIP switches in Chapter 3. To set the cut sheet
feeder mode, do the following:
l
Turn the printer off.
•
Set DIP switch 2-2 to the on position using a pointed object, such as
the tip of a pencil.
•
Turn the printer back on.
Always change DIP switch settings with the printer power turned off.
The printer checks and recognizes new settings only at the time the
power is turned on.
7-4
Using Printer Options
