Epson FX-1050 - Attaching the Upper Case

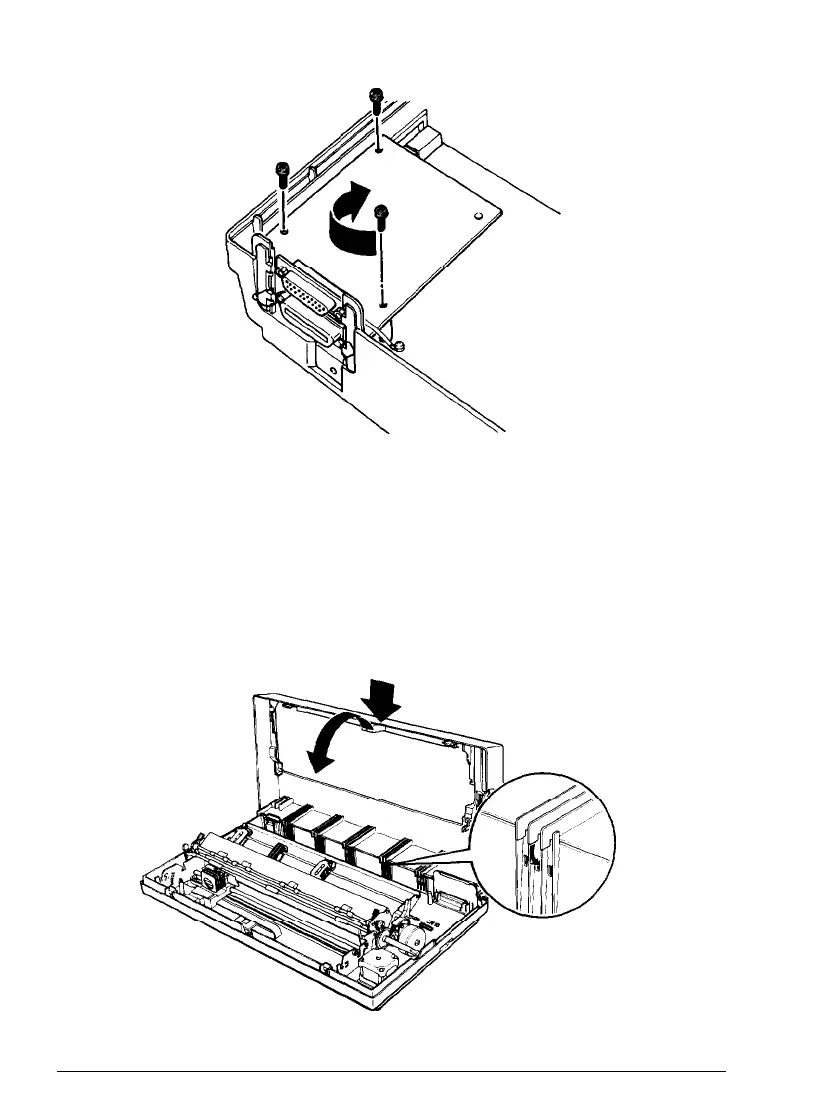

3. Secure the board with the three screws provided.
4. Set the DIP switches on the interface board according to the manual
that comes with the board.
Attaching the upper case
1. Fit the hinges of the upper case into the openings in the lower case.
Then partially lower the upper case.
Using Printer Options
7-31
