Caution: Take care not to pinch the FG wire between the upper and
lower cases.

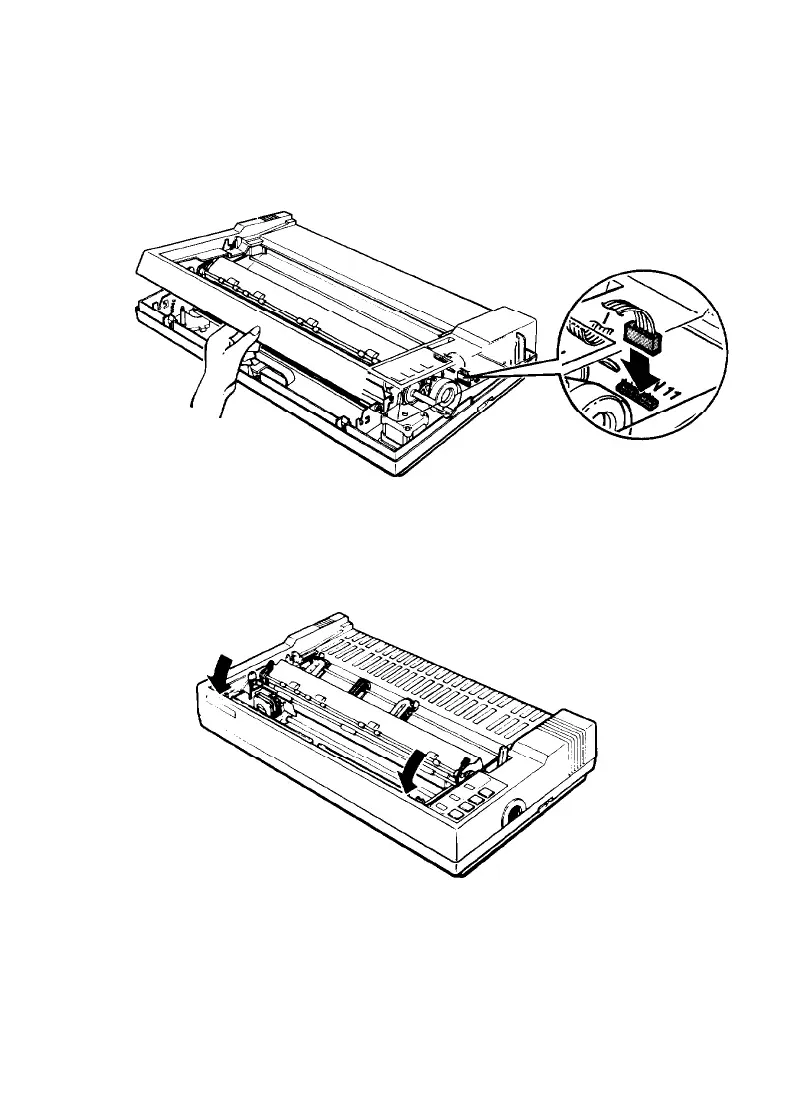

2. Carefully insert the control panel cable into the connector labelled
CNll on the main board.
3. Close the upper case. Make sure you press down on the front of the
case until it locks into place.
7-32
Using Printer Options
