Installing
the board
There are two basic interface board designs. These boards differ with
respect to how the frame ground (FG) wire is attached. This slight
difference changes the way the boards are installed in the printer, but

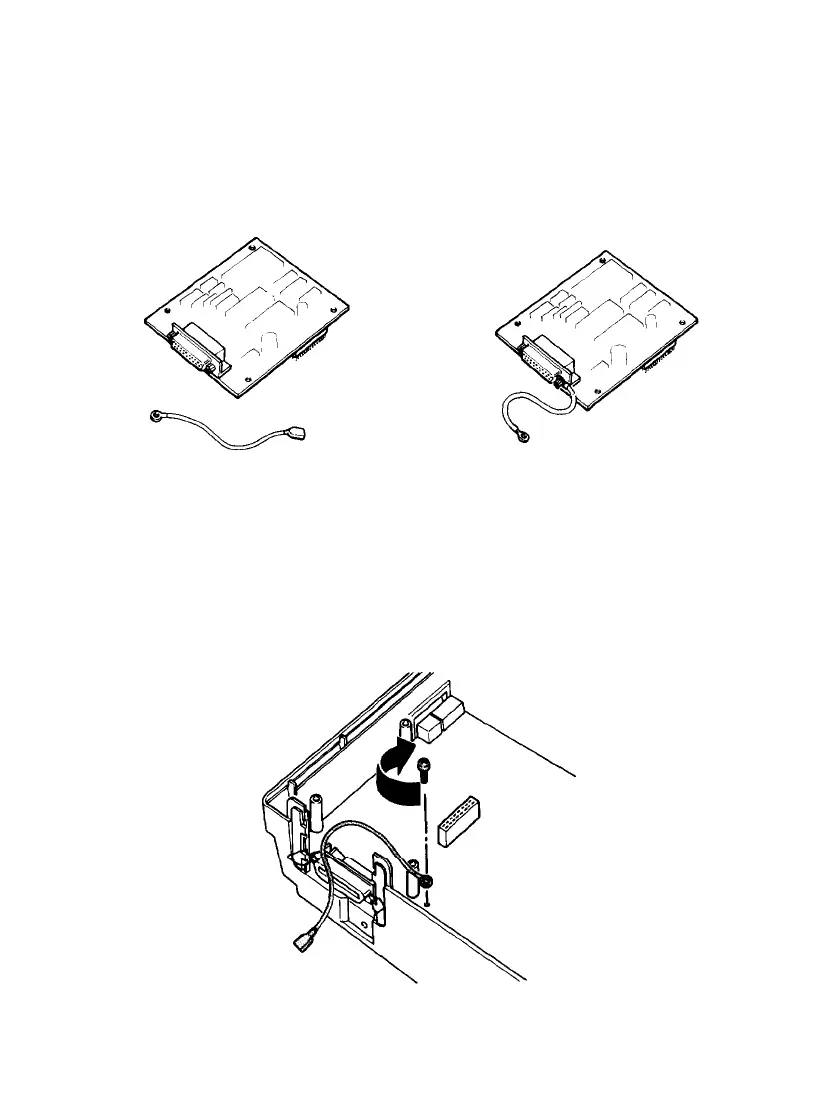

does not affect the operation of the interface in any way. Look at the
following illustration to see which type of interface board you have and
then follow the installation procedure for
that
type of board.
FG wire not attached
See below
FG wire attached
Skip to next section
FG wire not attached
1.
Use the CC screw to attach the round end of the FG (frame ground)
wire to the main board and position the other end as shown.
7-28
Using Printer Options
