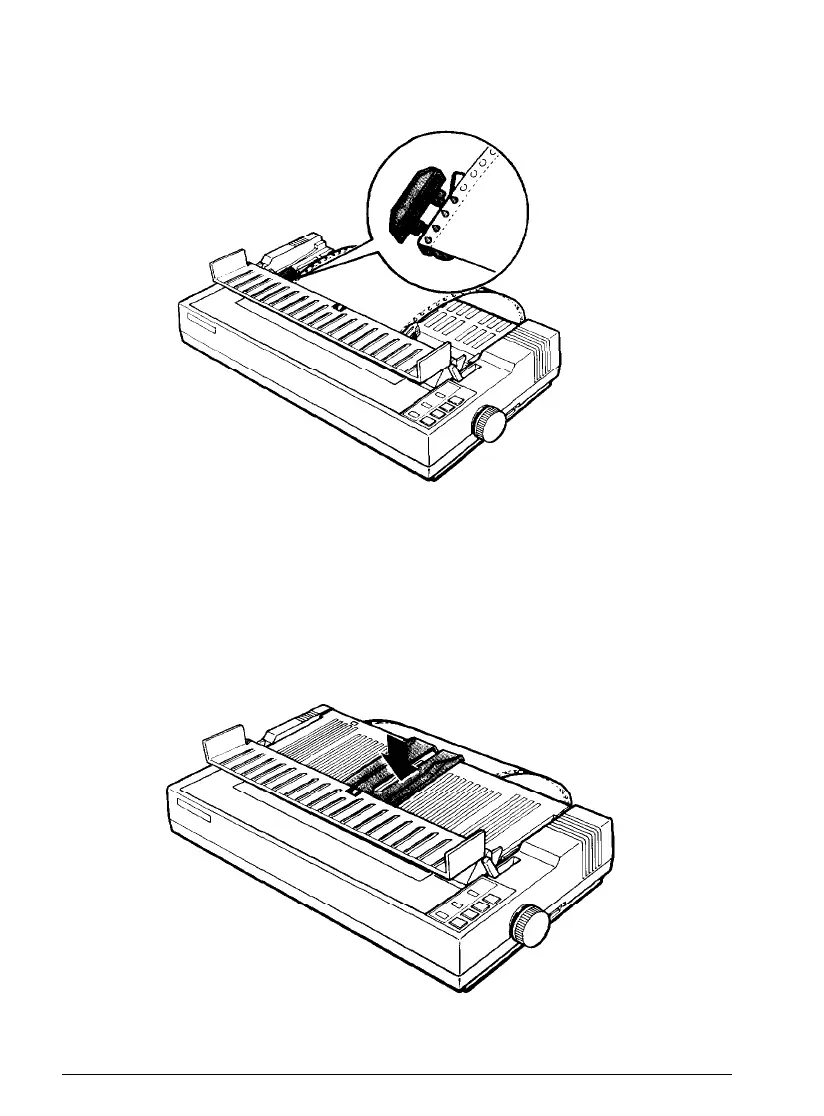

8. Fit the first four holes in the paper over the pins of the sprocket units
as shown below. Then close the sprocket covers.
9. Slide the right sprocket unit to a position where the paper is straight
and has no wrinkles, and then lock it in place.
10. Reattach the paper guide as shown below.
Paper Handling
2-7
