6. Attach the left and right locking tabs.
7.

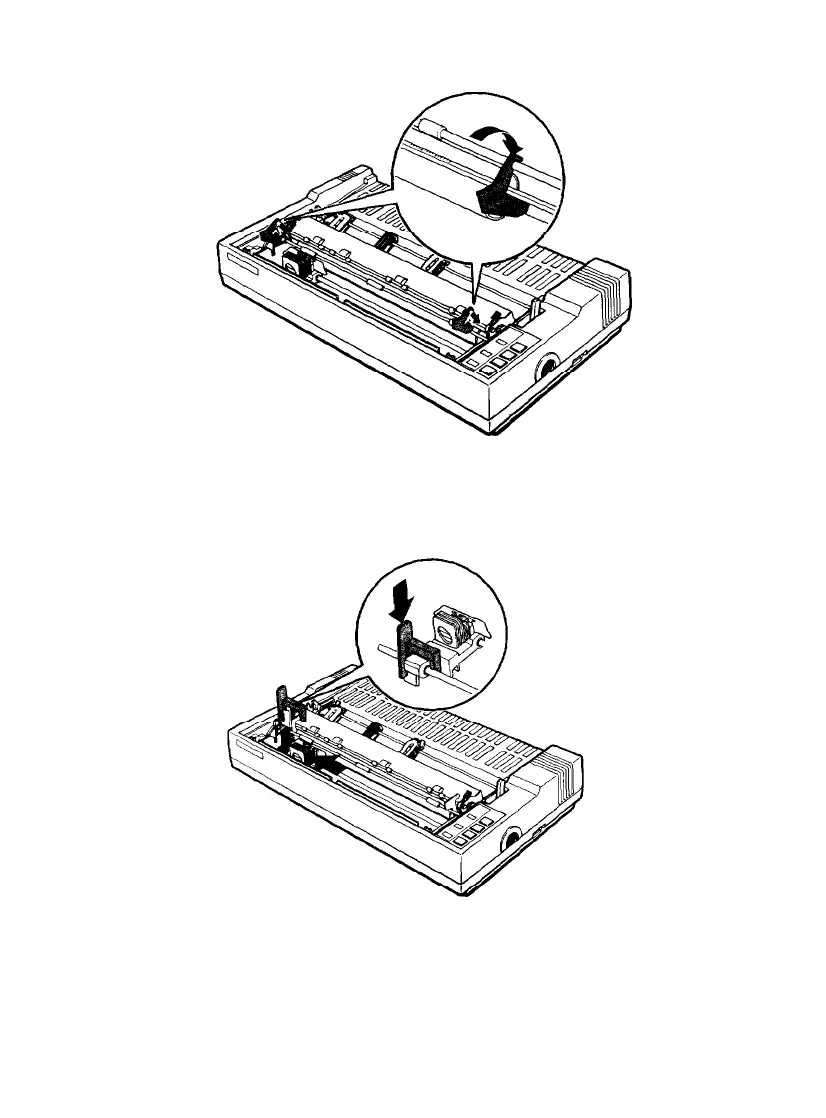

Slide the head all the way to the left, and insert the print head
protector between the paper bail and platen as shown below.
8. Attach the printer cover.
After replacing the packing material, put the printer in its box and
prepare it for transportation.
5-8
Maintenance
