Accessing EPSON Status Monitor 3
Do one of the following to access EPSON Status Monitor 3;
❏ Double-click the printer-shaped shortcut icon on the taskbar. To add a shortcut icon to the
taskbar, go to the Utility menu and follow the instructions.
❏ Open the Utility menu, then click the EPSON Status Monitor 3 icon. To find out how to open the
Utility menu, See “Using the Printer Driver” on page 59.

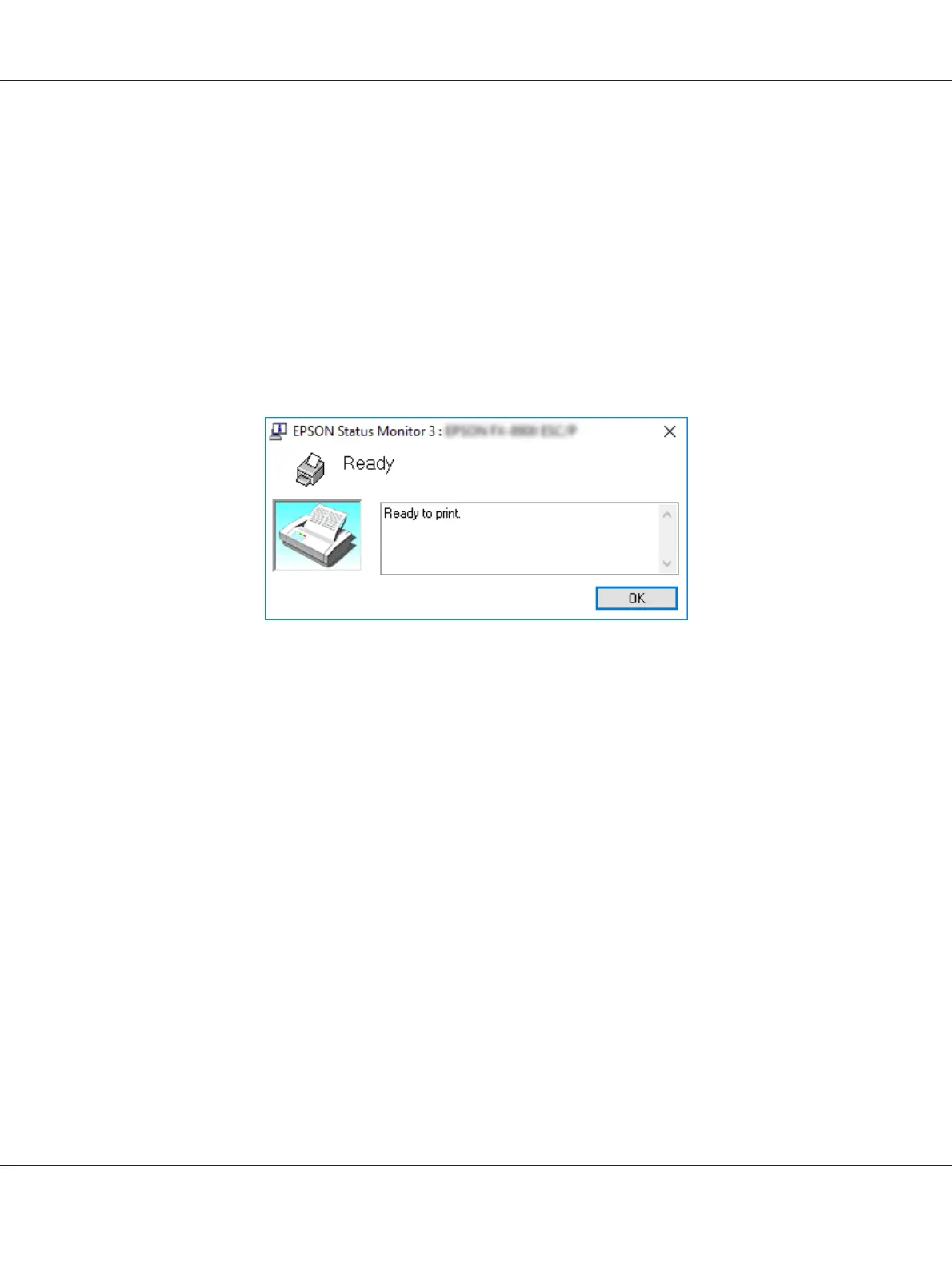

When you access EPSON Status Monitor 3 as described above, the following printer status window
appears.
You can view printer status information in this window.
Note:
It might not be possible to retrieve the printer status during printing. In this situation, click the EPSON
Status Monitor 3 button in the Utility tab, and use the printer with the status window left open.
Installing EPSON Status Monitor 3
Follow the steps below to install EPSON Status Monitor 3.
1. Make sure that the printer is off and that Windows is running on your computer.
2. Insert the Software Disc in the CD-ROM drive.
Note:
Before proceeding, make sure you have installed the printer driver on your computer.
3. Follow the on-screen instructions to install the software.
FX-890II/FX-890IIN/FX-2190II/FX-2190IIN User’s Guide
Printer Software 72

Epson FX-2190II Specifications

General

Color	No
Bitmap fonts	Roman, Sans Serif
Character pitch	10, 12, 15, 17, 20 cpi
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Maximum print speed (LQ)	115 cps
Page description languages	ESC P, OKI ML, PPDS
Maximum print speed (draft)	463 cps
Maximum printing width (columns)	-
Number of pins	9
Sustainability certificates	ENERGY STAR
Print direction	Bi-directional
Mean time between failures (MTBF)	25000 h
Certification	UL62368-1, CAN/CSA C22.2 No. 60950-1, IEC/EN62368-1 EMI: FCC 15 B A, ICES-003 A, EN55032 (CISPR pu.32) A, As/NZS CISPR32 A CE: EN62368-1, EN55032 A, EN61000-3-2, EN61000-3-3, E55024
Product color	Black
Sound pressure level (printing)	55 dB
Paper feed	Pull tractor, Push tractor
Cut sheet width range	182.88 - 419.1 mm
Cut sheet length range	256.54 - 355.6 mm
Paper tray media types	Envelopes
Continuous paper width range	101.6 - 406.4 mm
Continuous paper length range	101.6 - 558.8 mm
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016
Windows operating systems supported	Windows 10, Windows 7, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Standard interfaces	Parallel
Optional connectivity	Ethernet, USB 2.0
AC input voltage	100-240 V
AC input frequency	50-60 Hz
Power consumption (standby)	12 W
Power consumption (typical)	57 W

Weight and Dimensions

Depth	375.92 mm
Width	612.14 mm
Height	175.26 mm
