L200/L201/L100/L101 Revision A
Disassembly/Assembly Details of Disassembling/Reassembling by Parts/Unit 27
Confidential

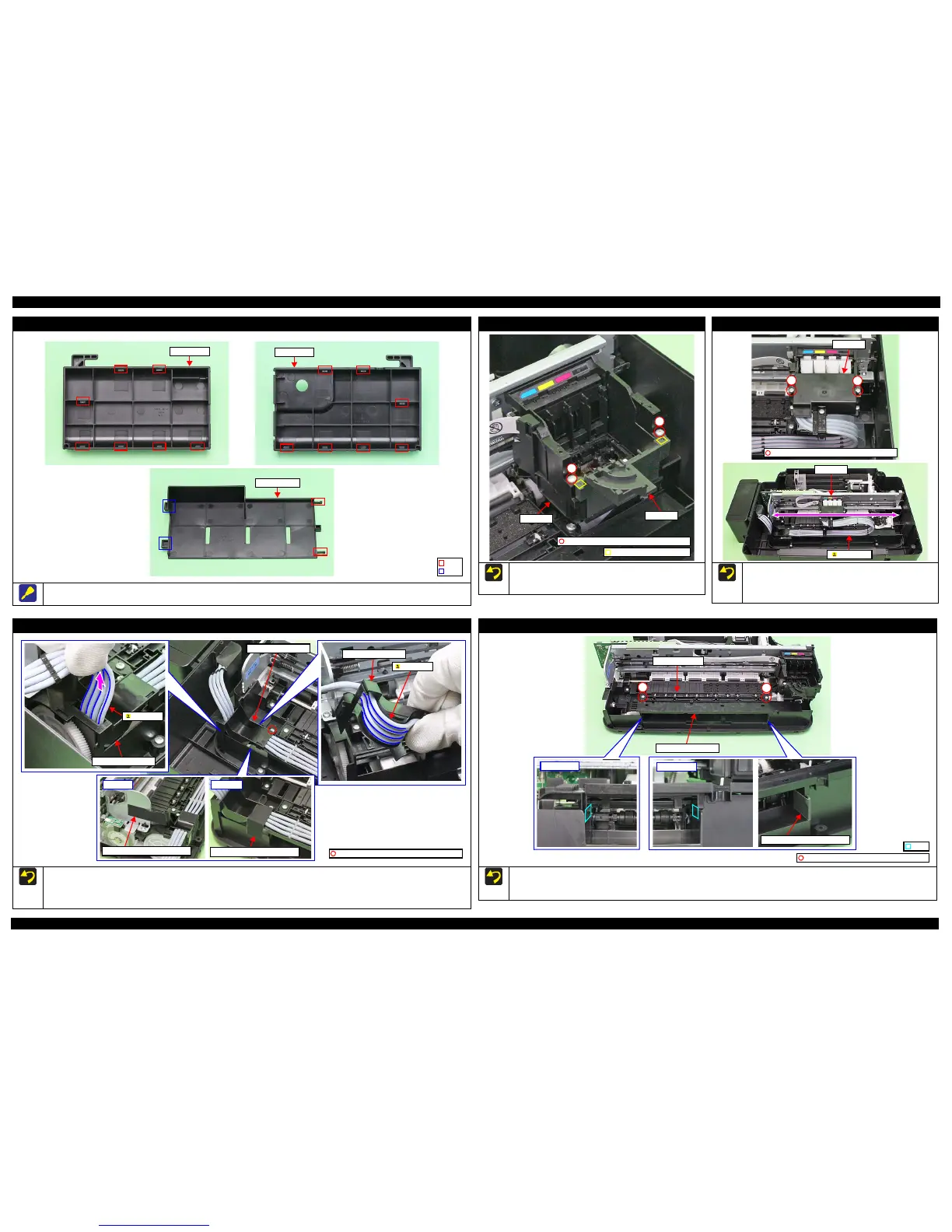

Right Cover / Left Cover / Bottom Cover
The figures above indicate the hooks and ribs that secure the parts.
Hook
Rib
Right Cover
Left Cover
Bottom Cover
CR Front
Align the positioning holes (x2) of the CR Front with the
dowels (x2) of the Carriage.
Tighten the screws in the order indicated in the figure above.
1
2
C.B.P-TITE SCREW 2.5x5 (5.0 ~ 6.0 kgf·cm)
Positioning Hole and Dowel
CR Front
Carriage
CR Cover
Tighten the screws in the order indicated in the figure above.
After installing the CR Cover, move the Carriage from side to
side to make sure that the Tube Assy does not apply extra load
of carriage movement.
1
C.B.P-TITE SCREW 2.5x5 (5.0 ~ 6.0 kgf·cm)
2
CR Cover
Carriage
Tube Assy
Ink Tube Guide 1st
When installing the Ink Tube Guide 1st, align the blue lines of the ink tubes (the red lines for L100/L101) in the same direction as shown in the
figure above, and be careful not to let the ink tubes go slack on the bottom of the Ink Tube Guide 1st.
After securing the Ink Tube Guide 1st, pull the ink tubes from the Ink Supply Tank Assy side to make sure that the ink tubes are not caught.
Attach acetate tape (x2) in the positions shown above to secure the Ink Tube Guide 1st.
Ink Tube Guide 1st
Ink Tubes
Ink Tube Guide 1st
Ink Tubes
C.B.P-TITE SCREW 2.5x5 (5.0 ~ 6.0 kgf·cm)
Ink Tube Guide 1st
Acetate tape (18 mm x 50 mm)
Front side
Acetate tape (18 mm x 50 mm)
Left side
Ink Tube Guide 2nd / EJ Frame Assy
Align the ribs on the left/right side of the Ink Tube Guide 2nd with the frame as shown in the figure above.
Attach acetate tape in the position shown above to secure the Ink Tube Guide 2nd.
Tighten the screws of the Ink Tube Guide 2nd together with the EJ Frame Assy in the order indicated in the figure above.
Acetate tape (18 mm x 30 mm)
2
C.B.P-TITE SCREW 3x10 (5.0 ± 0.5 kgf·cm)
1
Ink Tube Guide 2nd
EJ Frame Assy
Rib
