L200/L201/L100/L101 Revision A
Disassembly/Assembly Details of Disassembling/Reassembling by Parts/Unit 29
Confidential

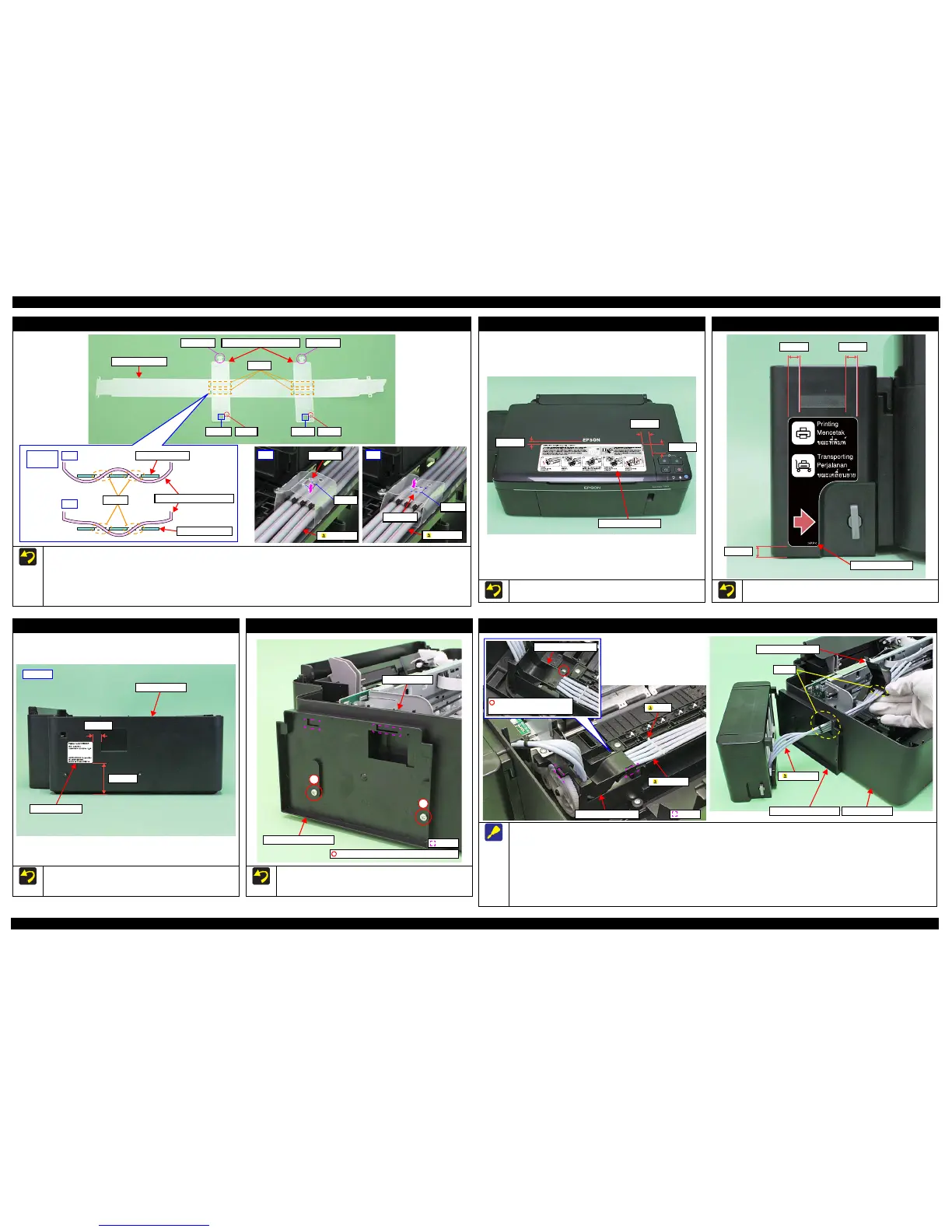

Tube Guide Plate Support
Refer to the figure above and follow the procedure below when installing the Tube Guide Plate Support.
1. Make sure that the hole B of the Tube Guide Plate Support comes on the right front side as seen from the front of the printer, and route the Tube
Guide Plate Support through the hole A (x2) of the Tube Guide Plate as shown in the “OK” image above.
2. Route the ink tubes along with the Tube Guide Plate.
3. Insert the section A of the Tube Guide Plate Support into the hole C of the Tube Guide Plate Support up from the bottom as shown in the “OK”
image above to secure it
OK
Section A
Hole C
Ink Tube
NG
Section A
Hole C
Ink Tube
Tube Guide Plate Support
Hole C Hole B Hole C Hole B
Section A Section A
Hole A
NG
OK Tube Guide Plate
Tube Guide Plate Support
Cross-
section
Tube Guide Plate
Hole A
Refilling Ink Label (L200/L201)
Attach the Refilling Ink Label on the position shown in the figure
above.
8.0 mm
Refilling Ink Label
16.5 mm
30.5 mm
Valve Position Label
Attach the Valve Position Label on the position shown in the figure
above.
6.4 mm
7.5 mm 7.5 mm
Valve Position Label
Middle Housing (L200/L201)
When replacing the Middle Housing, peel off the Voluntary Label
from the old housing and attach it to the new housing as specified
in the figure above.
Left side
Voluntary Label
10.0 mm
45.0 mm
Middle Housing
Ink Supply Holder Assy (L200/L201)
When installing the Ink Supply Holder Assy, align the hooks (x2)
with the hole of the Middle Housing, and tighten the screws in the
order indicated in the figure above.
1
C.B.P-TITE SCREW 3x6 (5.0 ~ 6.0 kgf·cm)
2
Ink Supply Holder Assy
Hook
Middle Housing
Ink Tube Guide 1st / Ink Supply Holder Assy (L200/L201)
Follow the procedure below when removing the Ink Supply Holder Assy / Ink Tube Guide 1st.
1. Remove the screws (x2) that secure the Ink Supply Holder Assy. (p 29)
2. Peel off the acetate tape (x2) that secure the Ink Tube Guide 1st. (p 27)
3. Remove the screw (x1) that secures the Ink Tube Guide 1st.
4. Release the hooks (x2) that secure the Ink Tube Guide 1st, and remove it from the frame.
5. After confirming the Valve is closed, disconnect the Ink Tubes from the Joint. (p 10)
6. Pull out the Ink Tubes from the holes of the Middle Housing / Ink Supply Holder Assy / Ink Tube Guide 1st, and remove the Ink Supply Holder
Assy / Ink Tube Guide 1st.
C.B.P-TITE SCREW 2.5x5
(5.0 ~ 6.0 kgf·cm)
Ink Tube Guide 1st
Hook
Joint
Ink Tube Guide 1st
Ink Supply Holder Assy Middle Housing
Ink Tube Guide 1st
Holes
Ink Tube
Ink Tube
To Next Page
