Epson L210 Service Manual

Confidential
Adjustment Mechanism Adjustment / Check 63
L350/L300/L355/L210/L110 Series Revision B
Checking the PF Timing Belt Tension
1. Set the following parameters to the sonic tension meter:
 L350/L355/L210 Series

Weight: 1.1 g/m
 Width: 3.2 mm
 Span: 29 mm
2. Bring the microphone of the sonic tension meter close to the position shown in Figure 3-3.
3. Press the “MEASURE” button of the sonic tension meter and flip the lower of the PF Timing Belt with
plastic tweezers and measure the tension of the belt three times.
4. Check the average of the measured values falls within the standard range.

Within the standard range: the PF Timing Belt tension check is complete.
 Out of the standard range: reinstall the " PF Driven Pulley Assy / PF Timing Belt (p43)", and then perform the PF
Timing Belt Tension Check again.

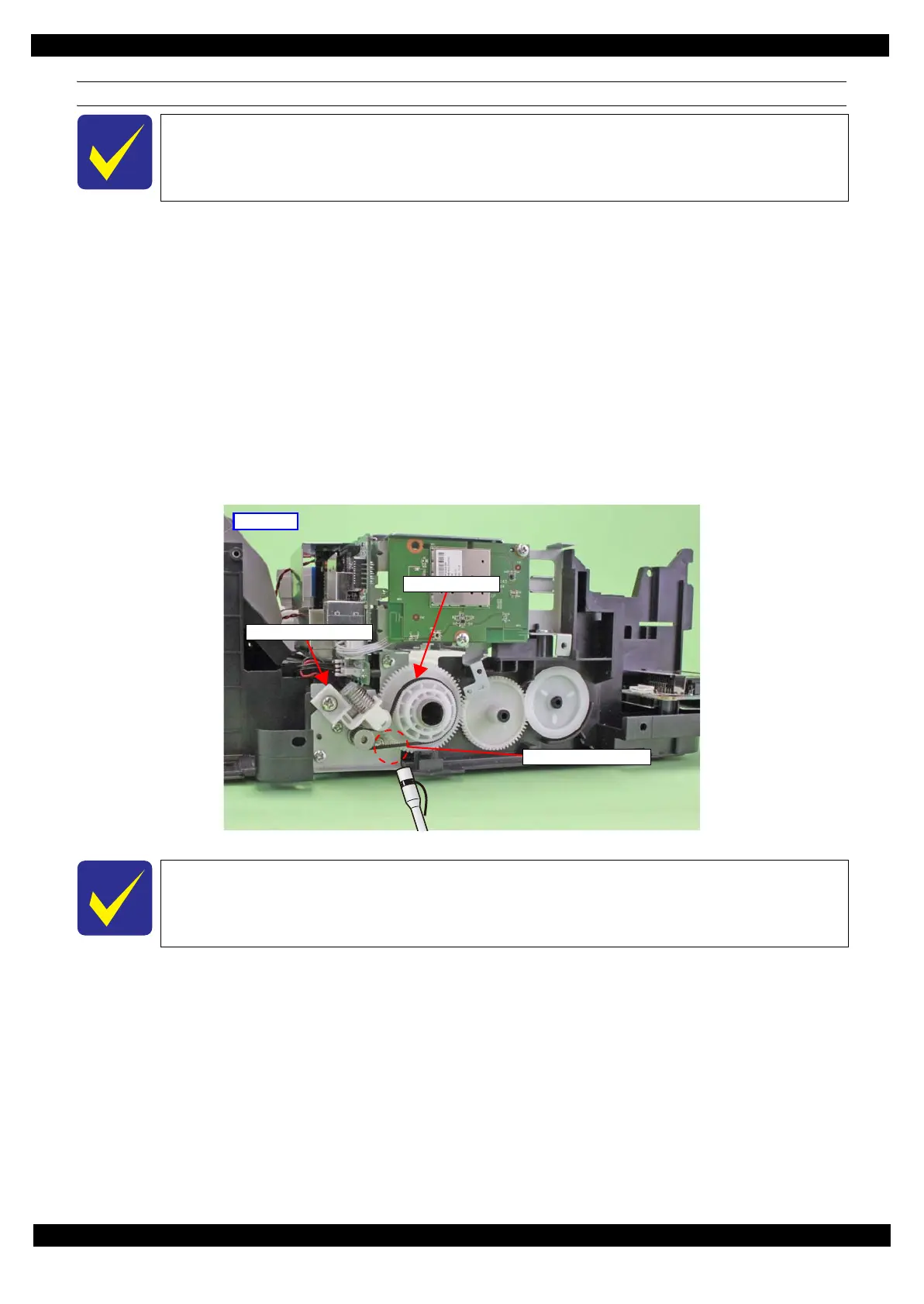

Figure 3-3. Checking the PF Timing Belt Tension
Perform the PF Belt tension check before installing the PF Scale and the PF Encoder Sensor.
If not within the standard though performing the PF Timing Belt Tension Check twice,
replace the unit with a new/refurbished one.
PF Driven Pulley Assy
PF Timing Belt
Left side
Measurement position

Epson L210 Specifications

General

Functions	Print, Scan, Copy
Print Resolution	5760 x 1440 dpi
Scanner Type	Flatbed color image scanner
Scanner Resolution	600 x 1200 dpi
Connectivity	USB 2.0
Ink Colors	Black, Cyan, Magenta, Yellow
Weight	4.4 kg
Print Technology	On-demand inkjet
Paper Capacity	50 sheets
Ink Type	Dye Ink
Print Speed (Black)	27 ppm
Print Speed (Color)	15 ppm
Copy Resolution	600 x 600 dpi
Paper Sizes	A4, A5, A6, B5, DL
Ink Tank Capacity	70 ml (each color)
Operating System Compatibility	Windows XP/Vista/7/8, Mac OS X 10.6.8 or later
Dimensions (W x D x H)	472 x 300 x 145 mm
