EPSON LQ-300+ Revision C
Product Description PAPER 27

Envelop

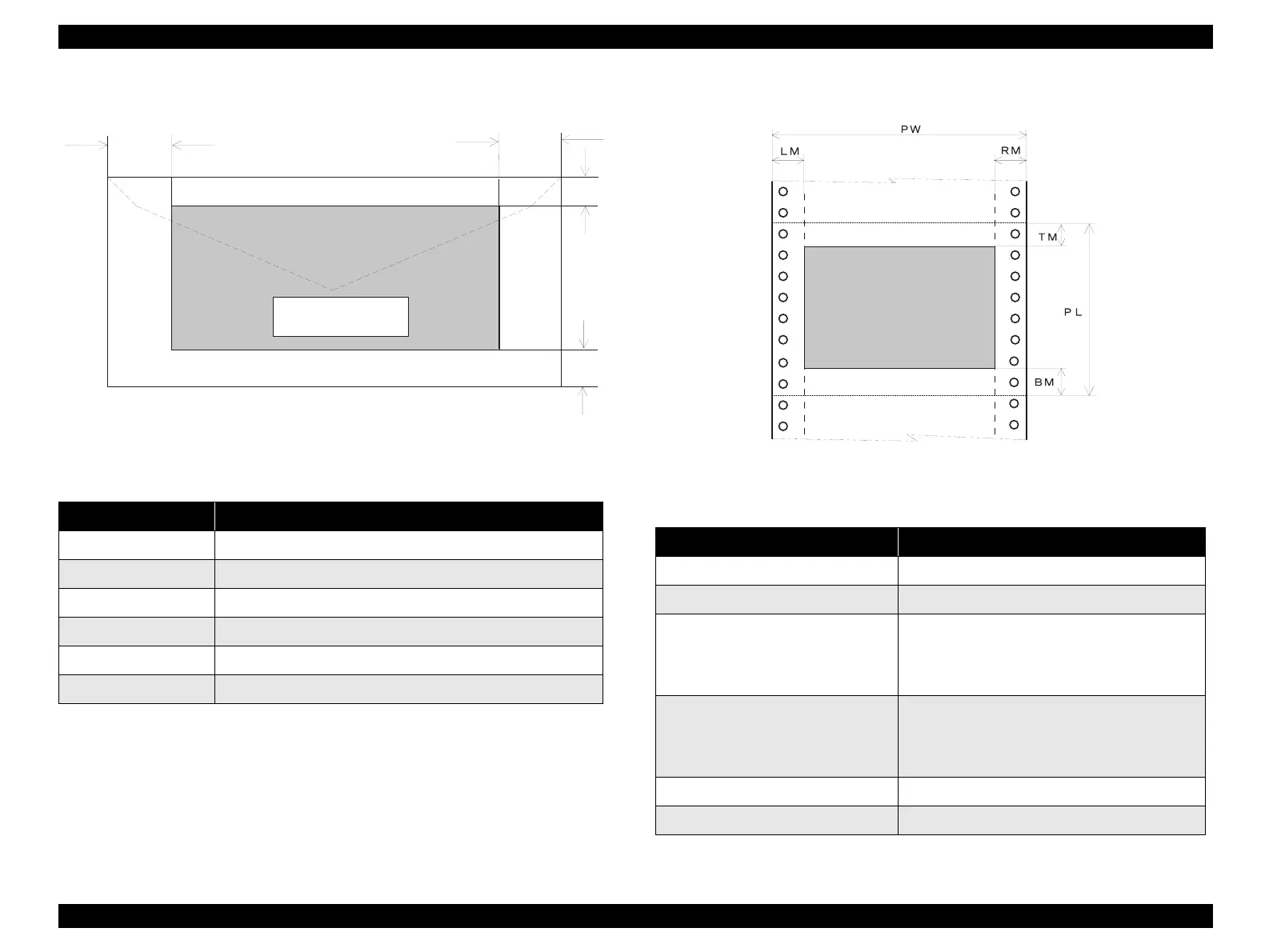

Figure 1-8. Printable Area for Envelop

Continuous paper
Figure 1-9. Printable Area for Continuous Paper
Table 1-9. Printable Area for Envelope
Envelope Printable Area
PW (Width) Refer to 1.7.1 "PAPER SPECIFICATIONS"
PL (Length) Refer to 1.7.1 "PAPER SPECIFICATIONS"
LM (Left Margin) 3 mm or more
RM (Right Margin) 3 mm or more
TM (Top Margin) 4.2 mm or more
BM (Bottom Margin) 4.2 mm or more
NOTE: The maximum horizontal printable area is 203.2mm.
P r i n t a b l e A r e a
L M
T M
R M
B M
Table 1-10. Printable Area for Continuous Paper
Continuous Paper
PW (Width) Refer to 1.7.1 "PAPER SPECIFICATIONS"
PL (Length) Refer to 1.7.1 "PAPER SPECIFICATIONS"
LM (Left Margin) When PW<=241.3mm:
13 mm or more
When PW=254 mm:
24mm or more
RM (Right Margin) When PW<=241.3mm:
13 mm or more
When PW=254 mm:
24mm or more
TM (Top Margin) 4.2 mm or more
BM (Bottom Margin) 4.2 mm or more
NOTE: The maximum horizontal printable area is 203.2mm.
P r i n t a b l e A r e a
P e r f o r a t i o n
P e r f o r a t i o n
