EPSON LQ-300+ Revision C
Maintenance Maintenance 79

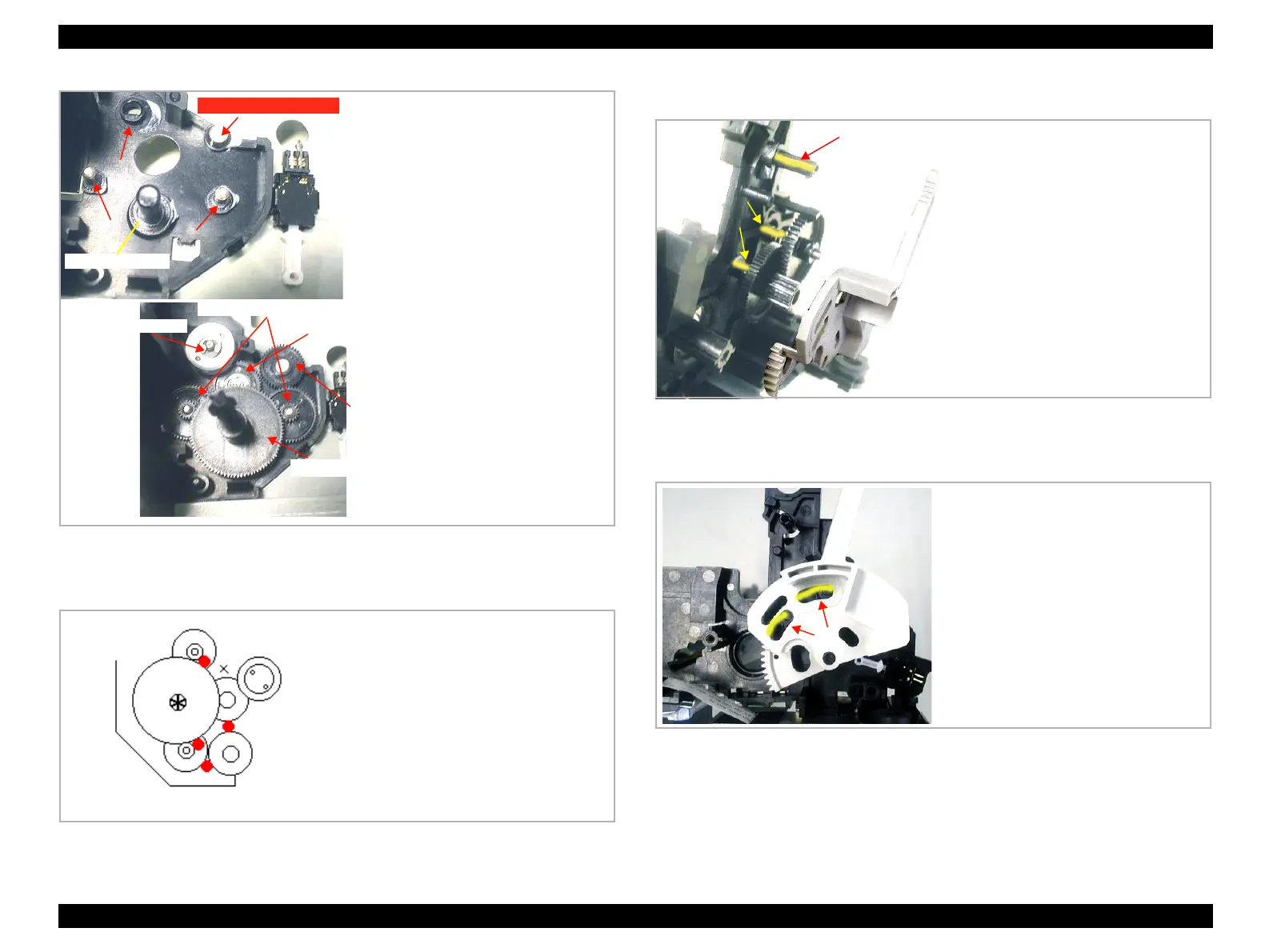

Figure 6-1. Left Frame Assembly
Figure 6-2. Teeth of Gears at the Left Frame
Figure 6-3. Shafts at the Right Frame Assembly
Figure 6-4. Release Lever
Lubricate G-26 on the 3 shafts and 1 boss
of the left frame.
G-26, 1/2 of rice
Lubricate G-26 on the shaft of the left
frame.
G-26, 1 of rice
Planetary lever assy.
Combination Gear 5.1, 16.2
Spur Gear, 13.2
RD ratchet
Driven pulley assy.
Lubrication Points
Spur Gear, 13.2
RD ratchet shaft
Lubricate G-26 on teeth of gears.
G-26, 1/2 of rice
Lubricate G-26 at 3 places on 3 shafts a
t
the right frame.
Shafts at the right frame assembly:
G-26, 1 grain of rice
Lubricate G-26 at 2 places on inside of
cam at slope surface of the release lever.
Release lever:
G-26, 1 grain of rice
