Course and Rudder Angle Printer
2 Installation
Edition: 001 5 10000001193
2 Installation
2.1 Install the Printer
Procedure
1. Connect the transfer module (104-034.HP012 / U2) according to the wiring diagram.
2. Loosen the Power Cable (104-034.HP012 / U10) of the course and rudder angle printer.
3. Loosen the 4 screws and remove the 2 mounting hooks of the course and rudder angle
printer.

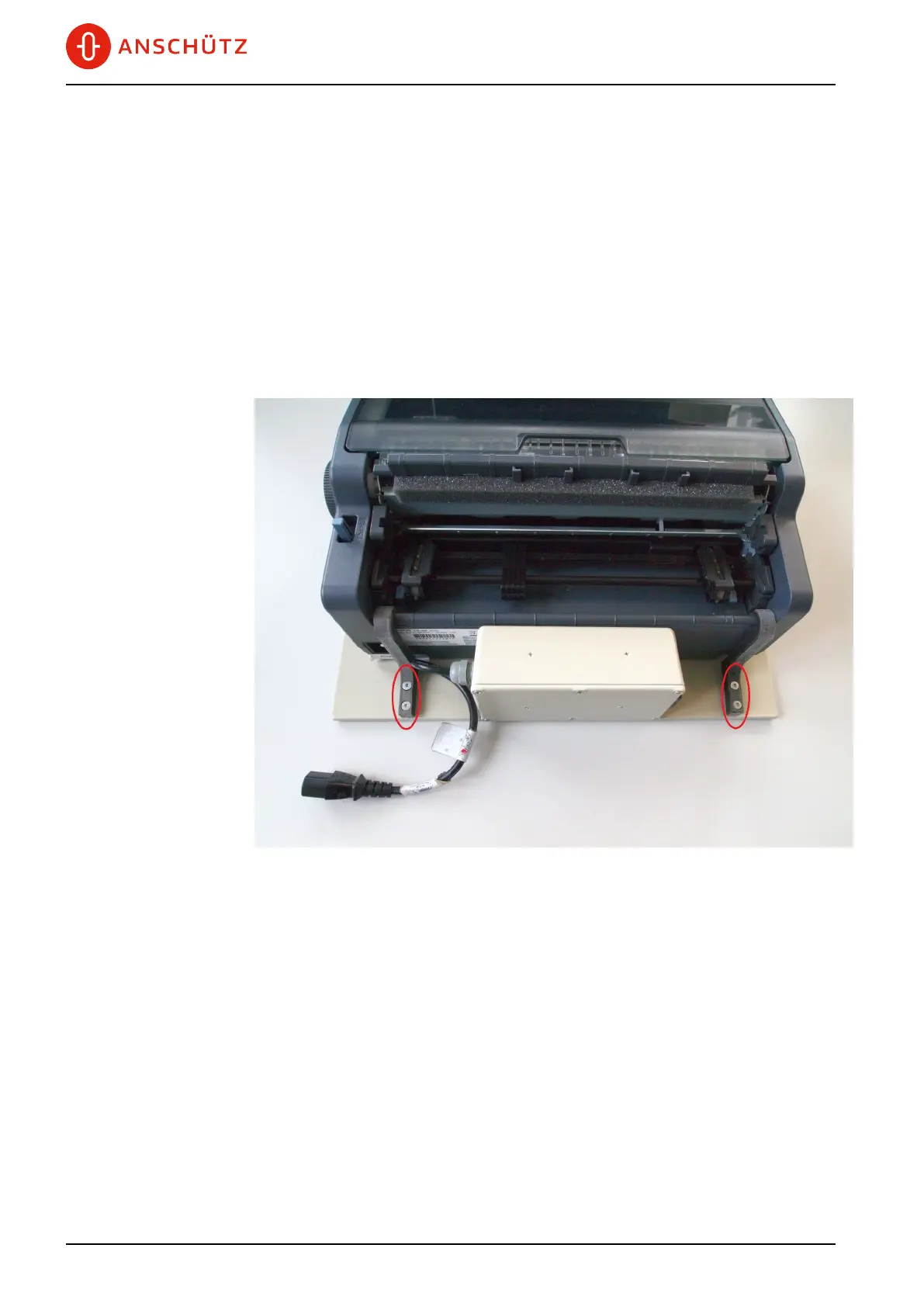

Fig. 2: Course and Rudder Angle Printer, Mounting Hooks
4. Loosen the 2 screws on the bottom of the mounting plate.
5. Connect the transfer module with the data cable (104-034.HP012 / U11) to the printer.
