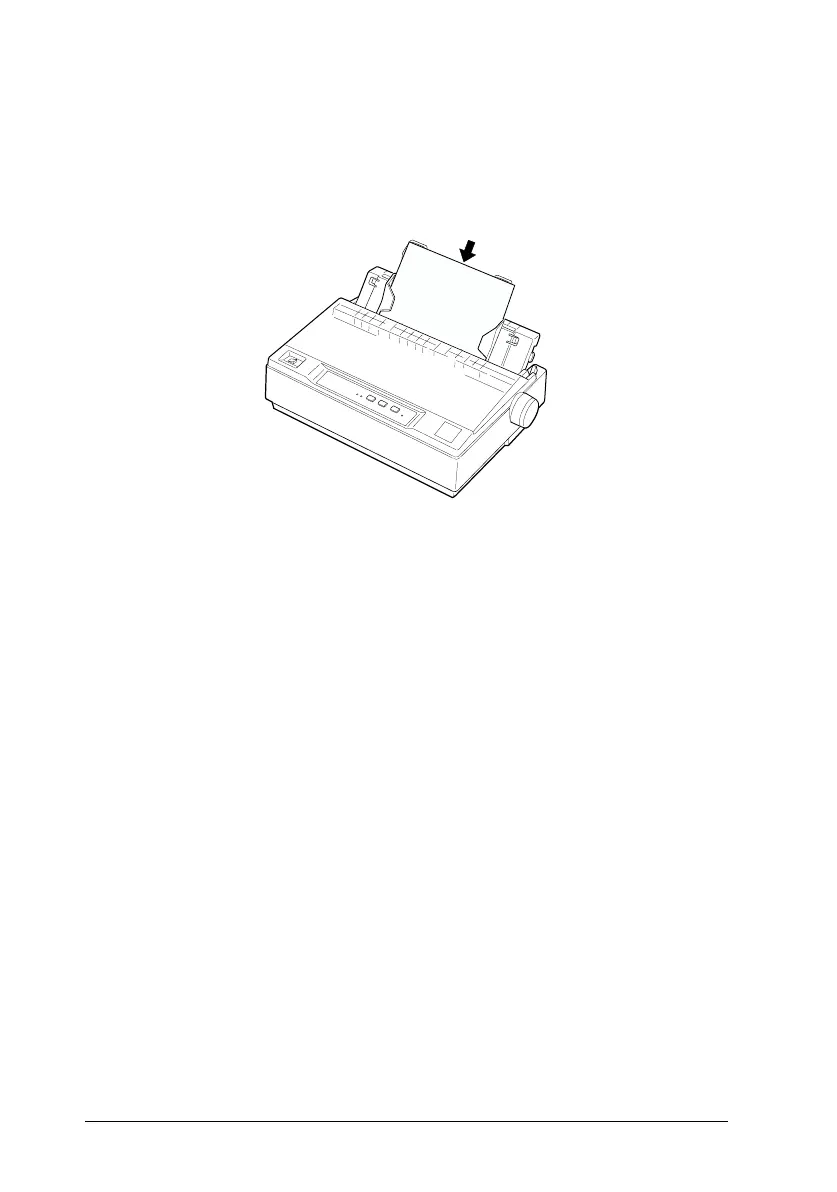

4. Slide a sheet of paper down firmly between the edge guides
until it meets resistance. The printer loads the sheet
automatically. Press the
PAUSE
button, then the printer begins
to print.
c
Caution:
Always close the printer cover while the printer is printing.
The printer cover helps the paper feed.
5. To stop printing temporarily, press the
PAUSE
button.
6. To end the self test, make sure the printer is not printing. Press
LF/FF
to eject the sheet; then turn off the printer.
Here is part of a typical self-test printout:
Note:
If the self test did not print satisfactorily, see Chapter 3. If it prints
correctly, go on to the next section.
BB1-17
BB1-18
L
Blueberry REV.E
A5 size Chapter 1
95/04/17
1-12
Setting Up the Printer

Epson LX-300 Specifications

General

Print Method	9-pin impact dot matrix
Interface	Parallel
Paper Handling	Friction feed, tractor feed
Weight	4.4 kg
Operating Environment	Temperature: 5 - 35°C, Humidity: 10 - 80%
