Epson LX-300 User Manual

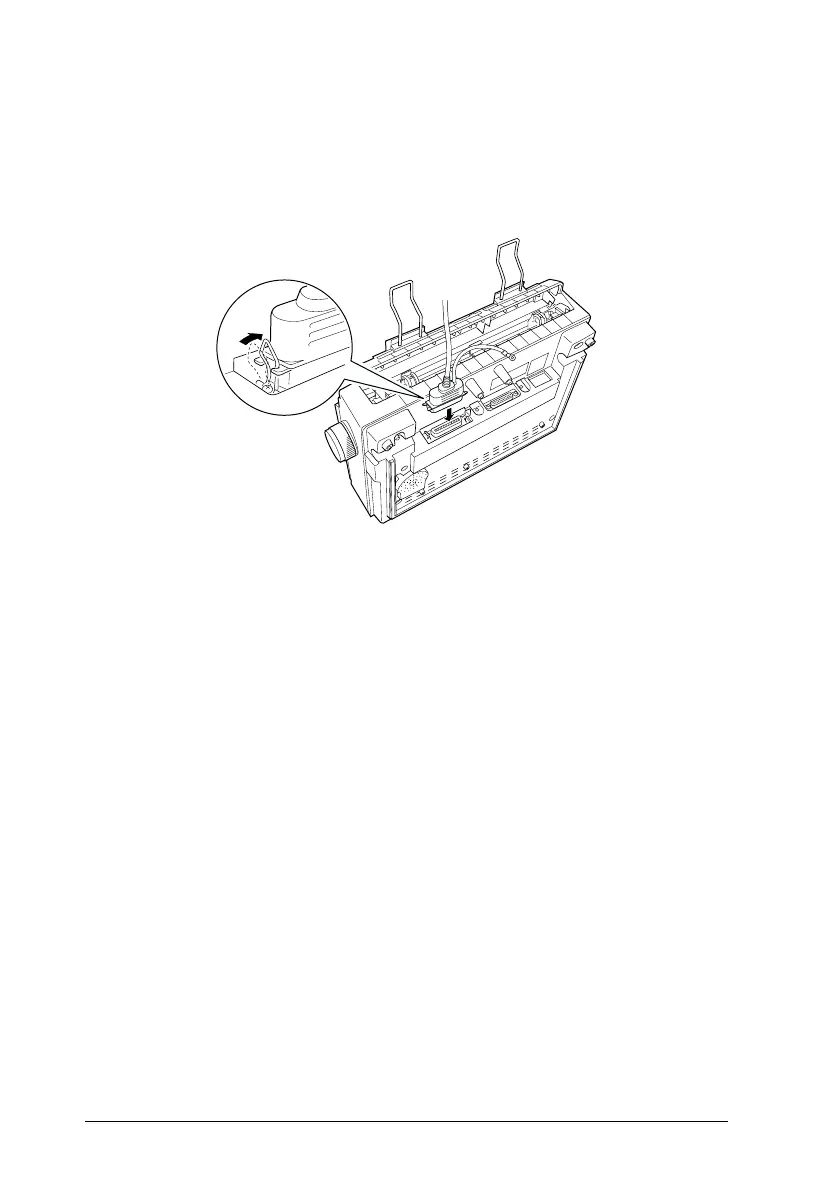

1. Turn off both the computer and the printer. Plug the parallel
cable connector securely into the printer’s parallel interface.
Squeeze the wire clips together until they lock in place on
either side of the connector.
2. Guide the interface cable through the slot on the side of the
printer so that it does not block the paper supply as shown in
the illustration on page 1-16.
Note:
If there is a ground wire at the end of the cable, attach it to the
ground connector at the right of the interface.
3. Plug the other end of the cable into the computer’s parallel
interface. (If there is a ground wire at the end of the cable,
attach it to the ground connector at the back of the computer.)
BB1-20
L
Blueberry REV.E
A5 size Chapter 1
95/04/17
1-14
Setting Up the Printer

Epson LX-300 Specifications

General

Print Method	9-pin impact dot matrix
Interface	Parallel
Paper Handling	Friction feed, tractor feed
Weight	4.4 kg
Operating Environment	Temperature: 5 - 35°C, Humidity: 10 - 80%
