Epson LX-300 User Manual

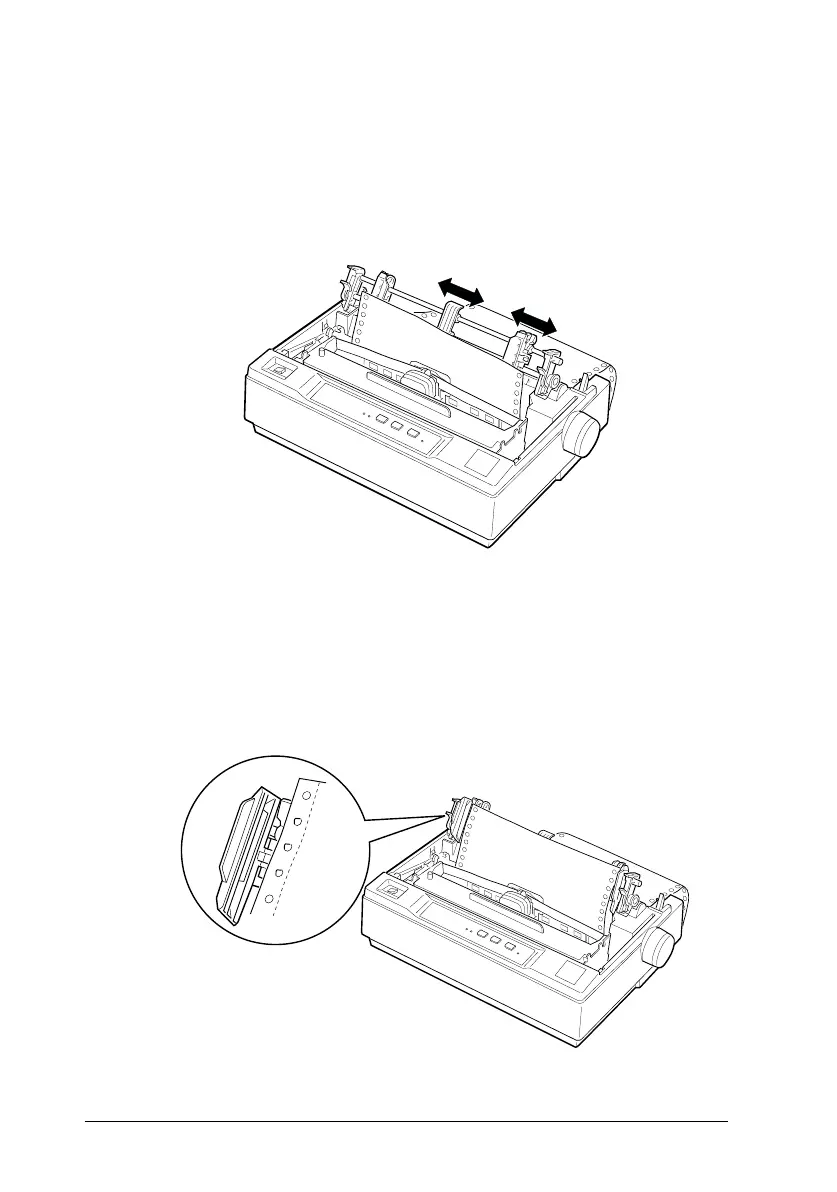

6. Slide the left sprocket unit so that its sprockets match the
position of the holes in the paper and lock the unit in place.
Then slide the right sprocket unit to match the width of your
paper, but do not lock it. Move the paper support midway
between the two sprocket units.
7. Make sure your paper has a clean, straight leading edge. Open
the sprocket covers. Fit the first holes of the paper over the
sprocket pins and then close the sprocket covers. Slide the
right sprocket unit to remove any slack in the paper and lock it
in place.
BB2-13
BB2-14
L
Blueberry REV.F
A5 size Chapter 2
95/05/25
2-14
Using the Printer

Epson LX-300 Specifications

General

Print Method	9-pin impact dot matrix
Interface	Parallel
Paper Handling	Friction feed, tractor feed
Weight	4.4 kg
Operating Environment	Temperature: 5 - 35°C, Humidity: 10 - 80%
