Chapter 1 Overview
11
1
Connection Pattern
When connecting the Customer Displays or the Cash Drawers
to the TM printers.

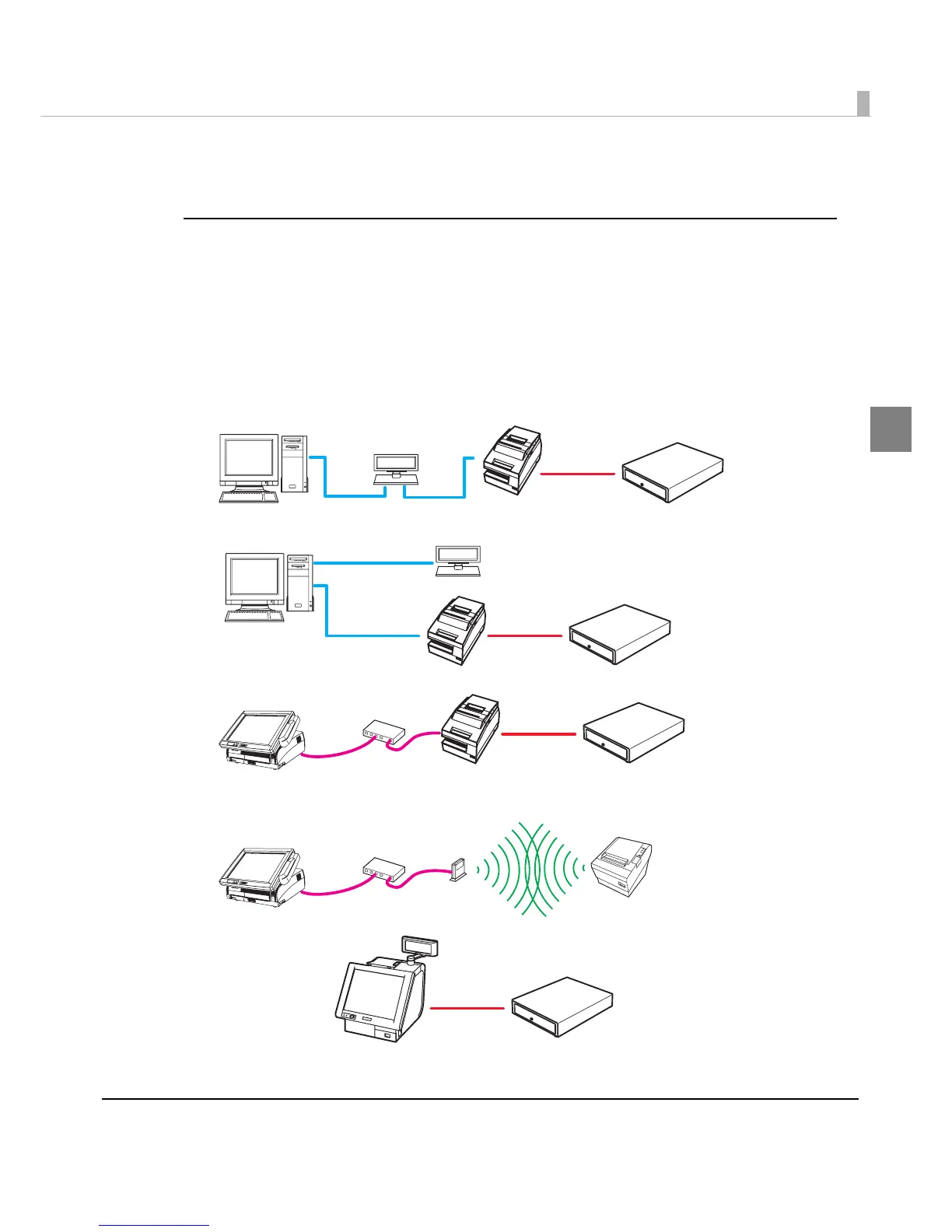

The connection patterns shown below are available depending on the TM printer interface.
For the pass-through connection or Y-connection, be sure to install the drivers in the correct
order.
USB
Ethernet
Parallel
Serial
Serial
Modular
Stand-alone connection
Pass-through connection
Serial
Serial
Modular
Wireless LAN connection
Ethernet
Hub
Access Point
Ethernet connection
Ethernet
Hub
Modular
IR-700
Internal serial connection
Modular
When using this connection method, first install the Customer Display driver.
Then, install the TM printer driver.
To Next Page
