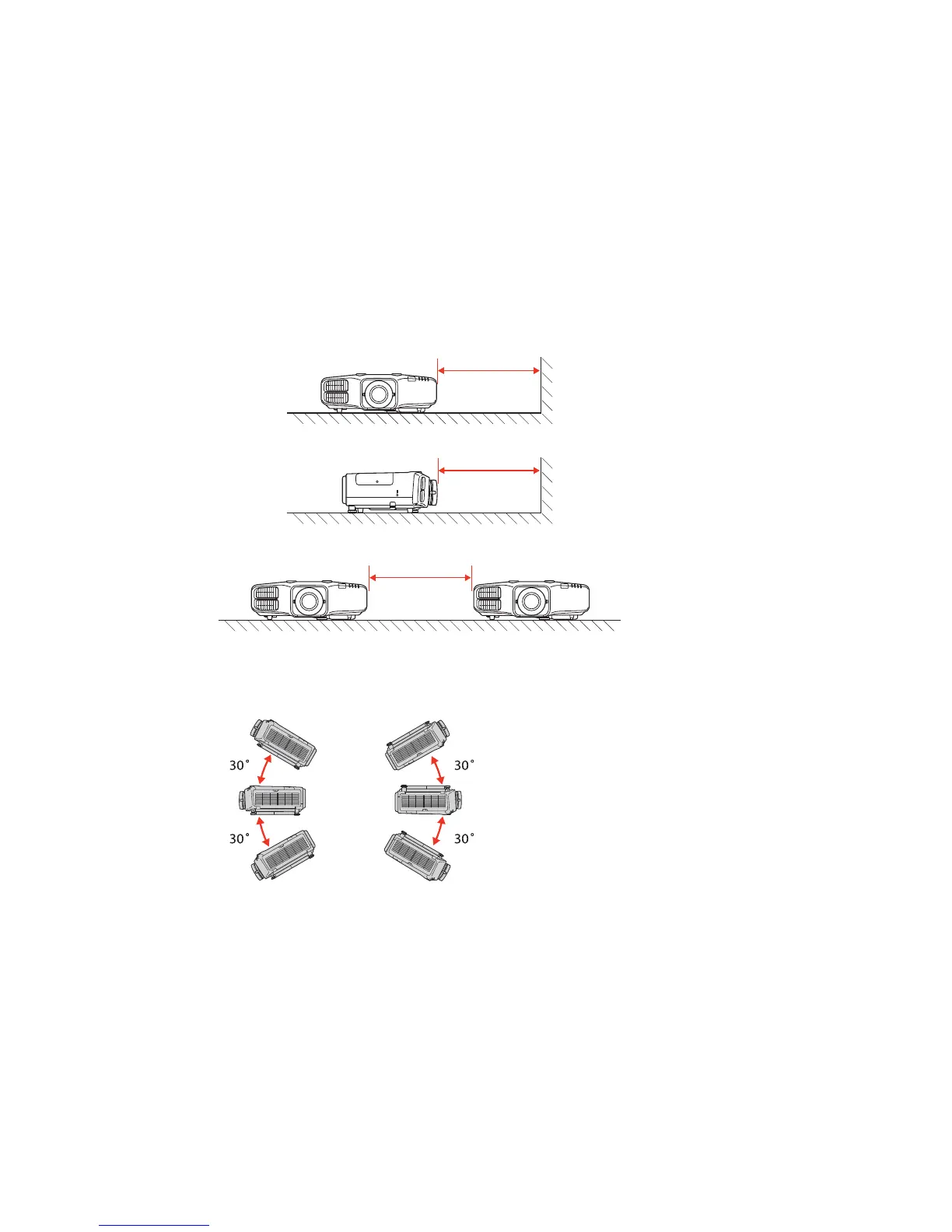

Note:
Be
sure
to
leave
at
least
20
inches
(50
cm)
of
space
in
front
of
the
air
exhaust
and
intake
vents
and,
when
setting
up
multiple
projectors,
20
inches
(50
cm)
of
space
between
the
projectors.
If
you
mount
the
projector
to
the
ceiling,
it
can
be
installed
at
the
following
angles:
•
Vertically
:
Any
angle
up
to
±30°.
28
27
29
Table of Contents
Default Chapter
3
Table of Contents
3
Powerlite 4650/4750W/4770W/4855WU User's Guide
9
Introduction to Your Projector
10
Projector Features
10
Product Box Contents
11
Additional Components
13
Optional Equipment and Replacement Parts
13
Warranty and Registration Information
15
Notations Used in the Documentation
15
Where to Go for Additional Information
15
Projector Part Locations
16
Projector Parts - Front/Top
17
Projector Parts - Rear
18
Projector Parts - Interface Ports
19
Projector Parts - Base
21
Projector Parts - Control Panel
22
Projector Parts - Remote Control
23
Setting up the Projector
26
Projector Placement
26
Projector Setup and Installation Options
26
Projection Distance
29
Projector Connections
31
Connecting to Computer Sources
31
Connecting to a Computer for VGA Video
31
Connecting to a Computer for HDMI Video and Audio
32
Connecting to a Computer for Displayport Video and Audio
33
Connecting to a Computer for 5 BNC Video
34
Connecting to a Computer for Sound
35
Connecting to Video Sources
36
Connecting to an HDMI Video Source
36
Connecting to a Component-To-BNC Video Source
37
Connecting to a Component-To-VGA Video Source
37
Connecting to an S-Video Video Source
38
Connecting to a Composite Video Source
39
Connecting to a Video Source for Sound
40
Connecting to an External Computer Monitor
41
Connecting to External Speakers
41
Attaching and Removing the Cable Cover
42
Attaching and Removing the HDMI Cable Clip
44
Installing Batteries in the Remote Control
45
Using the Projector on a Network
48
Wired Network Projection
48
Connecting to a Wired Network
49
Selecting Wired Network Settings
49
Wireless Network Projection
52
Installing the Wireless LAN Module
53
Using Quick Wireless Connection (Windows Only)
55
Selecting Wireless Network Settings Manually
57
Wireless LAN Menu Settings
60
Selecting Wireless Network Settings in Windows
61
Selecting Wireless Network Settings in os X
61
Setting up Wireless Network Security
62
Wireless Security Menu Settings
63
Setting up Projector Network E-Mail Alerts
64
Network Projector E-Mail Alert Messages
65
Setting up Monitoring Using SNMP
66
Controlling a Networked Projector Using a Web Browser
67
Crestron Roomview Support
69
Setting up Crestron Roomview Support
69
Controlling a Networked Projector Using Crestron Roomview
70
Using Basic Projector Features
72
Turning on the Projector
72
Turning off the Projector
74
Selecting the Language for the Projector Menus
75
Setting the Screen Type
75
Adjusting the Image Position Using Screen Position
76
Displaying a Test Pattern
77
Available Test Pattern Image Adjustments
78
Adjusting the Image Position Using Lens Shift
79
Adjusting the Image Height
83
Image Shape
84
Correcting Image Shape with H/V Keystone
84
Correcting Image Shape with Quick Corner
87
Correcting Image Shape with Arc Correction
88
Correcting Image Shape with Point Correction
90
Resizing the Image with the Zoom Ring
92
Focusing the Image Using the Focus Ring
92
Remote Control Operation
93
Selecting an Image Source
95
Projection Modes
96
Changing the Projection Mode Using the Remote Control
96
Changing the Projection Mode Using the Menus
97
Image Aspect Ratio
98
Changing the Image Aspect Ratio
98
Available Image Aspect Ratios
99
Color Mode
100
Changing the Color Mode
100
Available Color Modes
101
Turning on Auto Iris
102
Controlling the Volume with the Volume Buttons
103
Setting the Date and Time
103
Adjusting Projector Features
105
Shutting off the Picture and Sound Temporarily
105
Stopping Video Action Temporarily
106
Zooming into and out of Images
106
Projector Security Features
107
Password Security Types
107
Setting a Password
108
Selecting Password Security Types
109
Entering a Password to Use the Projector
110
Saving a User's Logo Image to Display
111
Locking the Projector's Buttons
113
Unlocking the Projector's Buttons
113
Installing a Security Cable
114
Projecting Two Images Simultaneously
114
Using Multiple Projectors
116
Projector Identification System for Multiple Projector Control
116
Setting the Projector ID
116
Setting the Remote Control ID
117
Adjusting the Position of the Projected Image from Multiple Projectors
118
Matching the Image Colors
119
Adjusting the Color Tone (Color Uniformity)
120
Adjusting the Color Convergence (Panel Alignment)
121
Viewing 3D Images
124
Saving Settings to Memory and Using Saved Settings
124
Saving a Scheduled Event
126
Viewing Scheduled Events
126
Editing a Scheduled Event
127
Adjusting the Menu Settings
129
Using the Projector's Menus
129
Image Quality Settings - Image Menu
131
Input Signal Settings - Signal Menu
133
Projector Feature Settings - Settings Menu
136
Projector Setup Settings - Extended Menu
139
Projector Network Settings - Network Menu
143
Projector Information Display - Info Menu
145
Event ID Code List
146
Projector Reset Options - Reset Menu
147
Maintaining and Transporting the Projector
149
Projector Maintenance
149
Cleaning the Lens
149
Cleaning the Projector Case
150
Air Filter and Vent Maintenance
150
Cleaning the Air Filter
151
Replacing the Air Filter
154
Projector Lamp Maintenance
156
Replacing the Lamp
156
Resetting the Lamp Timer
160
Replacing the Remote Control Batteries
161
Transporting the Projector
163
Solving Problems
164
Projection Problem Tips
164
Projector Light Status
165
Using the Projector Help Displays
168
Solving Image or Sound Problems
169
Solutions When no Image Appears
169
Solutions When "No Signal" Message Appears
170
Displaying from a PC Laptop
170
Displaying from a Mac Laptop
171
Solutions When "Not Supported" Message Appears
171
Solutions When Only a Partial Image Appears
171
Solutions When the Image Is Not Rectangular
172
Solutions When the Image Contains Noise or Static
172
Solutions When the Image Is Fuzzy or Blurry
173
Solutions When the Image Brightness or Colors Are Incorrect
174
Solutions to Sound Problems
174
Solving Projector or Remote Control Operation Problems
175
Solutions to Projector Power or Shut-Off Problems
175
Solutions to Problems with the Remote Control
176
Solutions to Password Problems
177
Solutions When Network Alert E-Mails Are Not Received
177
Where to Get Help
177
Technical Specifications
179
General Projector Specifications
179
Projector Lamp Specifications
182
Remote Control Specifications
183
Projector Dimension Specifications
183
Projector Electrical Specifications
183
Projector Environmental Specifications
185
Projector Safety and Approvals Specifications
185
Supported Video Display Formats
185
Notices
189
Recycling
189
Important Safety Information
189
Important Safety Instructions
190
Restriction of Use
193
FCC Compliance Statement
193
Trademarks
194
Open Source Software License
194
Copyright Notice
239
A Note Concerning Responsible Use of Copyrighted Materials
240
Copyright Attribution
240
