Epson PowerLite W16 User Manual

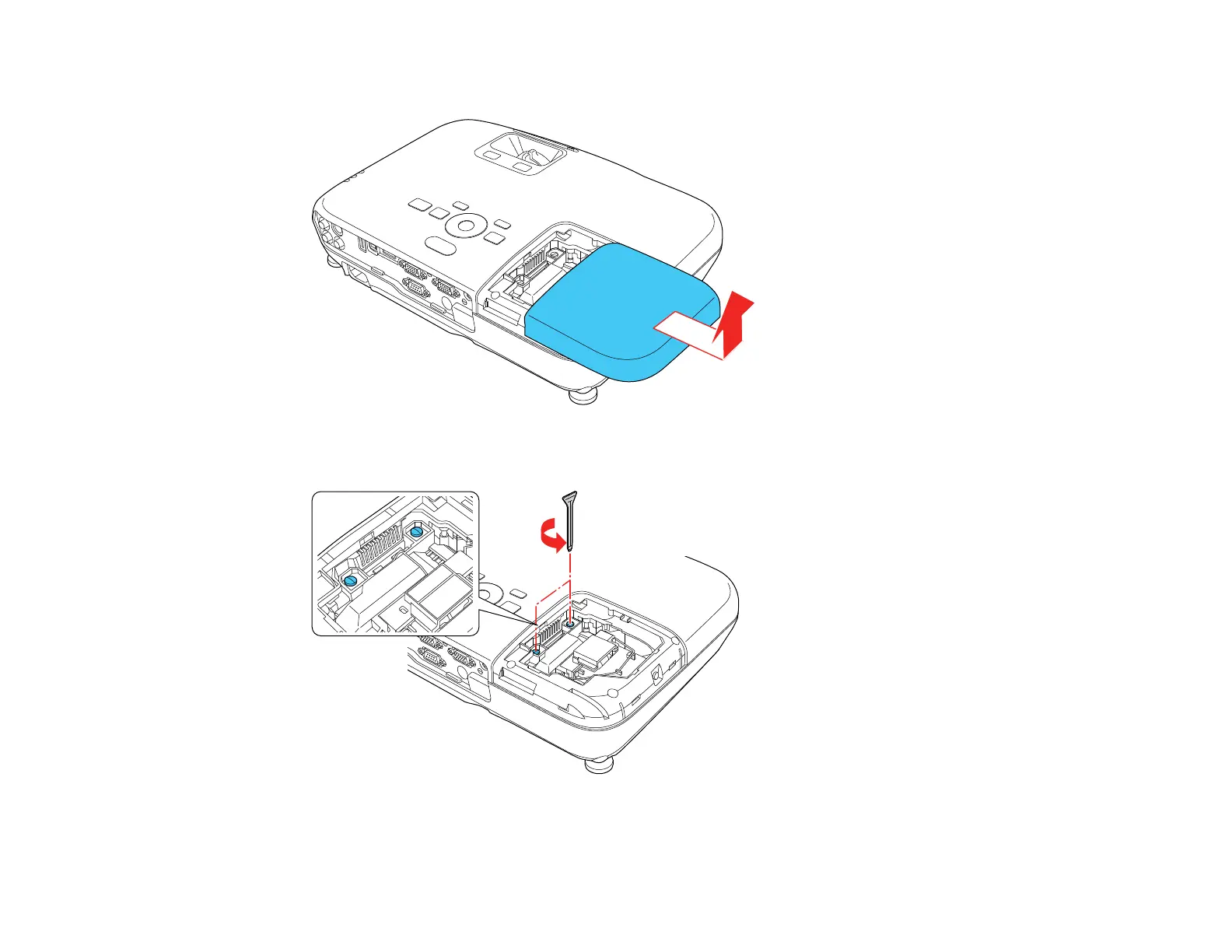

4. Slide the lamp cover out and lift it off.
5. Loosen the screws securing the lamp to the projector. The screws do not come all the way out.
108

Epson PowerLite W16 Specifications

Display

pixel number	1, 024, 000 dots (1280 x 800) x 3
color brightness	3000 lumens in 2D mode
white brightness	3000 lumens in 2D mode
aspect ratio	Native 16:10 widescreen, supports 16:9/4:3
native resolution	1280 x 800 (WXGA)

Lamp

lamp type	200 W UHE (E-TORL)
lamp life (ECO mode)	Up to 5000 hours
lamp life (normal mode)	Up to 4000 hours

Projection

throw ratio range	1.30 – 1.56
size (projected distance)	33" – 318"
keystone correction (automatic)	Vertical: ± 30 degrees, Horizontal: ± 20 degrees

Power

power supply voltage	100 – 240 V AC, ±10%, 50/60 Hz
power consumption (ECO mode)	237 W
power consumption (normal mode)	289 W

Dimensions and Weight

dimensions including feet	12.8" x 9.6" x 3.1"
dimensions excluding feet	12.8" x 9.6" x 3.0"
weight	6.0 lb
