Epson PowerLite W16 User Manual

2. Connect the other end to the projector's S-Video port.
Note: If you connected a game console, it may take a few seconds for your image to appear. To reduce
the lag time, set your game console's input signal to a progressive signal of 480p or 720p. See your
game console documentation for instructions.
Parent topic: Connecting to Video Sources
Related tasks
Connecting to a Video Source for Sound

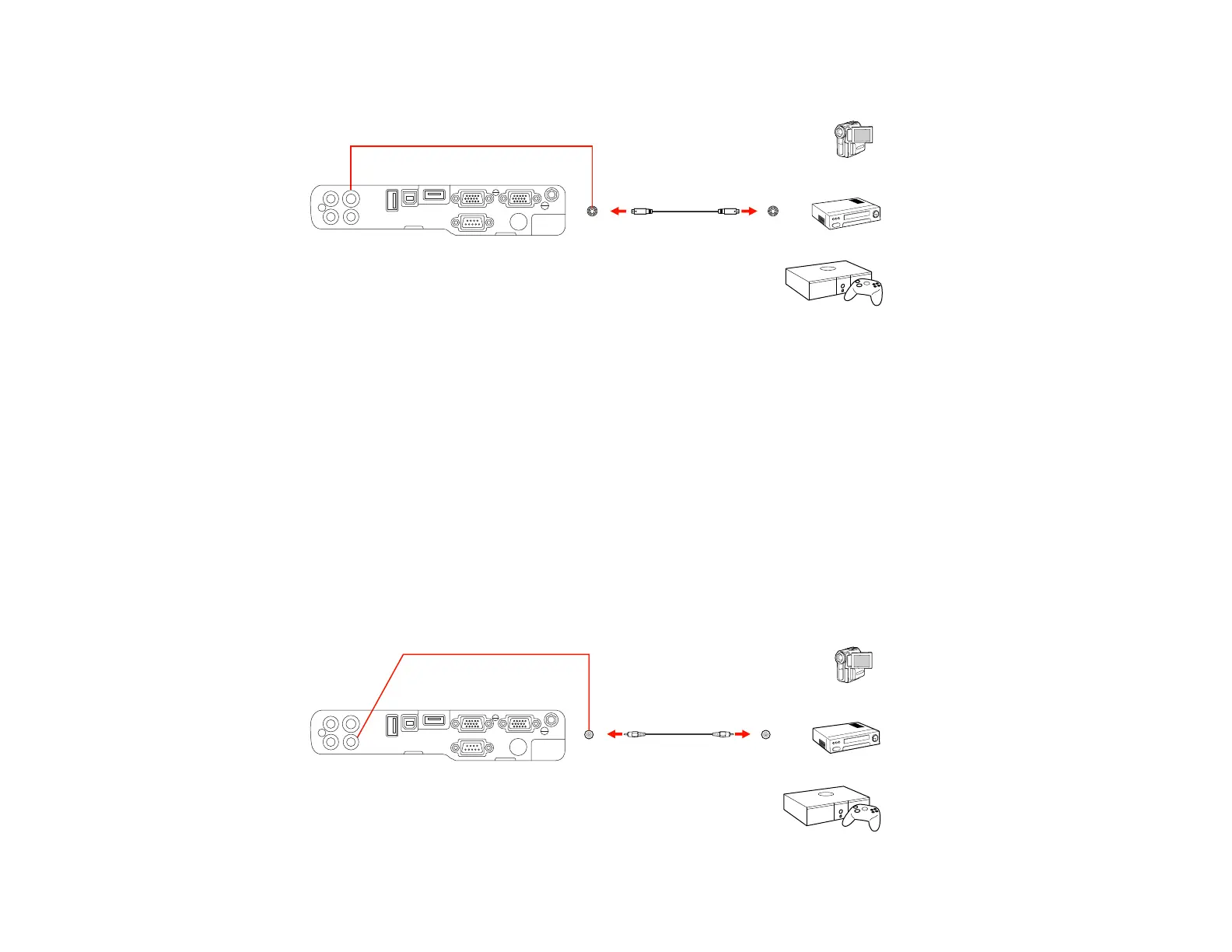

Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the projector using an optional
RCA-style video or A/V cable.
1. Connect the cable with the yellow connector to your video source's yellow video output port.
2. Connect the other end to the projector's Video port.
31

Epson PowerLite W16 Specifications

Display

pixel number	1, 024, 000 dots (1280 x 800) x 3
color brightness	3000 lumens in 2D mode
white brightness	3000 lumens in 2D mode
aspect ratio	Native 16:10 widescreen, supports 16:9/4:3
native resolution	1280 x 800 (WXGA)

Lamp

lamp type	200 W UHE (E-TORL)
lamp life (ECO mode)	Up to 5000 hours
lamp life (normal mode)	Up to 4000 hours

Projection

throw ratio range	1.30 – 1.56
size (projected distance)	33" – 318"
keystone correction (automatic)	Vertical: ± 30 degrees, Horizontal: ± 20 degrees

Power

power supply voltage	100 – 240 V AC, ±10%, 50/60 Hz
power consumption (ECO mode)	237 W
power consumption (normal mode)	289 W

Dimensions and Weight

dimensions including feet	12.8" x 9.6" x 3.1"
dimensions excluding feet	12.8" x 9.6" x 3.0"
weight	6.0 lb
