Epson PowerLite W16 User Manual

5. Use the arrow buttons on the remote control to surround the image area you want to use as the
User's Logo and press Enter.
You see a prompt asking if you want to select this image area.
6. Select Yes and press Enter. (If you want to change the selected area, select No, press Enter, and
repeat the last step.)

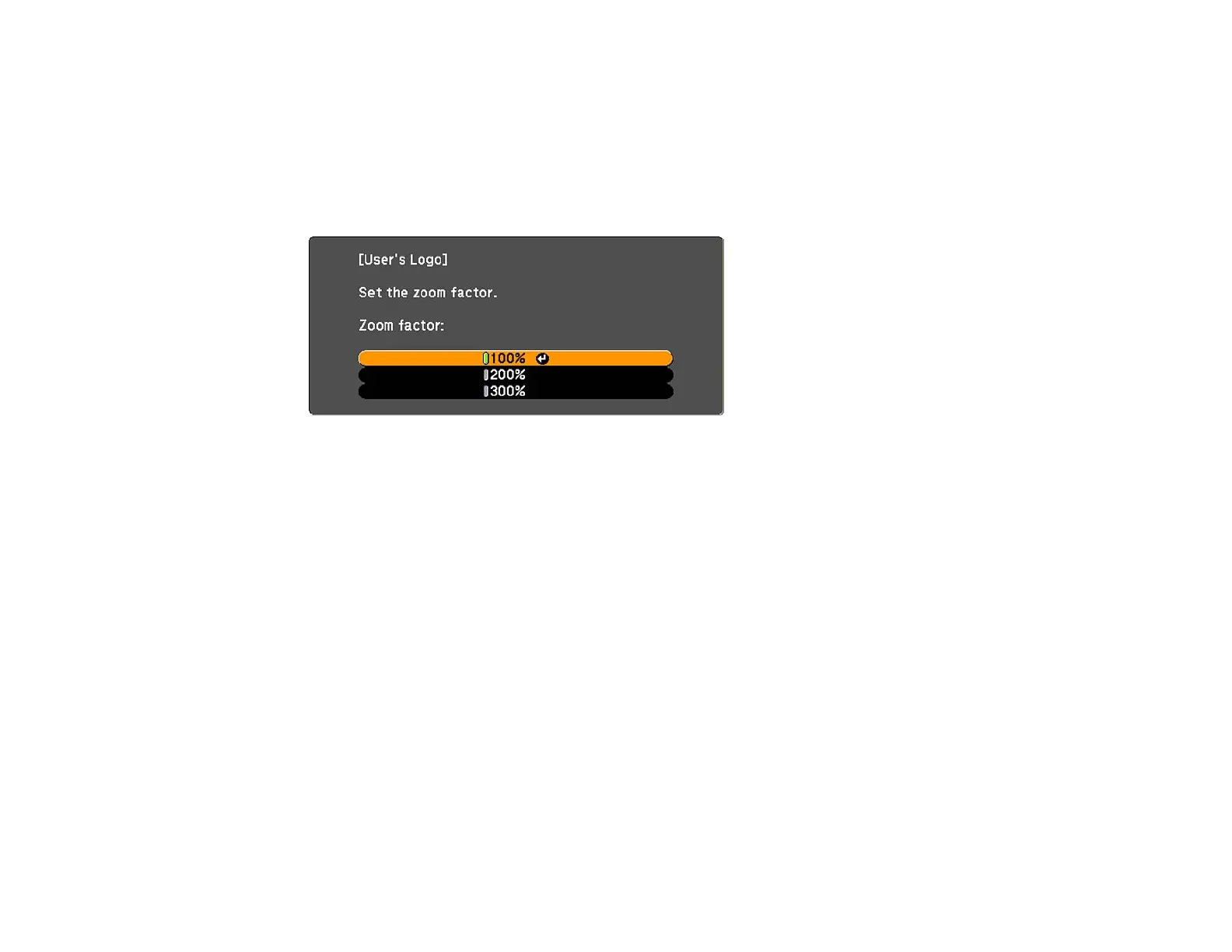

You see the User's Logo zoom factor menu.
7. Select a zoom percentage and press Enter.
You see a prompt asking if you want to save the image as the User's Logo.
8. Select Yes and press Enter.
Note: It takes a few moments for the projector to save the image; do not use the projector, its remote
control, or any connected equipment until it is finished.
You see a completion message.
9. Press Esc to exit the message screen.
10. Select the Extended menu and press Enter.
11. Select Display and press Enter.
12. Select when you want to display the User's Logo screen:
• To display it whenever there is no input signal, select Display Background and set it to Logo.
• To display it whenever you turn the projector on, select Startup Screen and set it to On.
• To display it whenever you press the A/V Mute button, select A/V Mute and set it to Logo.
84

Epson PowerLite W16 Specifications

Display

pixel number	1, 024, 000 dots (1280 x 800) x 3
color brightness	3000 lumens in 2D mode
white brightness	3000 lumens in 2D mode
aspect ratio	Native 16:10 widescreen, supports 16:9/4:3
native resolution	1280 x 800 (WXGA)

Lamp

lamp type	200 W UHE (E-TORL)
lamp life (ECO mode)	Up to 5000 hours
lamp life (normal mode)	Up to 4000 hours

Projection

throw ratio range	1.30 – 1.56
size (projected distance)	33" – 318"
keystone correction (automatic)	Vertical: ± 30 degrees, Horizontal: ± 20 degrees

Power

power supply voltage	100 – 240 V AC, ±10%, 50/60 Hz
power consumption (ECO mode)	237 W
power consumption (normal mode)	289 W

Dimensions and Weight

dimensions including feet	12.8" x 9.6" x 3.1"
dimensions excluding feet	12.8" x 9.6" x 3.0"
weight	6.0 lb
