2. Description

Part Feeding 7.0 IF-240 Rev.5 15

2.4.4 Digital output for hoppers 1 and 2

A standard M8 four-pins male cable enables transmission of the digital output signal to

hopper. It must be connected as follows:

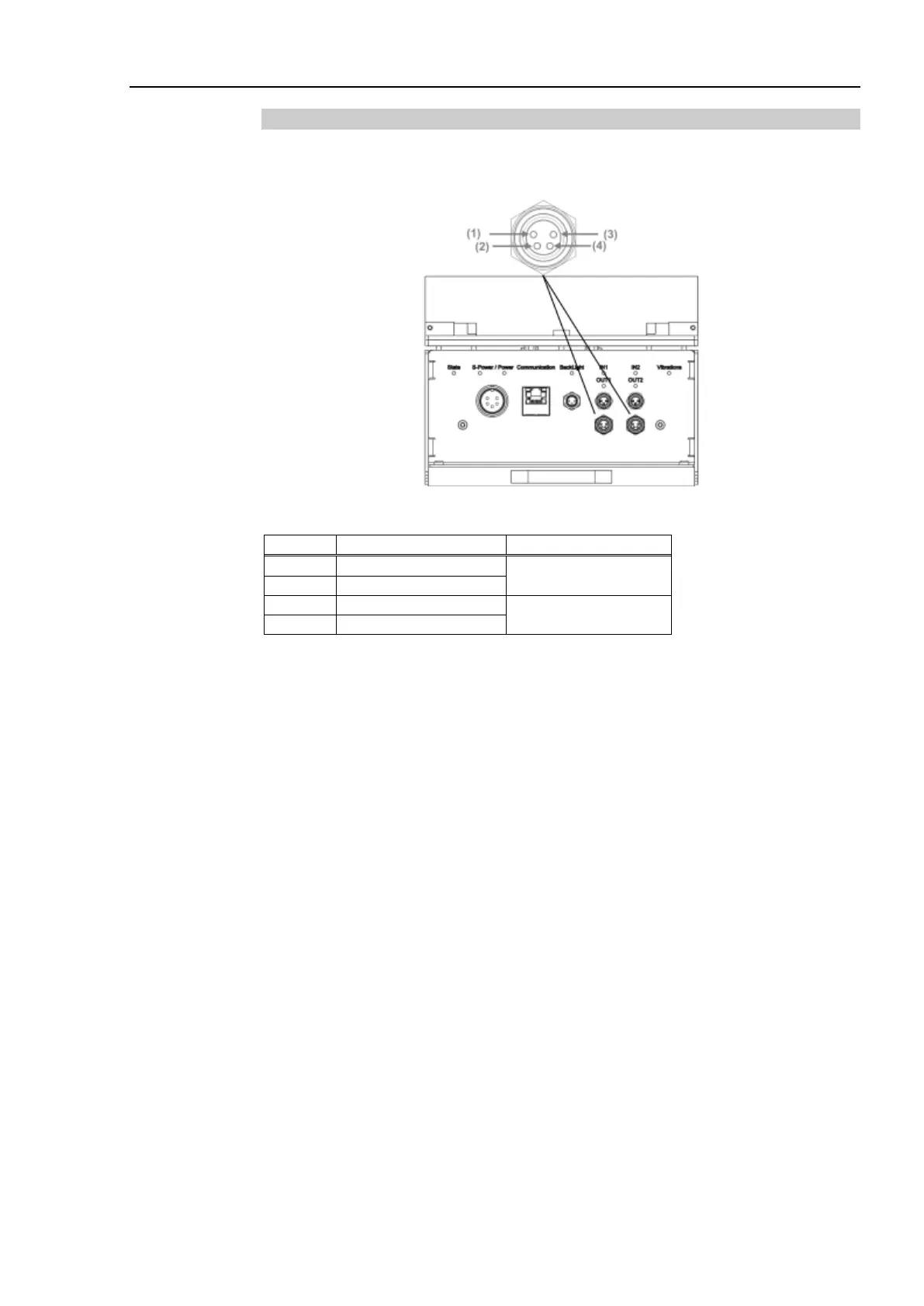

Figure 2-11: Digital output for hoppers

Signal description

Hopper

(1)

(2)

(3)

0V GND

Digital Output 1

(4)

+24VDC

Connector type (on IF-240 side): M8, 4P, male
