Epson RC+ 7.0 - 2.5 Mechanical interfaces

2. Description
16 Part Feeding 7.0 IF-240 Rev.5
2.5 Mechanical interfaces
2.5.1 Mounting the IF-240
To ensure proper behavior of the IF-240, secure fastening to a solid surface is necessary.
The holes in the base plate of the IF-240 can be used to attach it with four M6 screws.
Repeatable positioning of the IF-240 can be done by using positioning pins (possible on
both sides).

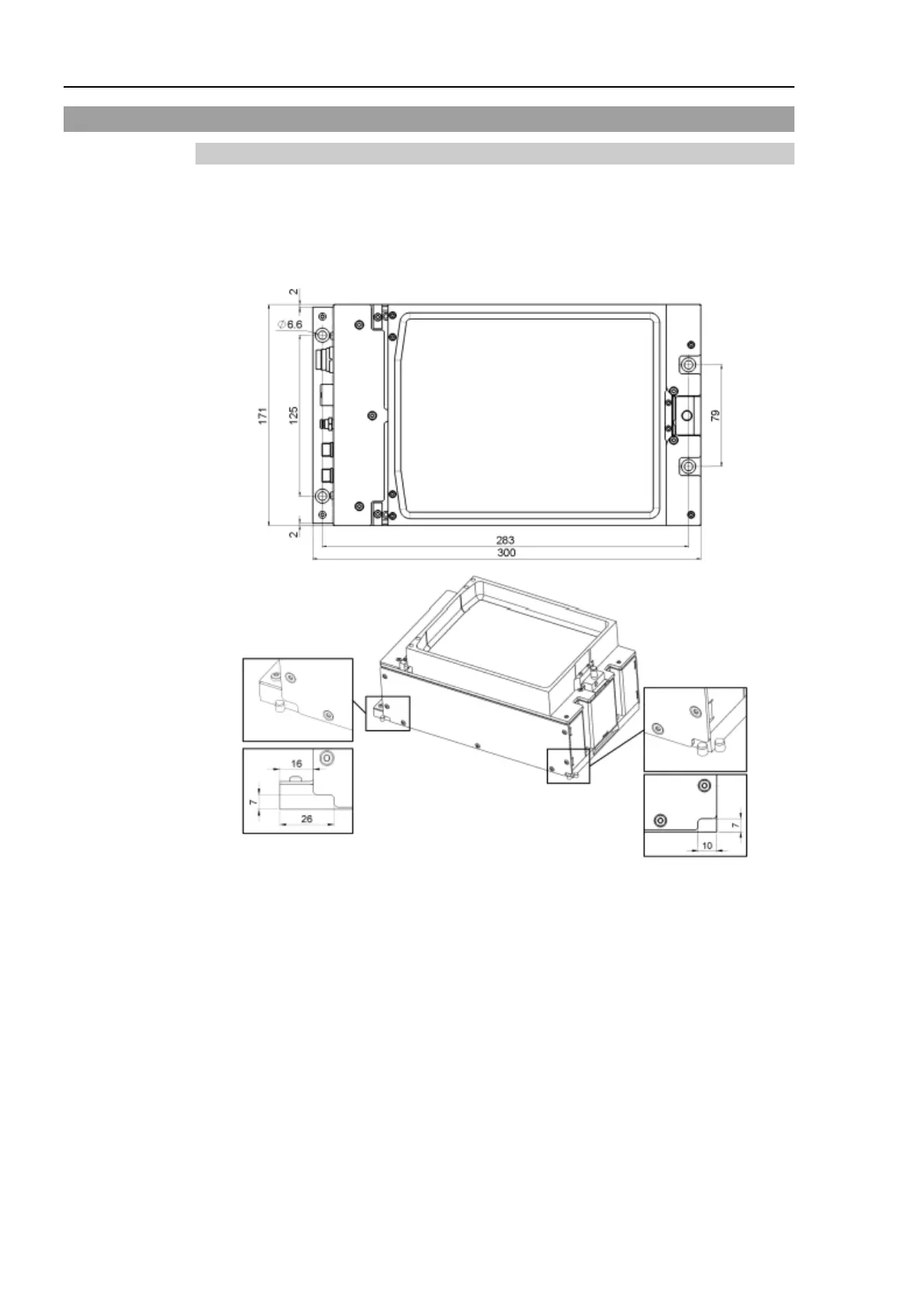

Figure 2-12: Mounting of the IF-240
