4. Maintenance and component replacement

Part Feeding 7.0 IF-240 Rev.5 27

4.2.2 Remove the platform module

DANGER

Be sure that the backlight is off before removing the platform

module.

Risk of crushing. Do not place your finger between the platform and the locking

mechanism.

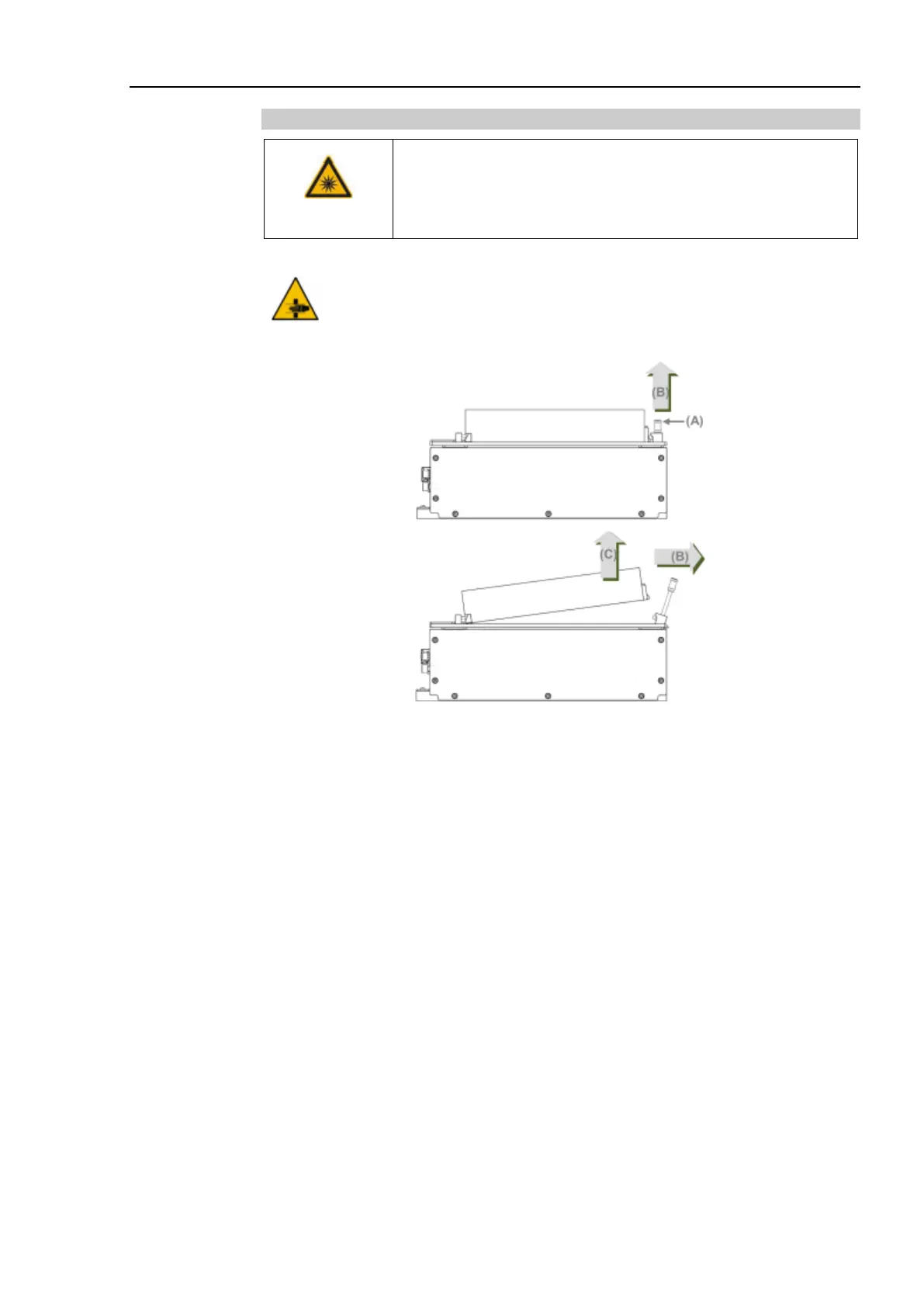

Figure 4-1: Remove the platform

Step 1

Pull out the integrated tool (A) and move it away for freeing the platform (B).

Step 2

Take the platform out (C). Release the tool – the mechanism as reverse operation from

step 1 to let it return to its initial position.
