4. Maintenance and component replacement
30 Part Feeding 7.0 IF-240 Rev.5
Step 3

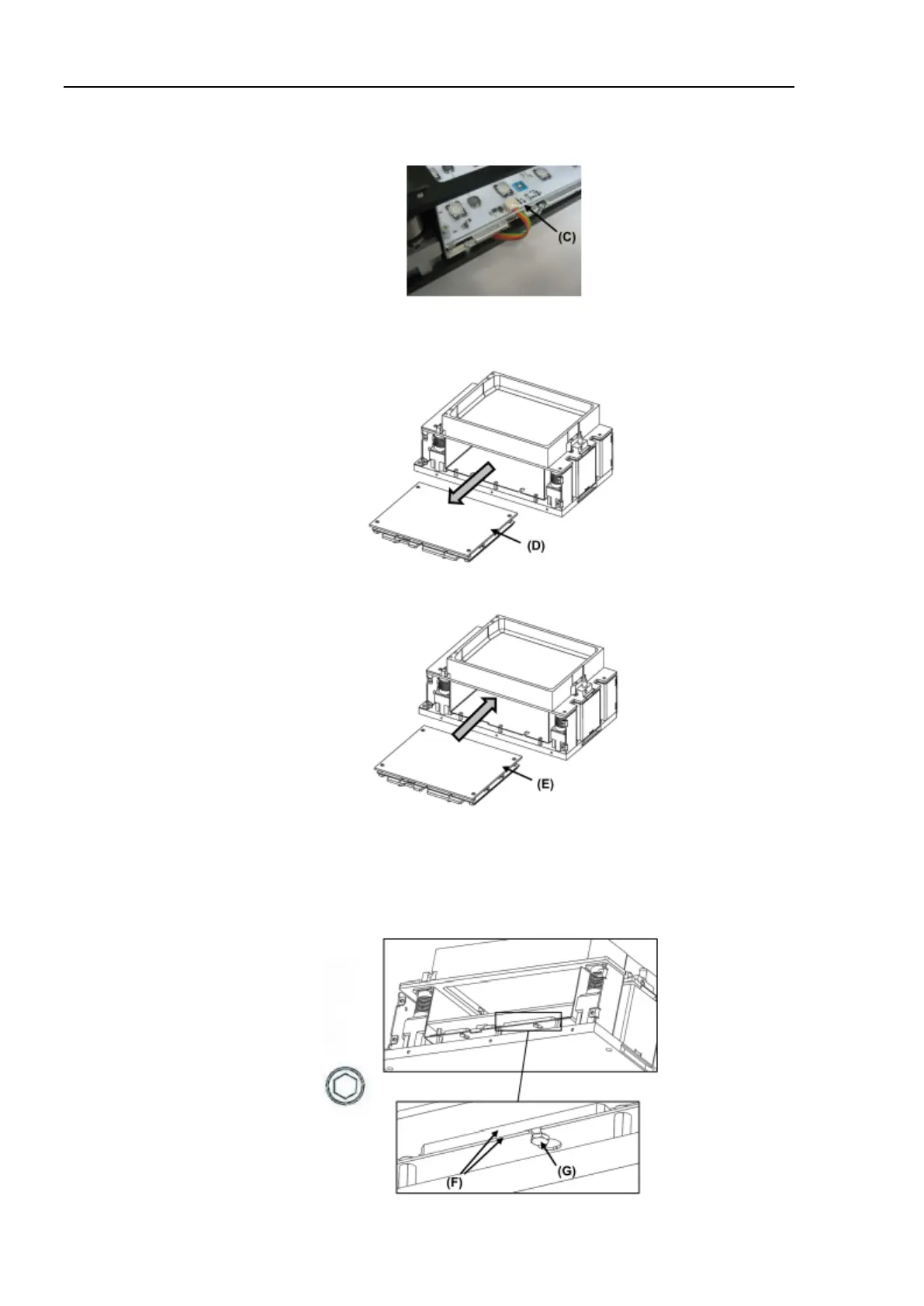

Unplug the backlight connector (C).
Step 4
Remove the old backlight (D).
Insert the new backlight (E).
Step 5
Align the backlight module flush with the mirror support (F) and tighten the four bolts (G).
Use a flat wrench size 5.5.
