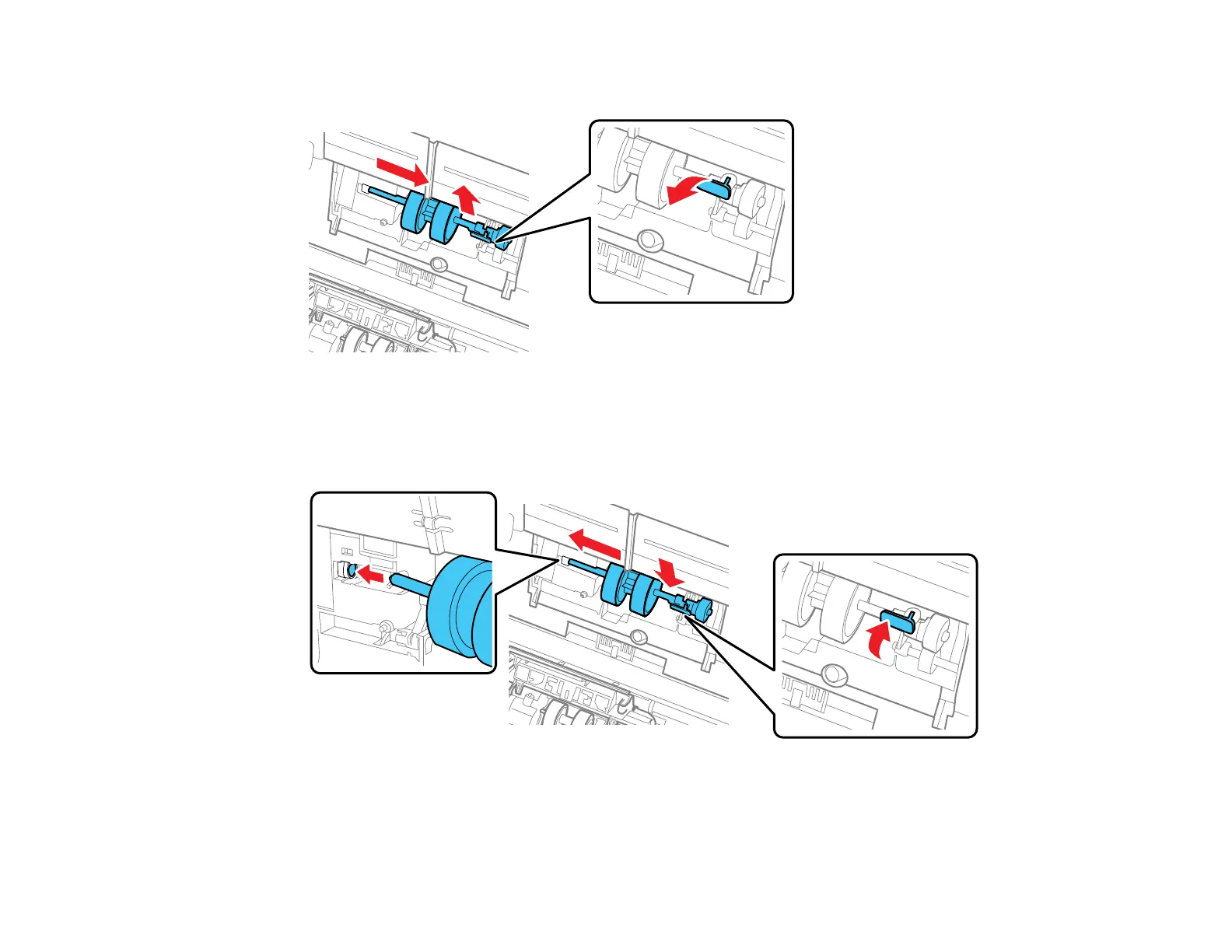

6. Pull down the tab on the pickup roller and slide the roller to the right to remove it.
Note: Do not use force to pull out the pickup roller; doing so may damage the inside of the scanner.
7. To install the new pickup roller, align the notches on the roller unit and slide it to the left. Press up on
the tab to secure the roller.
