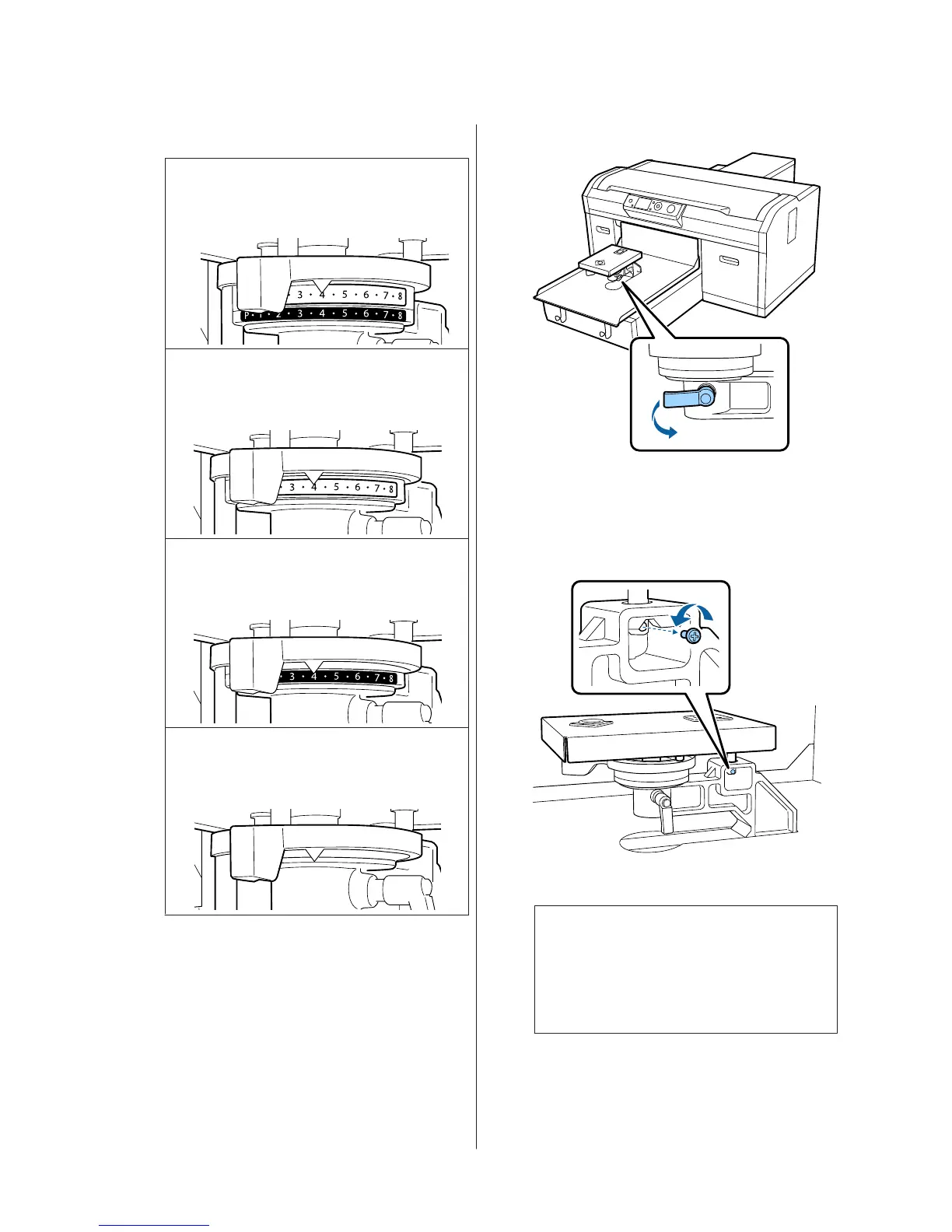

When using L, M, S, and XS size platens
For T-shirts or sweatshirts with a thickness
up to 7.0 mm
*
Attach spacers a and b.
For fabric with a thickness of 5.0 to 13.0
mm
*
Attach spacer a only.
For fabric with a thickness of 9.0 to 17.0
mm
*
Attach spacer b only.
For fabric with a thickness of 15.0 to 24.0
mm
*
Remove spacers a and b.
* The values indicated are when using a grip pad
covered platen. When using a platen without
grip pad attached, the media you are printing on
can be 1.0 mm thicker.
If you do not need to change the number of
spacers, go to step 13.
If you do need to change the number of spacers,
go to step 5.
E
Loosen the fixing lever.
F
Use the cross-head screwdriver to remove the
screws securing the platen installation plate.
Make sure you keep the removed screws in a safe
place as you need them when attaching spacers a
and b.
G
Remove the platen installation plate.
c
Important:
Make sure you do not drop the platen
installation plate as it is a precision part. If it is
dropped, the part could be deformed and may
not function correctly.
SC-F2100 Series Operator's Guide
Basic Printing
18
