Attaching the support bar
Keep the support bar in the stored position unless you are using the paper basket or the optional auto
take-up reel.

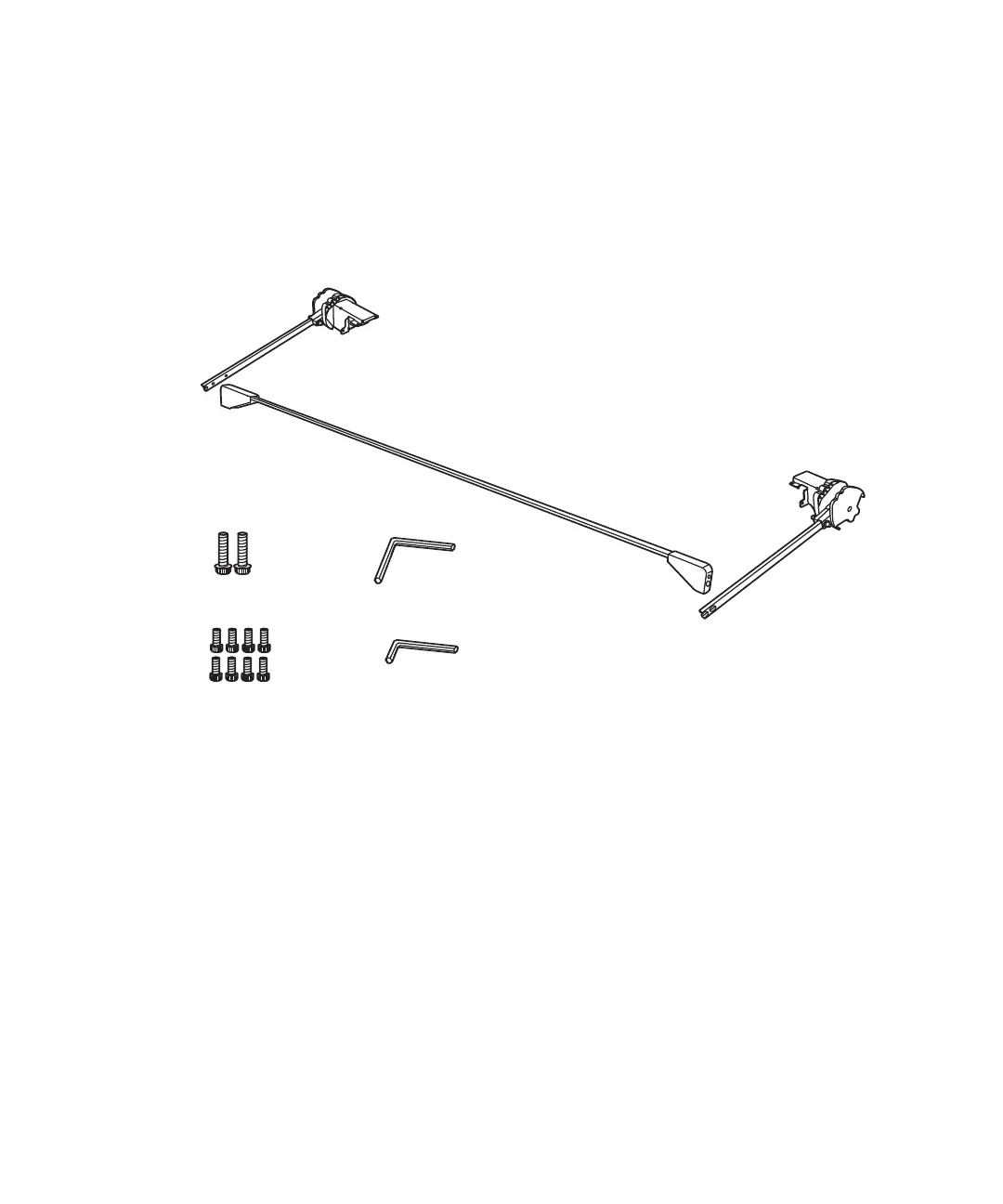

1. Make sure you have all the included support bar parts.
8 bolts (B)
2 bolts (
A)
Hex wrench (
a)
Hex wrench (
b)
Right support arm
Left support arm
Support bar
