Epson TM L90 Manufacturing Guide

Confidential
TITLE
SHEET
REVISION
NO.
NEXT SHEET
A
10 9
TM-L90
Roll Paper
Manufacturing Guide
2. If the transparency rates are out of the specified range (label + backing paper:
18% or less, backing paper: 47% or more), the printer detects a layout error.
However, paper identified with a layout error may be used when the detection hole
is prepared as follows and the position to detect the label may be shifted by
approximately 0.5 mm {0.02"}.

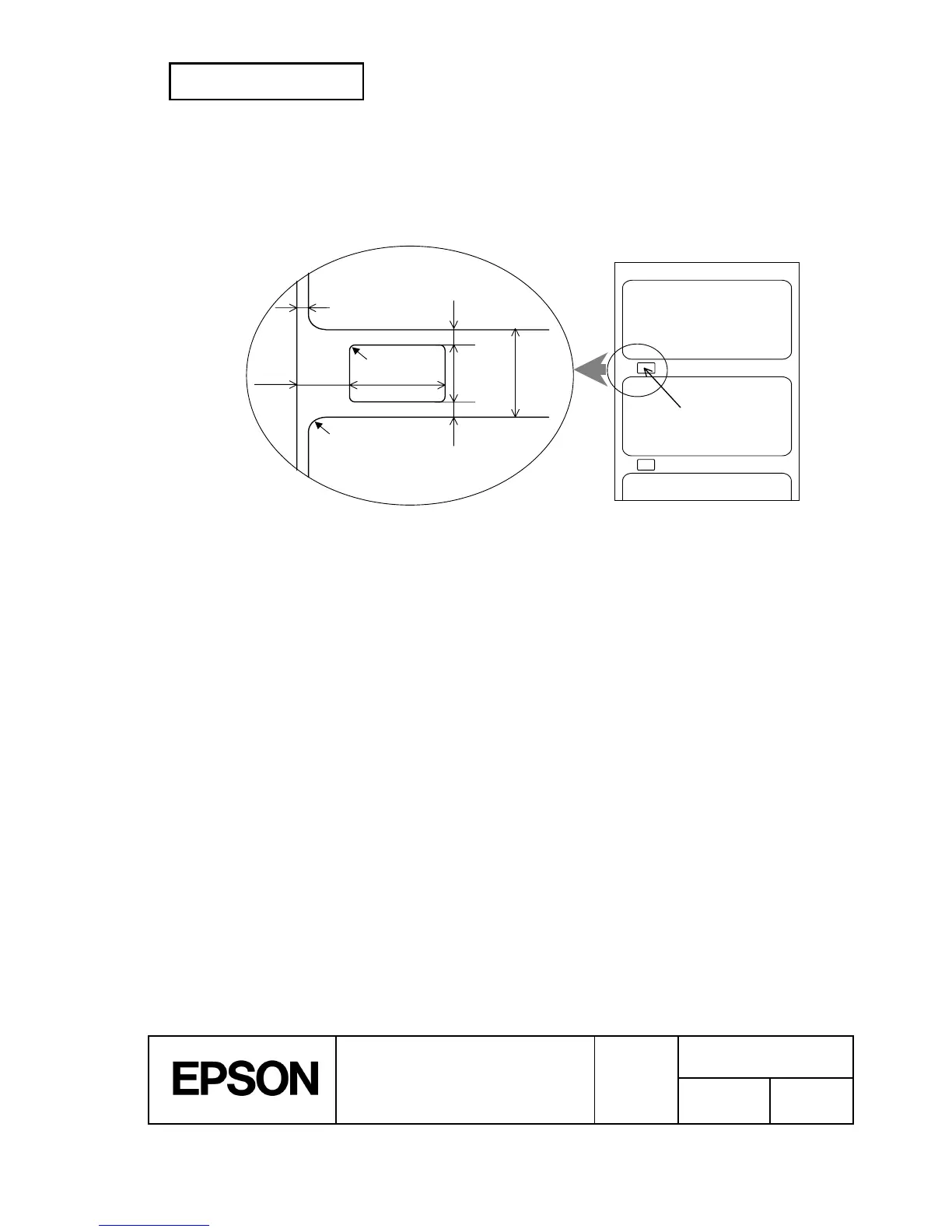

Detection hole
8.0 ± 0.1
(4)
0.5 ± 0.3
0.5 ± 0.3
6 ± 0.5
1.75 ± 0.5
Face (printed side) [Units: mm]
5.0 ± 0.5
Corner R2 or less
Corner R0.5
or less
3.10 Requirements for Black Mark Position for Die-Cut Label Paper
For die-cut labels with black marks, there are two reflective rate requirements, depending on the
size and position of black marks. Be sure to use label paper that meets either black mark
position requirement I or II as follows:

Epson TM L90 Specifications

General

Maximum resolution	203 x 203 DPI
Maximum roll diameter	90 mm
Supported paper width	37.5, 79 mm
RS-232 ports	1
Standard interfaces	RS-232
Connectivity technology	Wired
Country of origin	China
Dimensions (WxDxH)	140 x 203 x 148 mm
Flash memory	0.384 MB
Operating temperature (T-T)	5 - 45 °C
Pallet width	800 mm
Pallet height	2600 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Quantity per pallet layer (UK)	24 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2560 g
Quantity per pack	1 pc(s)
