TM-L90
Roll Paper
Manufacturing Guide

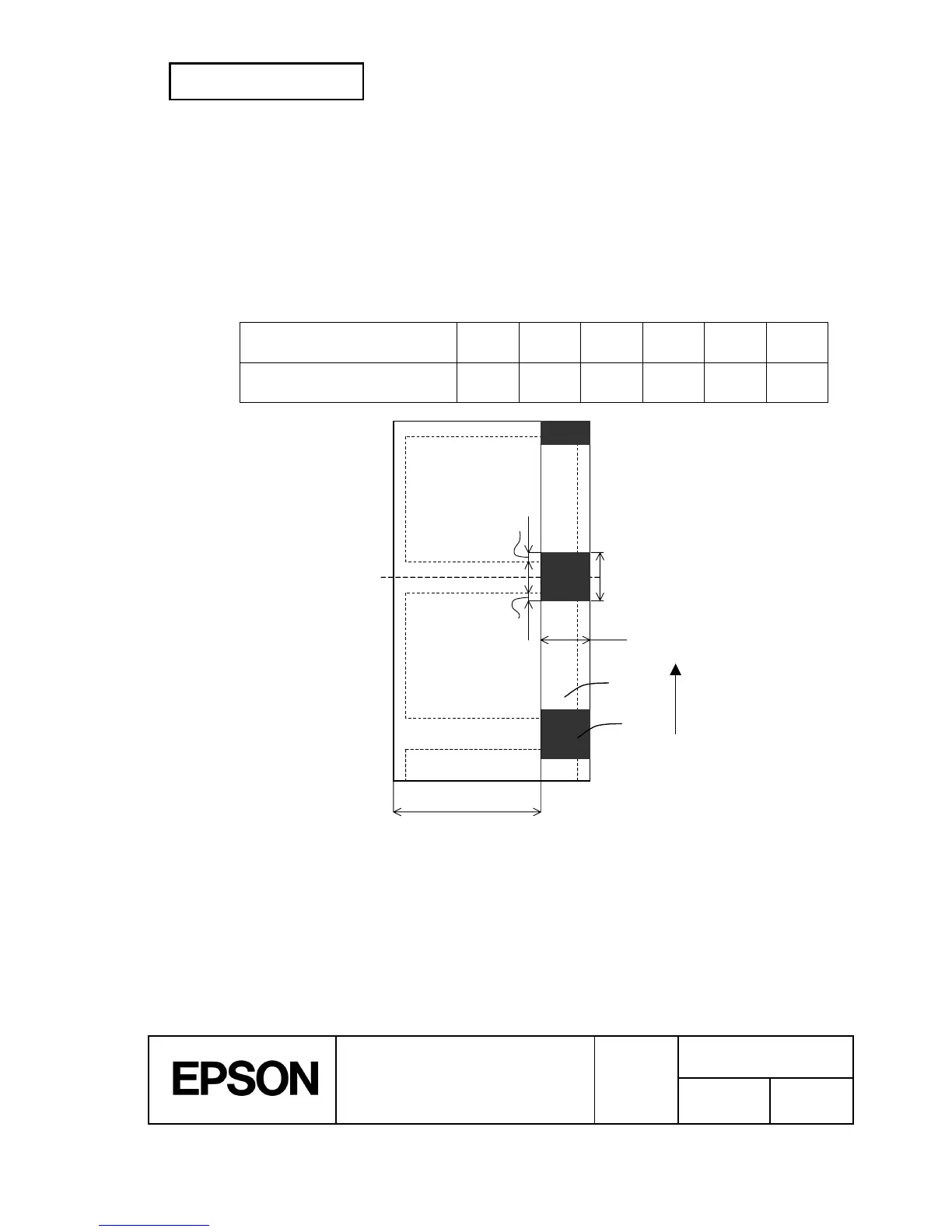

3.11 Requirements for Black Mark Position I
The black mark positions on the paper to be manufactured must meet the requirements in the
figure below. (The ESC/POS commands expand the settable range, omitting the margin settings
or the limitation on use (NOTE 2 of Section 3.6).) The reflective rates of the black mark portions
(1) and label portions (2) must meet the combinations shown in the table below (the reflective
rate is measured using the back of the paper, the non-printing side):
• Black mark portions must be printed on the back of paper (non-printing side).
• The length of the black mark must cover the space between labels (backing paper
between labels) completely (overlapping labels by 0 ~ 1 mm).
Reflecting rate for black mark
portion (1)
17% 16% 15% 14% 13% Less
Reflecting rate for label portion
(2)
90% 85% 80% 75% 70% More
15 or more
0 ~ 1
0 ~ 1
Preprintable area
Paper feeding direction
[Units: mm]
Back (non-printing side)
(Dotted lines indicate the label
position.)
4 ~ 7.5
(2)
(1)
Cutting
position
NOTE: Reflective rates are measured by the Macbeth PCM-II (Filter D) meter.
