Epson TM L90 Manufacturing Guide

Confidential
TITLE
SHEET
REVISION
NO.
NEXT SHEET
A
14 13
TM-L90
Roll Paper
Manufacturing Guide

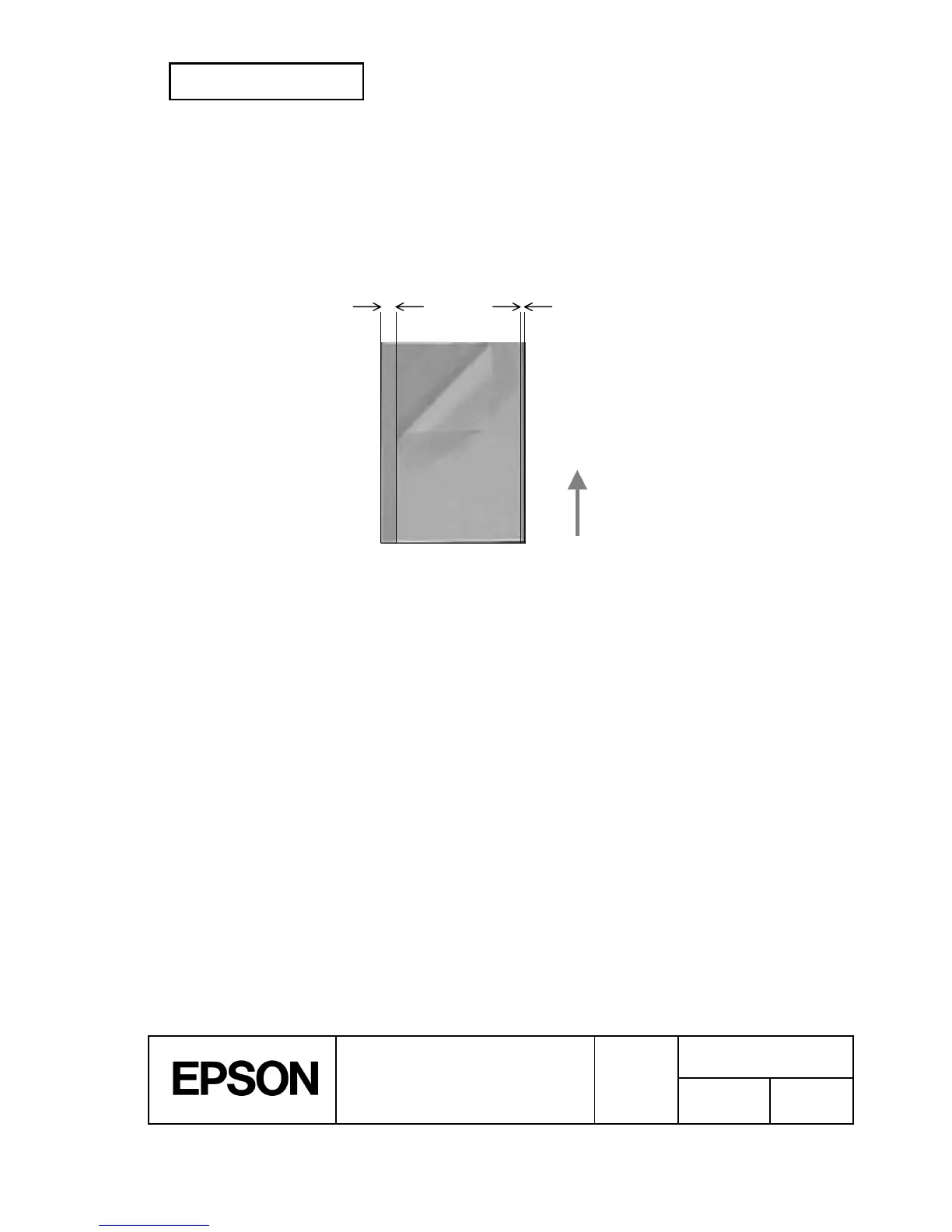

4.4 Requirements for Size of Continuous Label Paper
To make a cut-off edge, be sure to manufacture label paper that meets the requirements in the
figure below:
Note: “cut-off edge” is a method of cutting and removing the edge of the label in advance so that
the label can be peeled off easily from the backing paper.
Face stock (printing side)
Paper feeding
direction
*2 cut-off edge (b):
0.3 mm {0.12"} or more
*1 cut-off edge (a):
3.5 mm {0.14"} or more
Requirements for Size of Label Paper of the Cut-Off Edge Type
NOTES: *1. When performing a full-cut, for the cut-off edge (a): 3.5 mm {0.14"} or more is not
necessary; however, even though it is not necessary, it is recommended that
cut-off edges with approximately 2 mm {0.79"} width be provided for (a) and (b) so
that the label can be peeled off easily from the backing paper.
*2. When using a label with 80 mm {3.15"} paper width, the cut-off edge (b) is not
necessary. However, when labels with a width between 38 ~ 70 mm {1.5 ~ 2.76"}
are used, be sure to make the cut-off edge (b): 0.3 mm {0.12"} or more to prevent
the adhesive agent of the label roll paper from being attached to the platen.)

Epson TM L90 Specifications

General

Maximum resolution	203 x 203 DPI
Maximum roll diameter	90 mm
Supported paper width	37.5, 79 mm
RS-232 ports	1
Standard interfaces	RS-232
Connectivity technology	Wired
Country of origin	China
Dimensions (WxDxH)	140 x 203 x 148 mm
Flash memory	0.384 MB
Operating temperature (T-T)	5 - 45 °C
Pallet width	800 mm
Pallet height	2600 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Quantity per pallet layer (UK)	24 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2560 g
Quantity per pack	1 pc(s)
