Epson TM L90 Manufacturing Guide

Confidential
TITLE
SHEET
REVISION
NO.
NEXT SHEET
A
5 4
TM-L90
Roll Paper
Manufacturing Guide

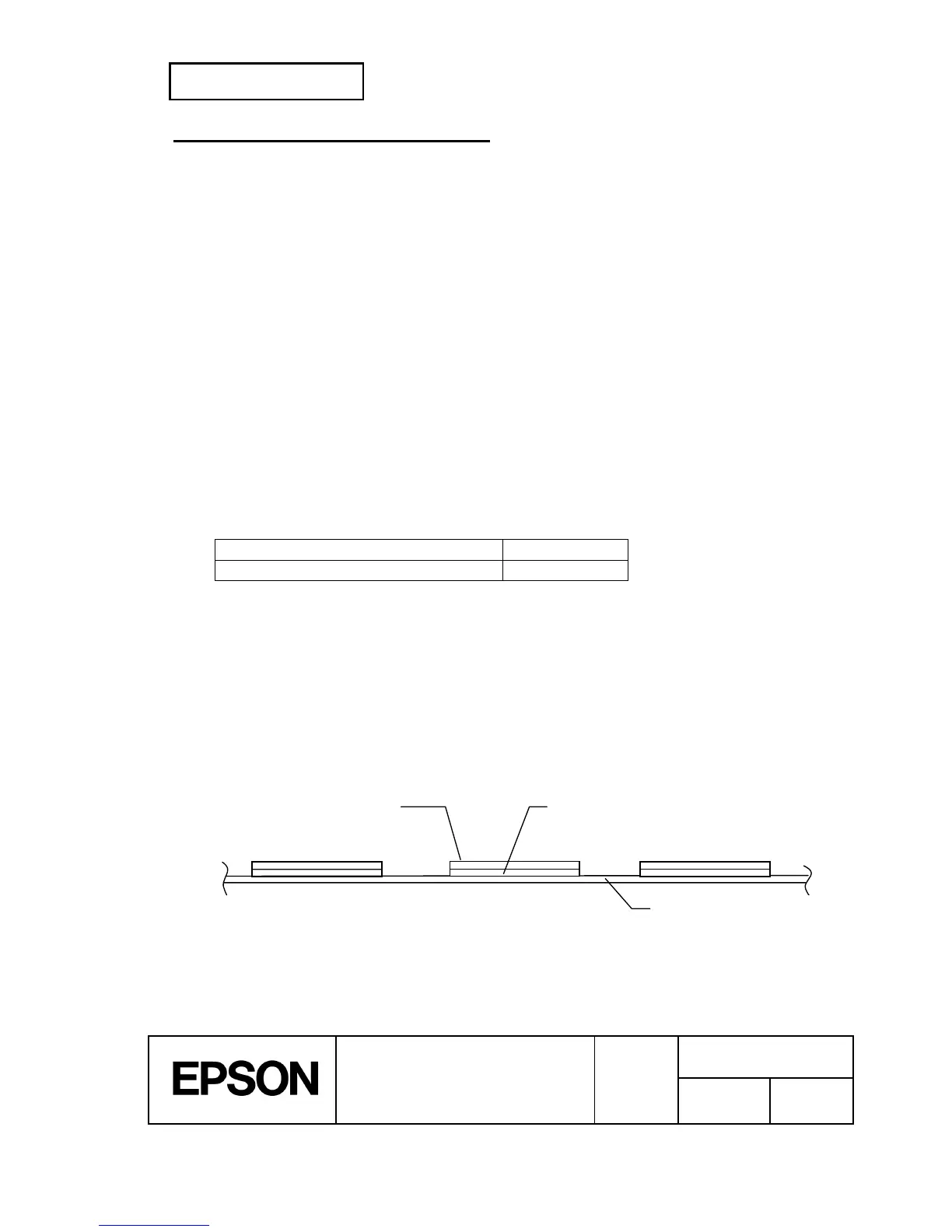

3. DIE-CUT LABEL ROLL PAPER
3.1 Die-Cut Label Paper
Die-cut label paper is label paper that has a predefined size of labels with an interval between
labels.
3.2 Specified Original Paper
The following original paper types can be used for die-cut label roll paper:
• Single-color thermal label paper type no.:
HD-75 Nippon Paper Industries Co., Ltd.
KL470 NAKAGAWA MFG (USA). Inc.
(Face stock is Kanzaki Specialty Paper (USA))
KL80GT NAKAGAWA MFG (Germany). GmbH.
(Face stock is KANZAN Spezialpapiere GmbH (Germany))
• Two-color thermal label paper type no.:
BR21 OJITAC Co., Ltd.
3.3 Print Density Adjustment
For best print quality and reliability, select the proper print density for the paper type used as
described in the table below. If printing is performed with a density that exceeds the density
described in the table below, the reliability is not guaranteed. Print density can be set with a
software command.
Original paper no. Density level
HD-75, KL470, KL80GT, BR21 130%
3.4 Paper to Use for High Speed
If any of the following original paper types of thermal paper are used, the memory switch for the
customized value setting can be used to set the maximum print speed up to 150 mm/s {5.91
"
/s}
(level 9). Default is 120 mm/s {4.72"/s}:
• HD-75, KL470, KL80GT
3.5 Requirements for Die-Cut Label Paper Thickness and Peeling Strength
Requirements for the thickness of the die-cut label paper, peeling strength against backing
paper, and the adhesive agent that can be used with the printer are shown in the figure below:
Thermal paper (label)
Thickness: 70 ~ 92 µm
A
dhesive agent (acrylic emulsion)
Thickness: 9 ~ 21 µm
Peeling strength (against backing paper)
0.098 N/25 mm or more (JIS Z0237)
Backing paper
(separation paper)
Thickness: 41 ~ 71 µm
Die-Cut Label Paper Thickness Requirements

Epson TM L90 Specifications

General

Maximum resolution	203 x 203 DPI
Maximum roll diameter	90 mm
Supported paper width	37.5, 79 mm
RS-232 ports	1
Standard interfaces	RS-232
Connectivity technology	Wired
Country of origin	China
Dimensions (WxDxH)	140 x 203 x 148 mm
Flash memory	0.384 MB
Operating temperature (T-T)	5 - 45 °C
Pallet width	800 mm
Pallet height	2600 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	112 pc(s)
Quantity per pallet (UK)	168 pc(s)
Quantity per pallet layer	16 pc(s)
Quantity per pallet layer (UK)	24 pc(s)
Package depth	257 mm
Package width	193 mm
Package height	241 mm
Package weight	2560 g
Quantity per pack	1 pc(s)
