Chapter 5 Handling

Roll Paper Cover does not Open

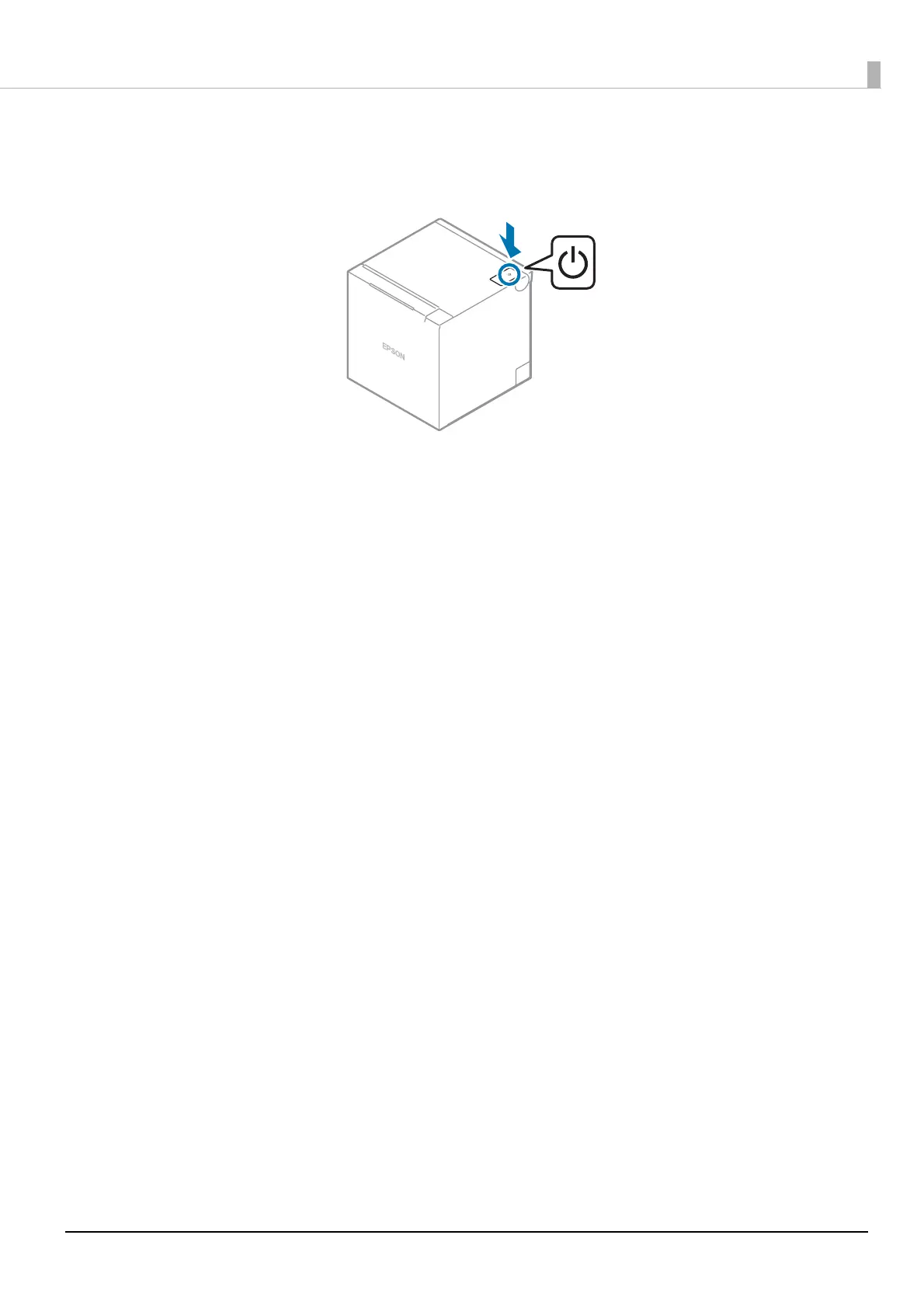

When the roll paper cover does not open using the lever, restart the printer.
