Epson TM-T70-i Technical Reference Guide

48
Connecting the Printer to the System
For Ethernet Interface
Connect the printer to a network by a LAN cable via a hub.

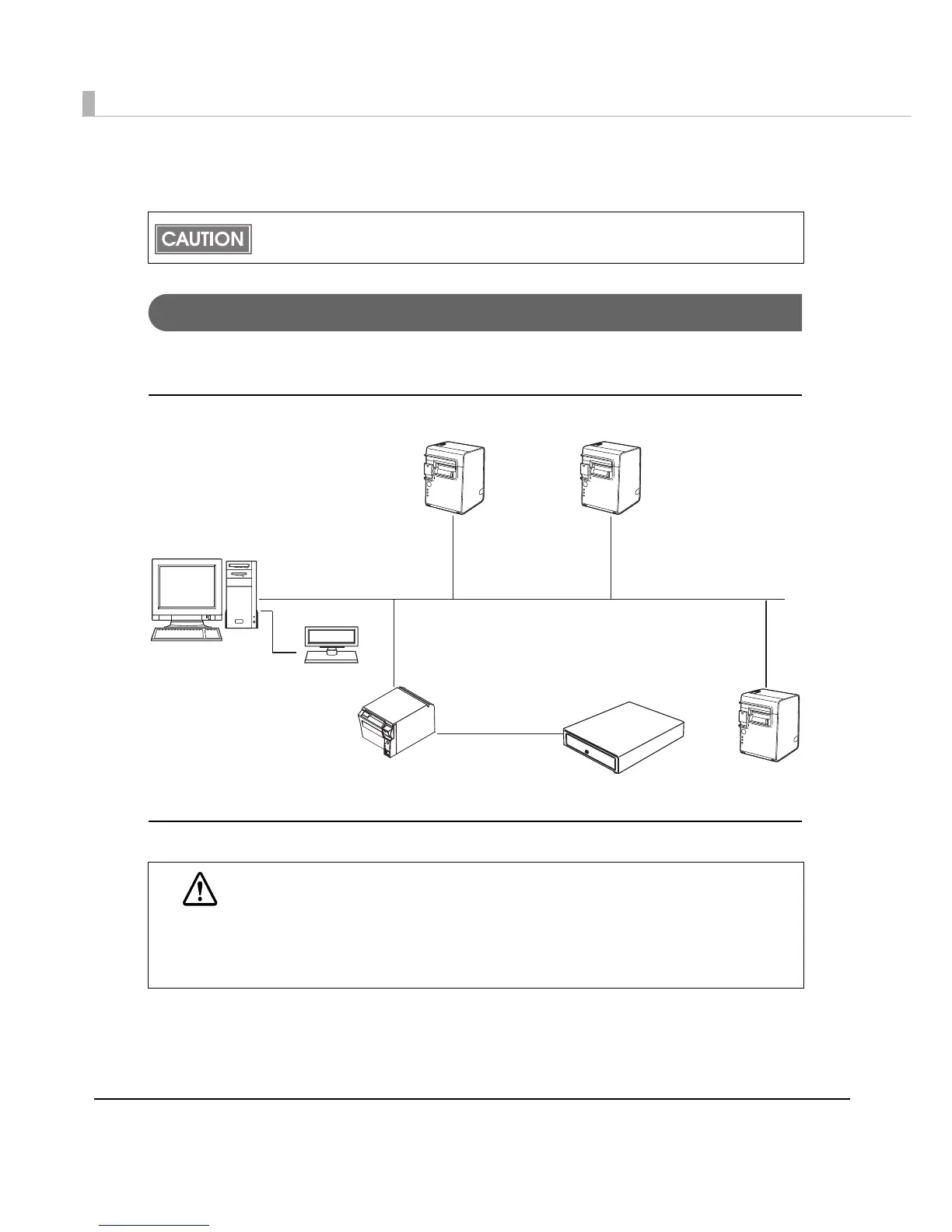

Ethernet interface connection diagram
Connecting the LAN interface cable
The printer uses the modular connectors specifically designed for the cash drawer. Do not
connect these connectors to an ordinary telephone line.
CAUTION
 When LAN cables are installed outdoors, make sure devices without proper surge
protection are cushioned by being connected through devices that do have surge
protection. 
Otherwise, the devices can be damaged by lightning.
 Never attempt to connect the customer display cable, drawer kick-out cable, or a
standard telephone line cable to the 10BASE-T/100BASE-TX LAN connector.
TM-T70-i
Serial cable
Modular cable
Cash drawer
10BASE-T/100BASE-TX
DM-D

Epson TM-T70-i Specifications

General

Type	POS printer
Character size	1.69 x 3.38 mm
Print technology	Thermal
Wi-Fi	No
Ethernet LAN	Yes
Ethernet LAN data rates	10, 100 Mbit/s
USB connector	Micro-USB, USB Type-A
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Connectivity technology	Wired
Mean cycles between failures (MCBF)	52000000
Internal memory	256 MB
Autocutter durability	1.5 million cuts
Mean time between failures (MTBF)	360000 h
Voltage	24 V
Product color	Black

Weight and Dimensions

Depth	194 mm
Width	125 mm
Height	114 mm
