Epson WF-7620 / WF-7610 / WF-7110 Series Revision B
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 39
Confidential

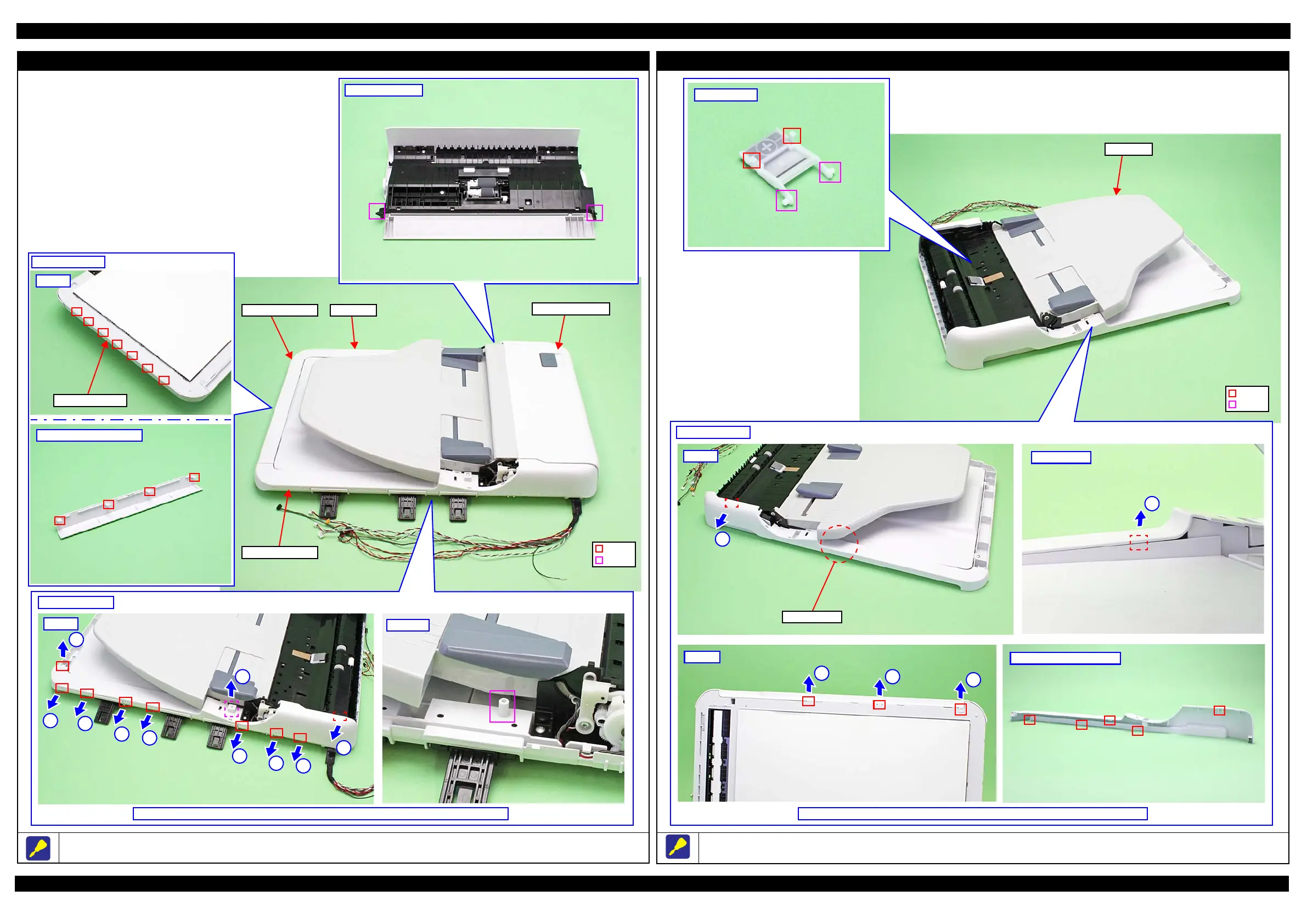

ADF Unit (WF-7620/7610 Series) (1)
The figures above indicate the hooks and dowels that secure the parts and units.
Bottom
ADF Cover Right
Hook
Dowel
2
7
10
3
4
5
8
9
1
6
Front
At Dowel
Release the hooks (x9) and the dowel in the order shown above, then remove the ADF Cover Rear.
Rear of ADF Cover Right
ADF Cover Assy
ADF Cover Right
ADF Cover Right ADF Unit
ADF Cover Rear
ADF Cover Rear
ADF Cover Assy
ADF Unit (WF-7620/7610 Series) (2)
The figures above indicate the hooks and dowels that secure the parts and units.
2
3
4
Bottom
ADF Pad Assy
1
Center hook
Front
Rear of ADF Cover Front
Center hook
5
Release the hooks (x5) in the order shown above, then remove the ADF Cover Front.
Hook
Dowel
ADF Unit
ADF Cover Front

Epson WF-7110 Series Specifications

General

Print Technology	Inkjet
Max Print Resolution	4800 x 2400 dpi
Duplex Printing	Yes
Input Tray Capacity	250 sheets
Wireless	Yes
Functions	Print
Maximum Resolution	4800 x 2400 dpi
Max Print Size	13" x 19"
Connectivity	USB, Ethernet, Wi-Fi
Paper Sizes	Letter, Legal, A4, A5, A6
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Print Speed (Black)	15 ppm (ISO)
