Epson WF-7620 Series Service Manual

Epson WF-7620 / WF-7610 / WF-7110 Series Revision B
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 46
Confidential

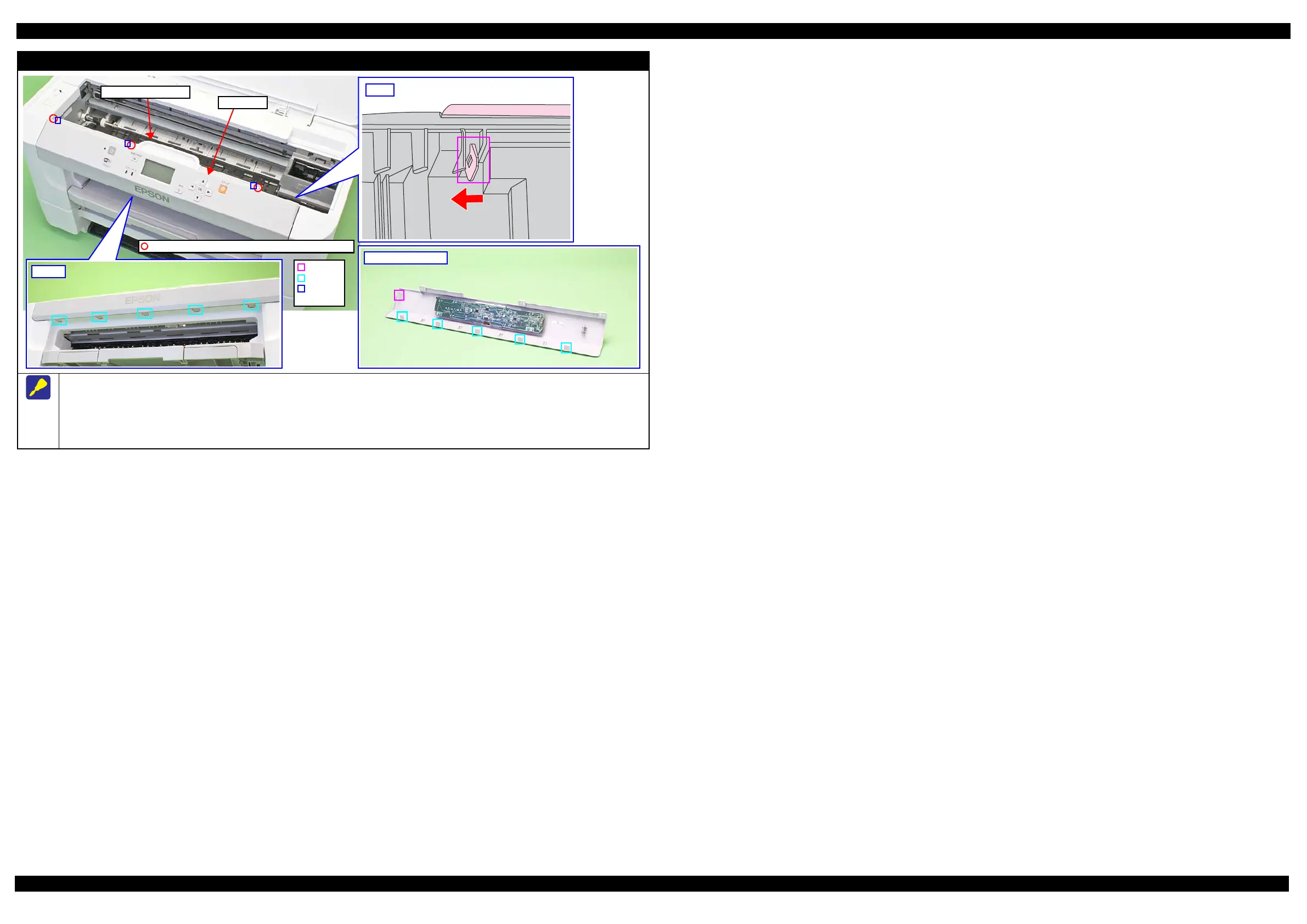

Panel Unit (WF-7110 Series)
Remove the Panel Unit as follows.
1. Remove the screws (x3) that secure the Panel Unit.
2. Disengage the holes (x3) on the Panel Unit from the dowels (x3) on the Housing Upper Assy.
3. Press the hook A on the rear of the Panel Unit in the direction of the arrow to release the hook.
4. Release the hook B (x6) on the bottom of the Panel Unit, and disconnect the Panel FFC from the connector on the Panel Unit, then remove the Panel Unit.
Bottom
Panel Unit
C.B.P-TITE SCREW 3x10 F/ZN-3C (6±1 kgf·cm)
Rear of Panel Unit
Rear
Hook A
Hook B
Dowel
and Hole
Housing Upper Assy

Epson WF-7620 Series Specifications

General

Functions	Print, Copy, Scan, Fax
Max Print Resolution	4800 x 2400 dpi
Automatic Duplex Printing	Yes
Scanner Type	Flatbed, ADF
Max Scan Resolution	1200 x 2400 dpi
ADF Capacity	35 sheets
Wireless Printing	Yes
Display	4.3" Color Touchscreen
Number of Paper Trays	2
Ink Type	DURABrite Ultra pigment ink
Fax Memory	Up to 180 pages
Fax Transmission Speed	33.6 Kbps
Print Technology	PrecisionCore Inkjet
Max Paper Size	13 x 19 inch (A3+)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Input Paper Capacity	250 sheets
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print
Maximum Scan Area	11.7 x 17 inches
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Speed (ISO)	Black: 18 ppm, Color: 10 ppm
Dimensions	22.3 x 19.1 x 13.4 inches
