Epson WF-7620 Series Service Manual

Confidential
Appendix Connector Diagram 85
Epson WF-7620 / WF-7610 / WF-7110 Series Revision B

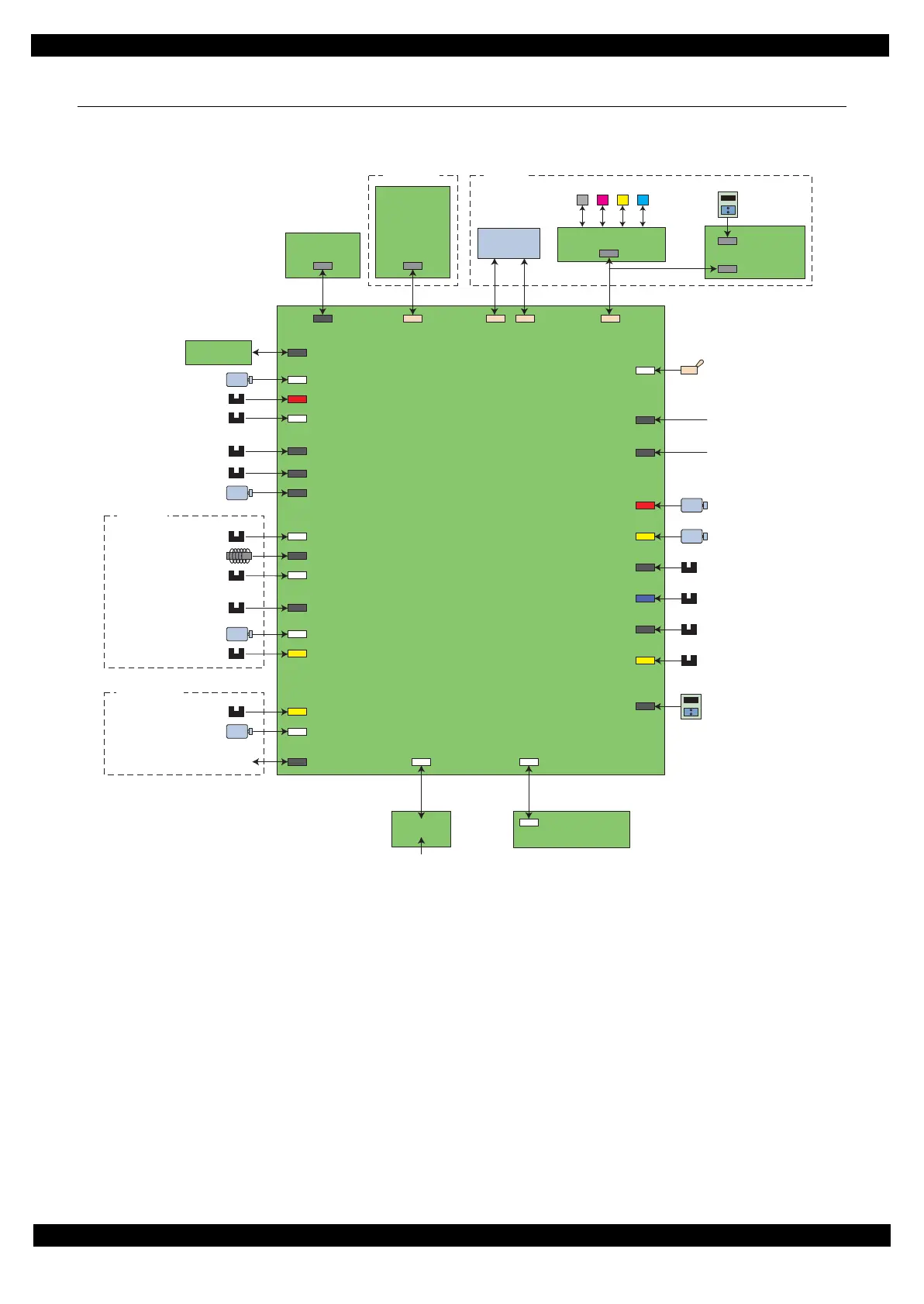

5.1 Connector Diagram
Cable connections of this printer are shown below.
Figure 5-1. Connector Diagram
B
M
Y
C
AC in
J220
CN1
CSIC
CN2 CN21
CN1
CN2
CN44
CN41 CN42 CN43CN20
CN9CN501
CN30
CN5
CN59
CN52
CN60
CN51
CN31
CN77
CN73
CN76
CN74
CN32
CN70
CN72
CN33
CN71
CN53
CN4
CN2
CN34
CN35
CN54
CN57
CN56
CN55
CN45
PW Sensor
CR Encoder Board
ADF PE Sensor
Paper Support
Encoder Sensor
Wireless LAN Module
Printhead
CR Contact Module
ADF Unit
ADF Encoder Sensor
SD card
USB cable
ASF Motor
ASF Encoder Sensor
Frame Base 2nd Assy
Paper Stopper sensor
ASF PE Sensor
Paper Stopper Sensor
PIS Sensor
APG Motor
ADF Document Sensor
PE Sensor
APG Sensor
Duplex Unit
Cover Open Sensor
CR Motor
PF Motor
Scanner Open Sensor
Scanner Motor
ADF plunger
ADF Motor
Relay Board
CIS Module
Panel Board
PF Encoder Sensor
FAX Board
PS Board
Main Board
Cover Open Sensor
Scanner Unit
CR Unit
Panel Unit

Epson WF-7620 Series Specifications

General

Functions	Print, Copy, Scan, Fax
Max Print Resolution	4800 x 2400 dpi
Automatic Duplex Printing	Yes
Scanner Type	Flatbed, ADF
Max Scan Resolution	1200 x 2400 dpi
ADF Capacity	35 sheets
Wireless Printing	Yes
Display	4.3" Color Touchscreen
Number of Paper Trays	2
Ink Type	DURABrite Ultra pigment ink
Fax Memory	Up to 180 pages
Fax Transmission Speed	33.6 Kbps
Print Technology	PrecisionCore Inkjet
Max Paper Size	13 x 19 inch (A3+)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Input Paper Capacity	250 sheets
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print
Maximum Scan Area	11.7 x 17 inches
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Speed (ISO)	Black: 18 ppm, Color: 10 ppm
Dimensions	22.3 x 19.1 x 13.4 inches
