Epson WF-7620 Series Service Manual

Confidential
Appendix Protection for Transportation 86
Epson WF-7620 / WF-7610 / WF-7110 Series Revision B
5.2 Protection for Transportation
This section describes the cautions for packing the printer before returning it to the user.
5.2.1 Securing the CR Unit
 Purpose
To prevent damaging the CR Unit by shock during transportation.
 Risk if it is not performed.
Fatal error caused by the damage of the CR Unit.
 Preparation
Strong tape (Length: 220 mm, width: 22 mm, fold on end: 5 mm)
 Method
1. Turn off the printer to set the CR Unit to its home position.
2. Move the CR Unit until it hits the right frame from the home position.
3. Attach the strong tape on the CR Unit as shown below to secure the CR Unit.

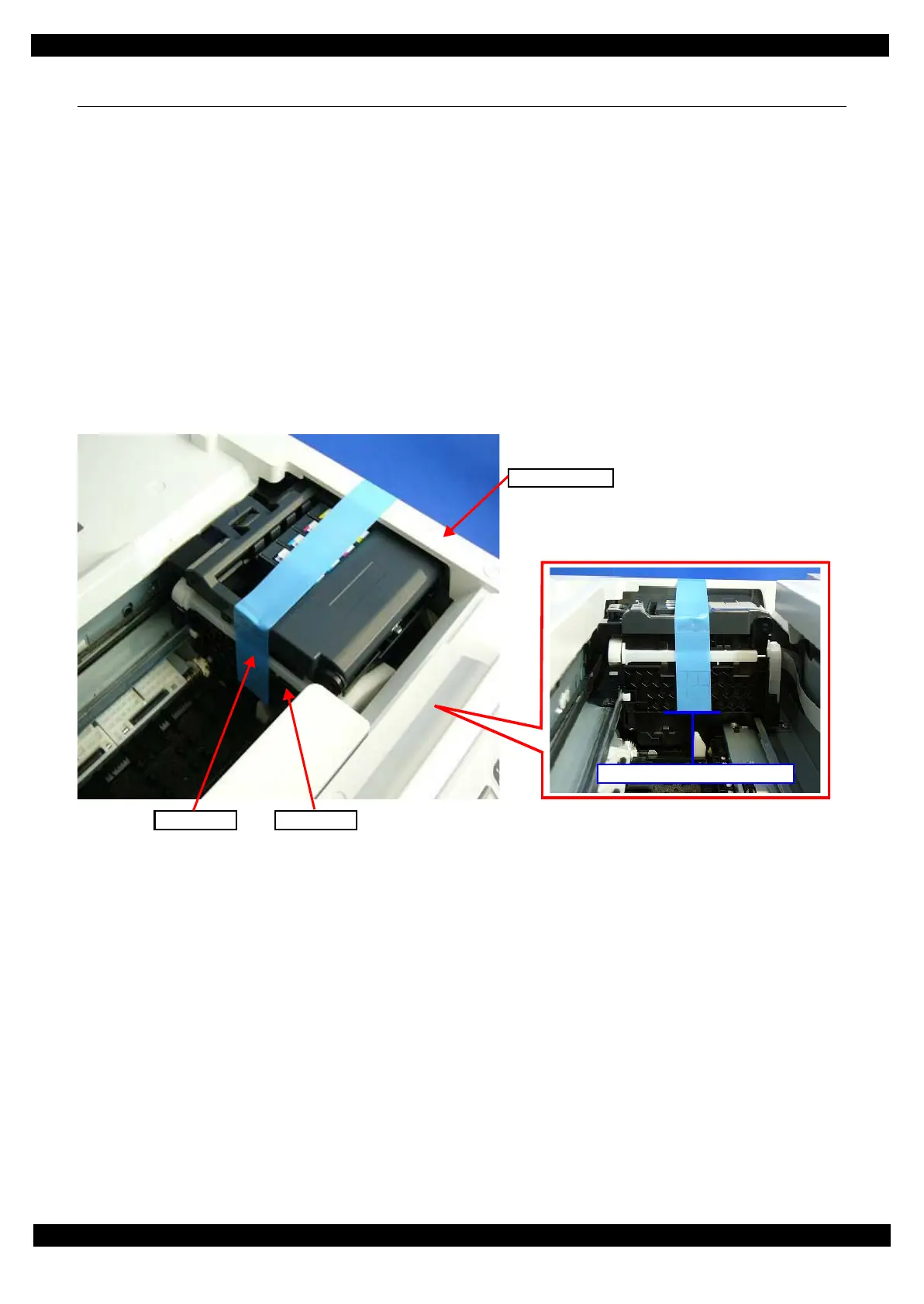

Figure 5-2. Securing the CR Unit
The tape attaching start position
Strong tape
CR Unit
Housing upper

Epson WF-7620 Series Specifications

General

Functions	Print, Copy, Scan, Fax
Max Print Resolution	4800 x 2400 dpi
Automatic Duplex Printing	Yes
Scanner Type	Flatbed, ADF
Max Scan Resolution	1200 x 2400 dpi
ADF Capacity	35 sheets
Wireless Printing	Yes
Display	4.3" Color Touchscreen
Number of Paper Trays	2
Ink Type	DURABrite Ultra pigment ink
Fax Memory	Up to 180 pages
Fax Transmission Speed	33.6 Kbps
Print Technology	PrecisionCore Inkjet
Max Paper Size	13 x 19 inch (A3+)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Input Paper Capacity	250 sheets
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print
Maximum Scan Area	11.7 x 17 inches
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Speed (ISO)	Black: 18 ppm, Color: 10 ppm
Dimensions	22.3 x 19.1 x 13.4 inches
