Adjustment Details of Adjustments 66
Epson WF-7620 / WF-7610 / WF-7110 Series Revision B

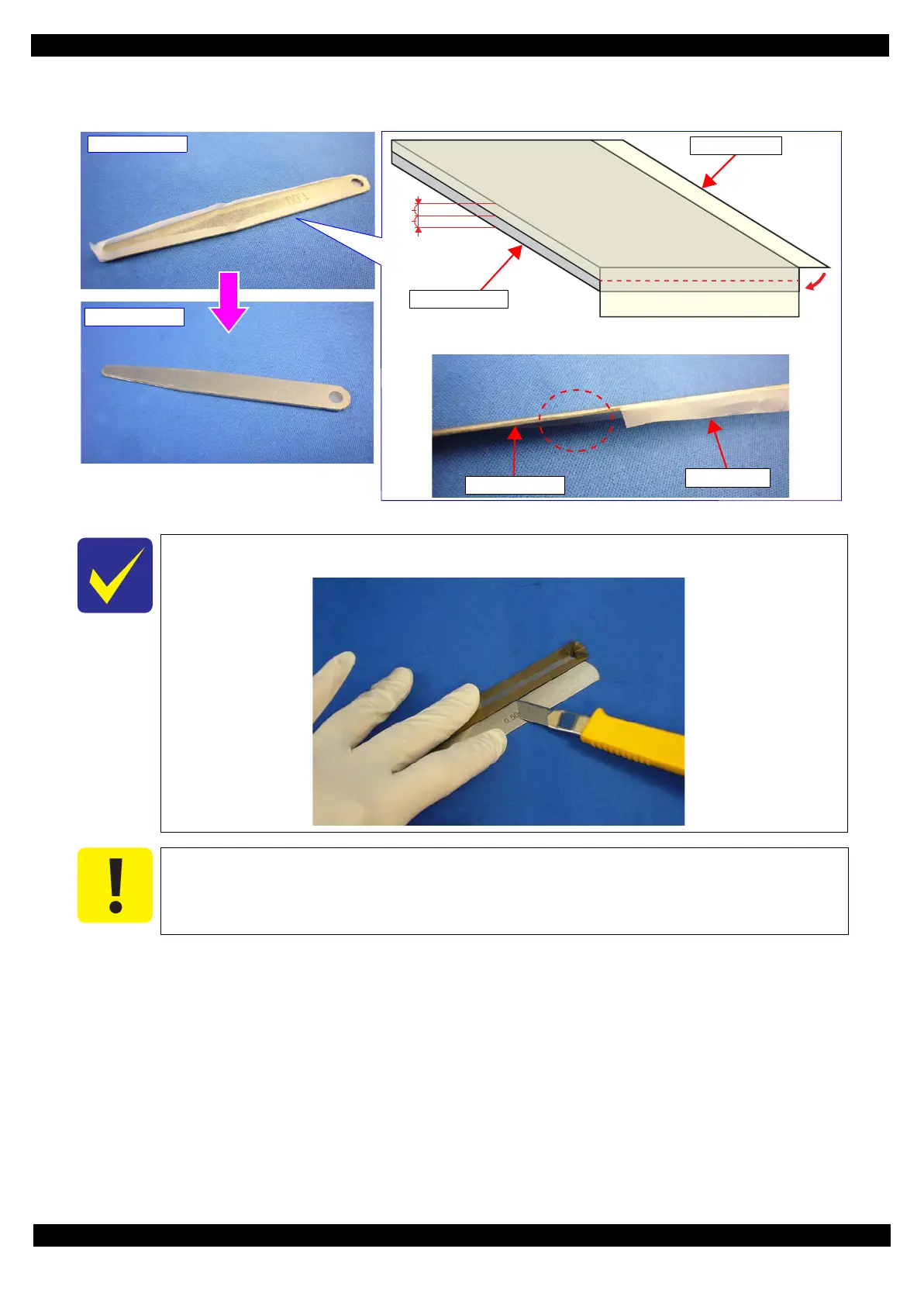

3. Fold the excess portions of Teflon tape along the edges of the thickness gauge, and trim the portions at about
the center in the thickness direction of the sides.
thickness gauge
Figure 3-5. Modification of thickness gauge (2)
4. Make sure any tears or burrs on the applied Teflon tape, then the modification of thickness gauges is complete.
When the Teflon tape is trimmed, the Teflon tape can be easily cut ut by guiding the gauge of
half thickness.
 Make sure to wear the heavy glove to prevent the cut the hand when the Teflon tape is
cut.
Before trimming
After trimming
Teflon tape
Thickness gauge
Teflon tape
Thickness gauge
Fold the tape at the edges and trim it at the center in the thickness direction.

Epson WF-7620 Series Specifications

General

Functions	Print, Copy, Scan, Fax
Max Print Resolution	4800 x 2400 dpi
Automatic Duplex Printing	Yes
Scanner Type	Flatbed, ADF
Max Scan Resolution	1200 x 2400 dpi
ADF Capacity	35 sheets
Wireless Printing	Yes
Display	4.3" Color Touchscreen
Number of Paper Trays	2
Ink Type	DURABrite Ultra pigment ink
Fax Memory	Up to 180 pages
Fax Transmission Speed	33.6 Kbps
Print Technology	PrecisionCore Inkjet
Max Paper Size	13 x 19 inch (A3+)
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Input Paper Capacity	250 sheets
Mobile Printing	Epson Connect, Apple AirPrint, Google Cloud Print
Maximum Scan Area	11.7 x 17 inches
Ink Cartridge Configuration	4 individual ink cartridges (Black, Cyan, Magenta, Yellow)
Print Speed (ISO)	Black: 18 ppm, Color: 10 ppm
Dimensions	22.3 x 19.1 x 13.4 inches
