2. INSTALLING OR REMOVING A BLADE
Warning: Only use genuine Erbauer blades
which are designed for this machine. Ensure that
the maximum speed of the blade is compatible
with the machine.
Note: It is recommended that the operator
considers wearing protective gloves when handling
the blade during installation or when changing the
machines blade.
1. Ensure the cutting head is up and the battery is
removed from the machine. See section (Installing/
removing the Battery Pack) below.
2. Press the lower guard lock lever and rotate the
lower guard upwards to access the blade cover
plate.

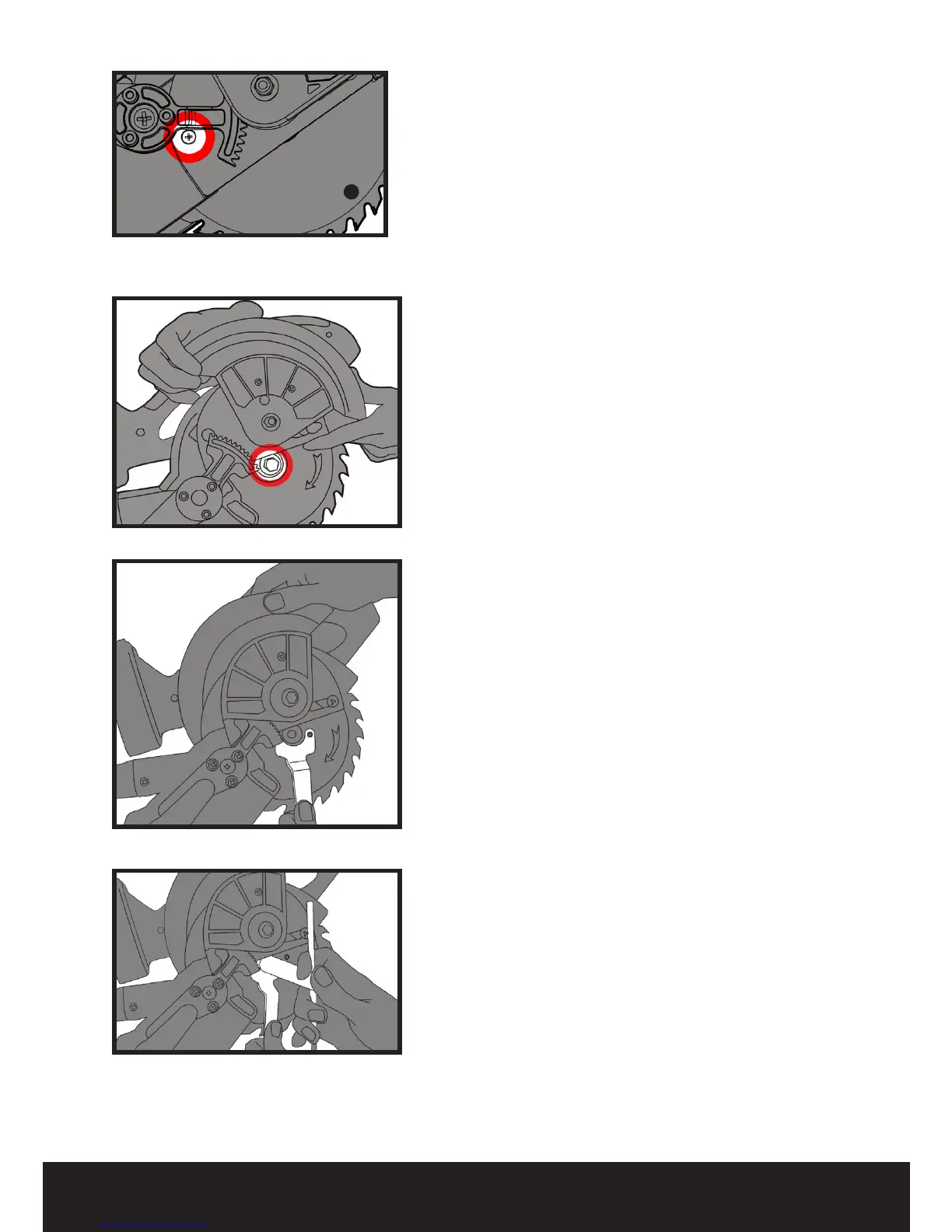

3 Release the cover plate from the machine by
removing the cross-headed screw securing the
black cover plate to the top guard (Fig 1). Store
this screw safely for future use.
4. The front locating screw is a xed shoulder
screw and should not be touched. Slide and rotate
the cover plate to expose the blade arbor nut. (Fig
2)
5. Locate the pins of the ‘C’ spanner into the holes
in the outer blade ange, and hold the spanner
rmly to prevent the arbor from rotating. (Fig. 3)
6. Using the supplied Hex-headed spanner release
the arbor screw to remove the blade. (Fig. 4)
Note: The arbor screw has a left hand thread.
Fig 3
Fig 4
Fig 2
Fig 1
1
ERBAUER 24V 165MM SINGLE BEVEL MITRE SAW
