4. THE TRIGGER SWITCH
The on/off trigger switch is located in the front
handle. To switch on, the safety lock button
located on the LH side of the handle just in front
of the laser slide switch must rst be pressed in.
(Fig 12)The trigger switch can then be used.
When a cut is completed and the trigger switch
is released the trigger safety lock button will
automatically lock the trigger switch in the ‘off’
position.
5. BODY AND HAND POSITION
a) Never place hands within the ‘no hands
zone’ (at least 150mm away from the blade).
Pictograms on the machines table are provided
as an aid to safe working practices. Keep hands
away from the path of the blade.
b) Hold the workpiece rmly to the fence
to prevent any movement. Use a clamp if
necessary but check that it is positioned so that
it does not foul the blade.
c) Before attempting a cut, make a ‘dry run’ with
the power off so that you can see the path of the
blade.
d) After completing a cut keep your hands in
position until the trigger has been released and
the blade has come to a complete halt.
6. CHOP CUTTING
The slide lock knob (Fig 13) is tightened to lock
the cutting head at its rearmost position. The
saw handle is pushed down to cut through the
workpiece. This type of cut is used mainly for
narrow pieces.
a) Place the workpiece on the table and against the
fence in the desired position. Secure with clamps if
necessary.
b) Grasp the saw handle.
c) Turn on the saw using the trigger switch and
allow the blade to reach full operating speed.

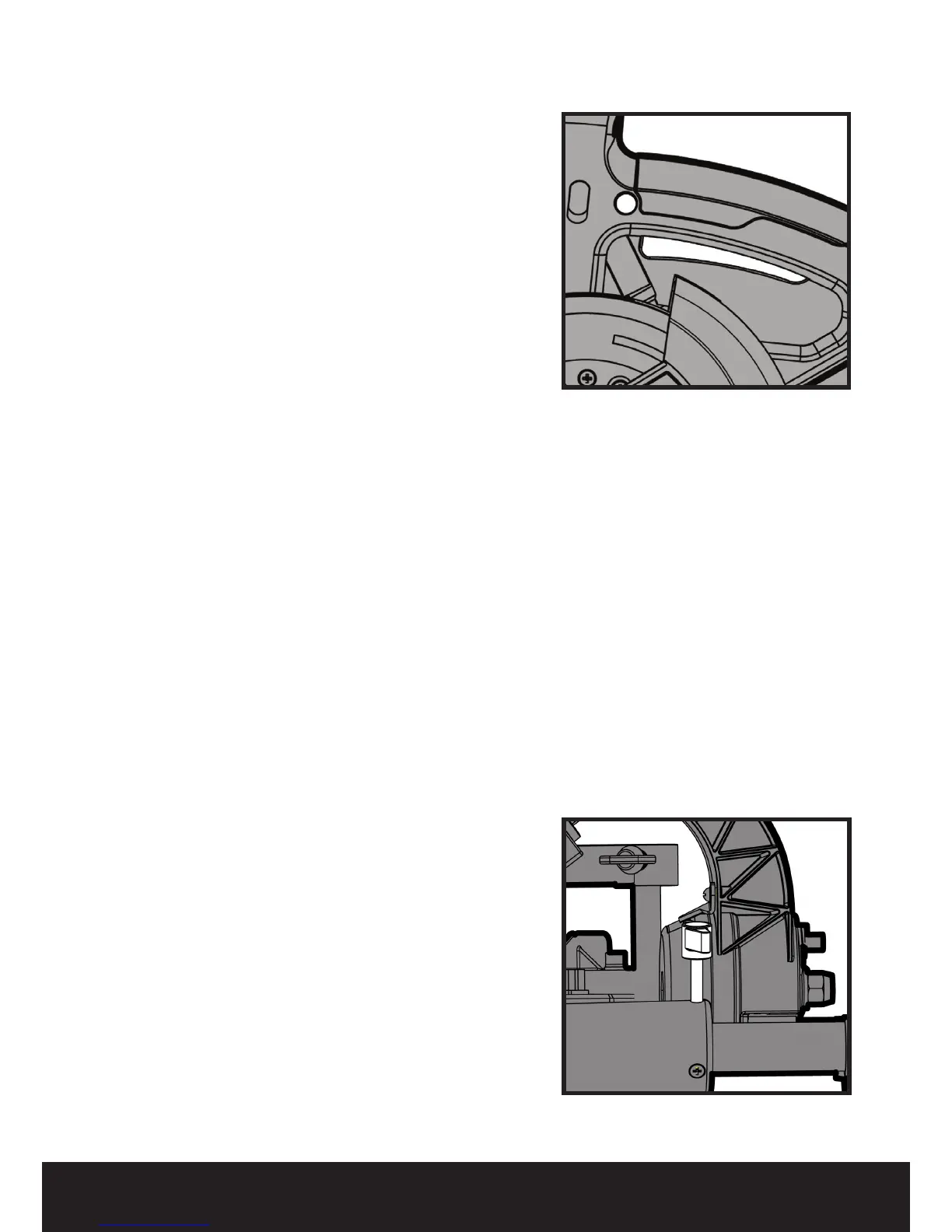

Fig 12
Fig 13
ERBAUER 24V 165MM SINGLE BEVEL MITRE SAW
