• Always ensure the laser beam is only aimed
at workpieces without reective surfaces, i.e.
wood or rough coated surfaces are acceptable.
• Do not change the laser module assembly
with a different type.
• Repairs to the laser module must only be
conducted by Erbauer Power Tools or their
authorised agent.
2. RELEASING THE SAW HEAD
a) Gently press down on the cutting handle.
b) Pull out the cutting head stop latching knob
and allow the head to rise to its upper position.
(Fig 11)
c) Twisting the latching knob ¼ of a turn in
either direction will prevent the latching knob
from re-engaging its locking socket.
d) When operations are completed the latching
knob should be returned to its original position
so that the cutting head can be locked in its
down position
Note; We recommend that when the machine is
not in use the cutting head is locked in its down
position, and the latching knob fully engaged in
its socket.
3. PREPARING TO MAKE A CUT
a) Avoid awkward operations and hand
positions where a sudden slip could cause
ngers or hands to move into the blade.
b) Cut only one workpiece at a time.
c) Clear everything except the workpiece and
related support devices away from the blade
before turning the mitre saw on.
d) Secure workpiece using clamps to hold
the workpiece securely and use additional
worpiece supports as necessary.

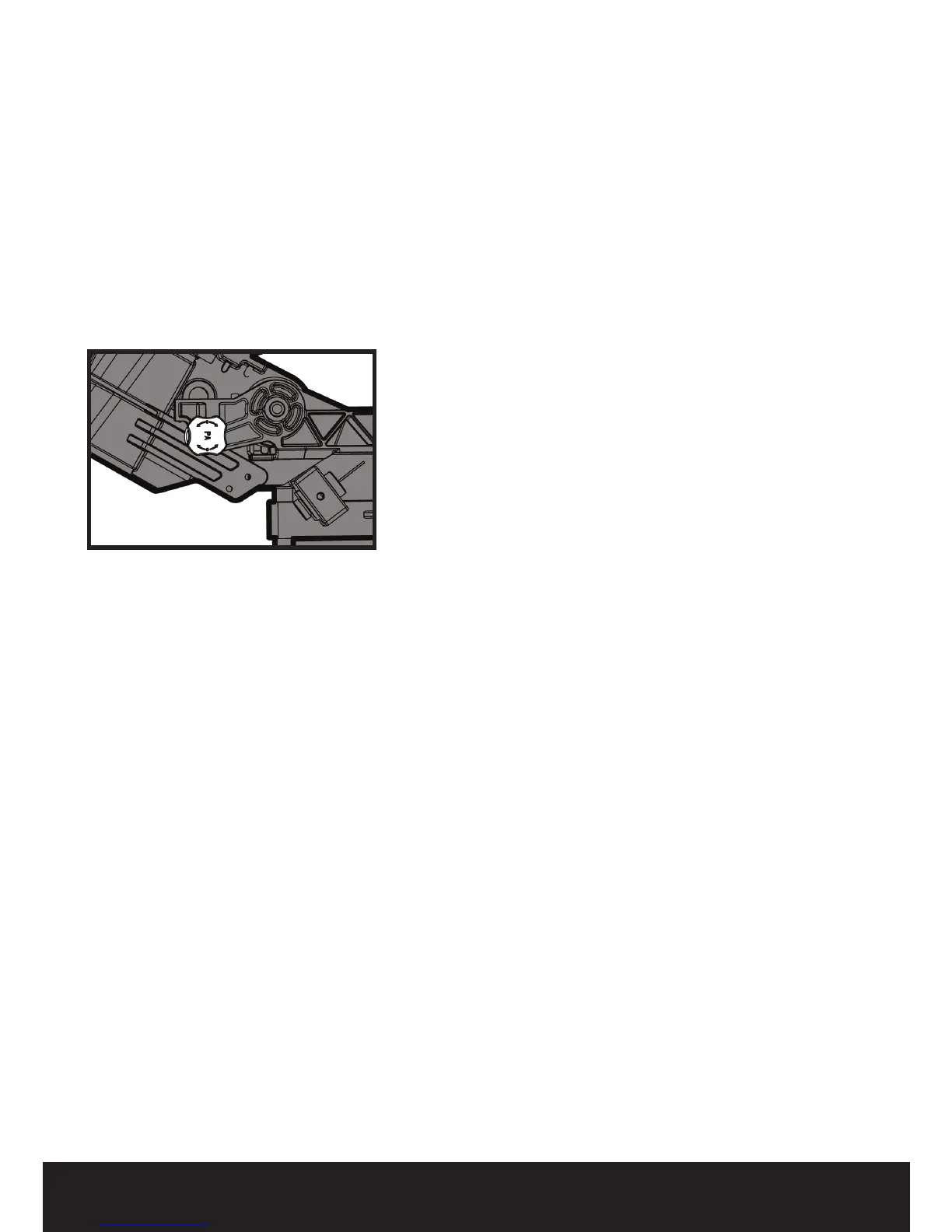

Fig 11
ERBAUER 24V 165MM SINGLE BEVEL MITRE SAW
