2.5 Insert ICs
The pins of the ICs have to bend before you can put them into
their sockets. Use a hard base (e.g. your working desk) and
bend the row of pins slightly, that they get an angle of 90°.

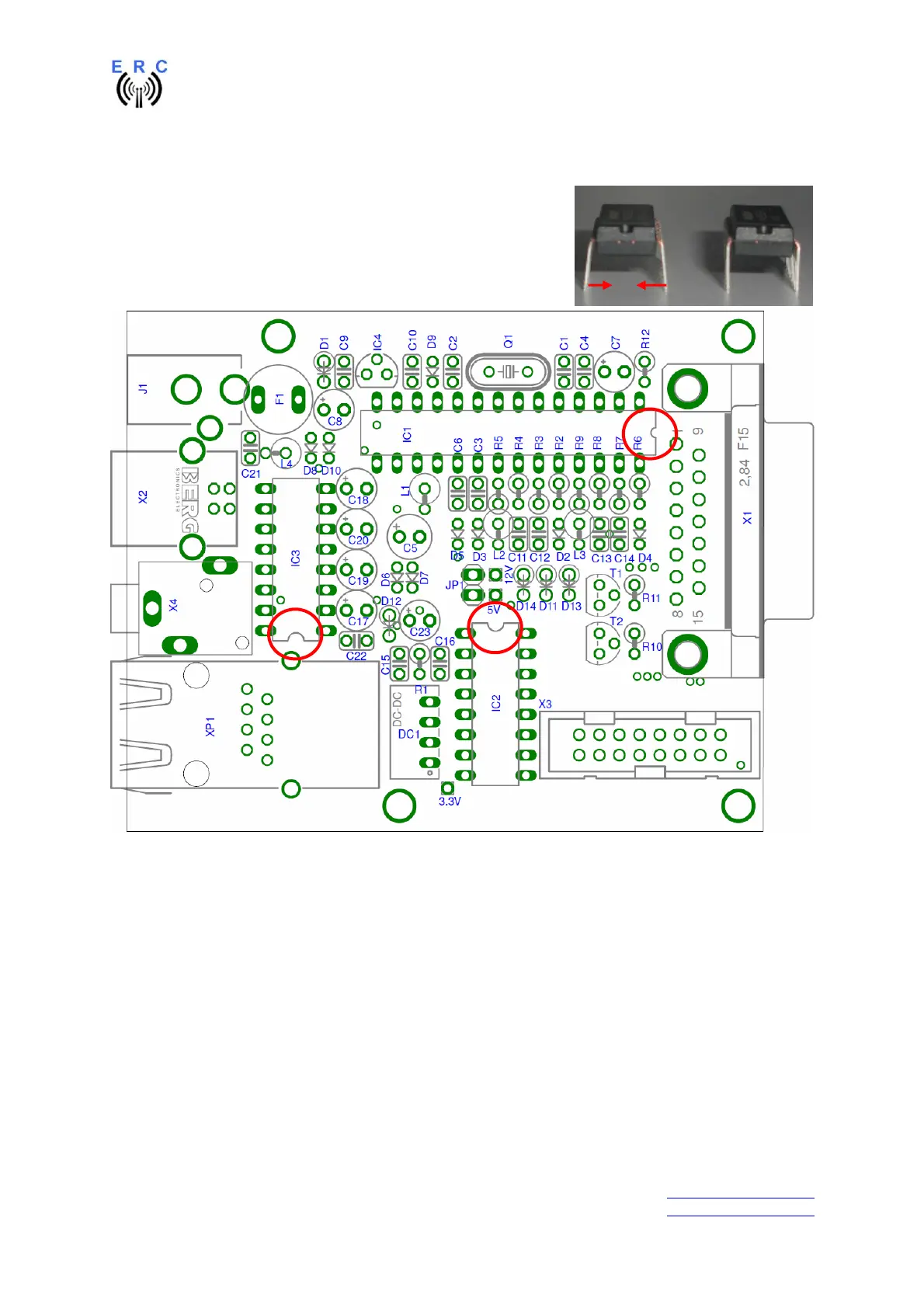

Now insert the ICs and take care about direction of the components
and not to bend any pins while inserting the components into the
sockets.
